GXV670 TAF (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1000001 - GJAH-1019999) IGNITION COIL Parts Diagram

Engine, Made in Japan

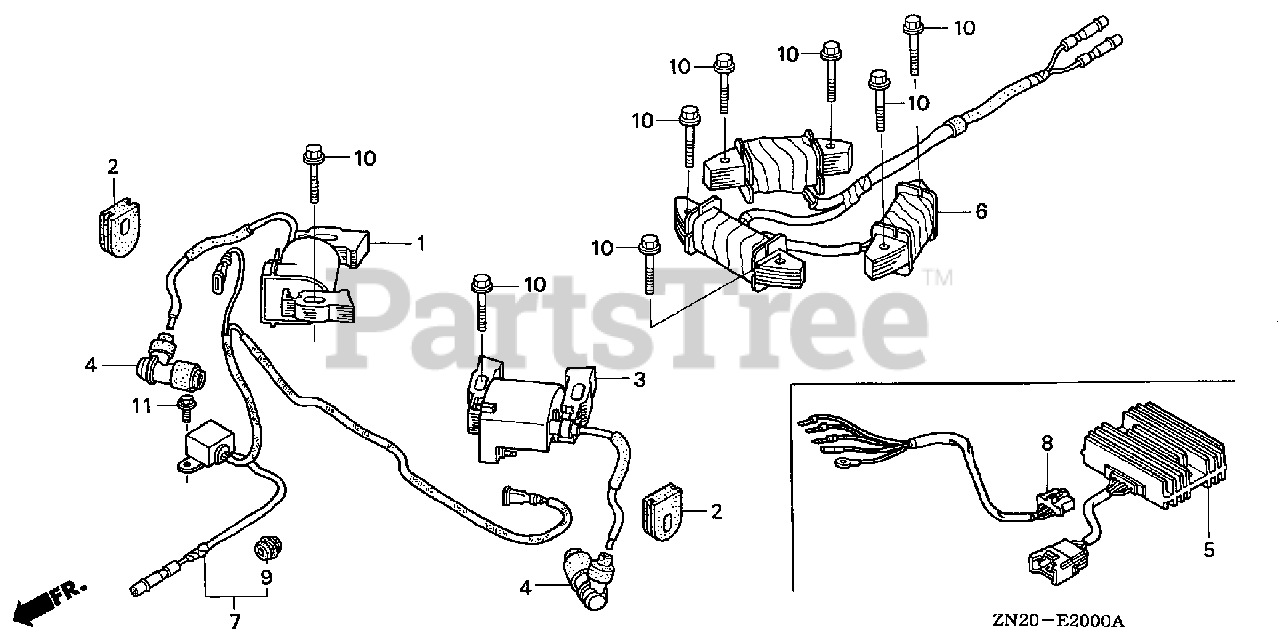

IGNITION COIL Parts Diagram

  • Title

1

Honda 30500-ZJ1-842

COIL ASSY., R. IGNITION

Note: (Honda Code 7120124).

$

$

Not available

2

Honda 30518-ZJ1-000

GROMMET, IGNITION WIRE

Note: (Honda Code 4210027).

$5.99

$

Usually ships in 3-6 days

0

3

Honda 30550-ZJ1-842

COIL ASSY., L. IGNITION

Note: (Honda Code 7125107).

$

$

Not available

4

Honda 30700-ZJ1-841

CAP ASSY., NOISE SUPPRESSOR

Note: (Honda Code 6225346).

$16.99

$

In Stock, only 2 left!

0

5

Honda 31620-ZG5-003

RECTIFIER ASSY., REGULATOR (20A)
(Superseded to 31620-ZG5-033)

Note: (Honda Code 4210225).

$197.99

$

In Stock, only 1 left!

0

6

Honda 31630-ZJ1-801

COIL ASSY., CHARGE (12V/20A)

Note: (Honda Code 4210241).

$

$

Currently unavailable

7

Honda 31740-ZJ1-841

DIODE ASSY., ENGINE STOP

Note: Use up to Engine SN 1000950. (Honda Code 6225429).

$66.99

$

Usually ships in 3-6 days

0

7

Honda 31740-ZJ1-861

DIODE ASSY., ENGINE STOP
(Superseded to 31740-ZJ1-862)

Note: Use from Engine SN 1000951. (Honda Code 6956841).

$61.99

$

Usually ships in 3-6 days

0

8

Honda 32105-ZJ1-800

SUB-WIRE HARNESS ASSY.

Note: (Honda Code 4543930).

$57.99

$

In Stock, only 1 left!

0

9

Honda 63312-ZA7-000

GROMMET, TOOL

Note: (Honda Code 1411164).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 90031-ZE1-000

BOLT, FLANGE (6X32)

Note: (Honda Code 2092971).

$3.99

$

In Stock, only 2 left!

0

11

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: (Honda Code 2581353).

$3.49

$

In Stock, Qty 8

0
