GXV670 TAF (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1000001 - GJAH-1019999) CYLINDER Parts Diagram

Engine, Made in Japan

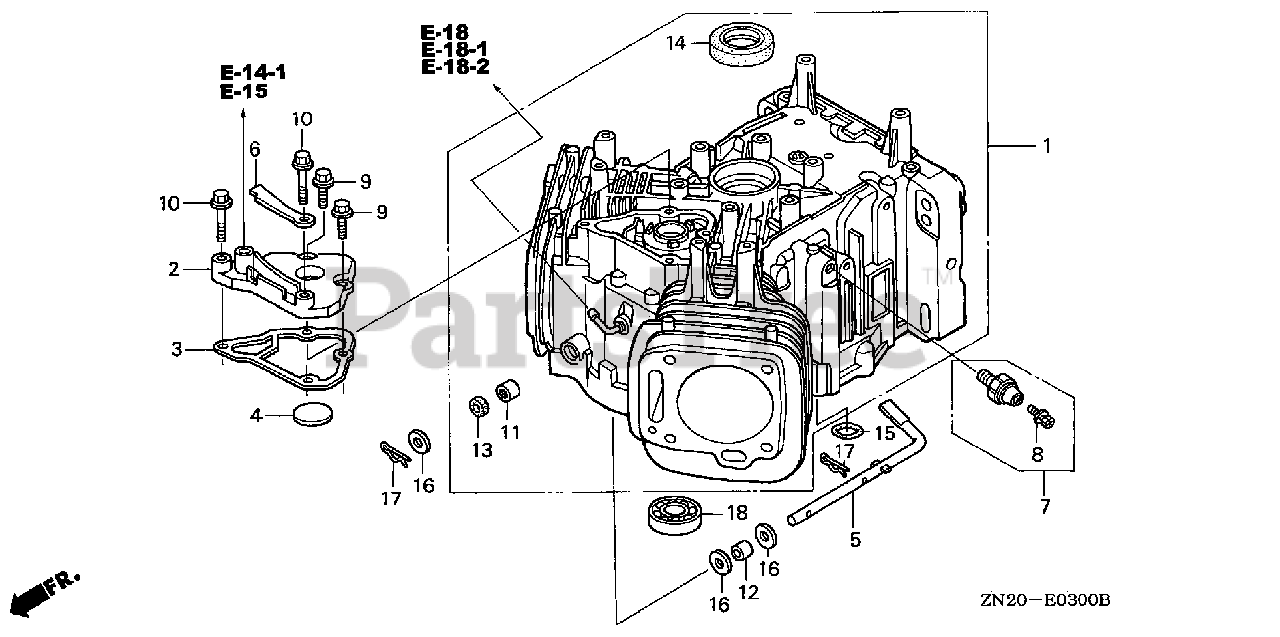

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZN2-010

SEE PART DETAILS - SUP; CYLINDER ASSY.

Note: Use up to Engine SN 1000259.

$

$

Currently unavailable

1

Honda 12000-ZN2-405

SEE PART DETAILS - SUP; CYLINDER ASSY.

Note: Use from Engine SN 1000260.

$1440.99

$

Usually ships in 3-6 days

0

2

Honda 12356-ZJ1-000

COVER, BREATHER

$31.99

$

Usually ships in 3-6 days

0

3

Honda 12358-ZJ1-000

GASKET, BREATHER COVER

$11.99

$

In Stock, only 1 left!

0

4

Honda 12372-ZE2-300

VALVE, BREATHER

$3.99

$

In Stock, Qty 5

0

5

Honda 16541-ZJ1-840

SHAFT, GOVERNOR ARM

$44.99

$

Usually ships in 3-6 days

0

6

Honda 31511-ZJ1-000

CLAMP, WIRE

$4.49

$

Usually ships in 3-6 days

0

7

Honda 37240-ZG3-E01

SWITCH, OIL PRESSURE

$44.99

$

Usually ships in 3-6 days

0

8

Honda 90002-ZG5-004

SCREW-WASHER (4X8)

$9.99

$

Usually ships in 3-6 days

0

9

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90031-ZE1-000

BOLT, FLANGE (6X32) (CT200)

$3.99

$

In Stock, only 2 left!

0

11

Honda 91001-ZJ1-841

BEARING, NEEDLE (8X12.7X11.1)

$8.99

$

Usually ships in 3-6 days

0

12

Honda 91002-ZJ1-841

BEARING, NEEDLE (8X12X10)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

14

Honda 91201-ZJ1-841

OIL SEAL (38X58X9)

$11.99

$

In Stock, only 1 left!

0

15

Honda 91302-MB6-830

O-RING (13X3.0)

$2.49

$

In Stock, only 1 left!

0

16

Honda 94102-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 9

0

17

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

18

Honda 96140-60030-10

BEARING, RADIAL BALL (6003)

$19.99

$

Usually ships in 3-6 days

0
