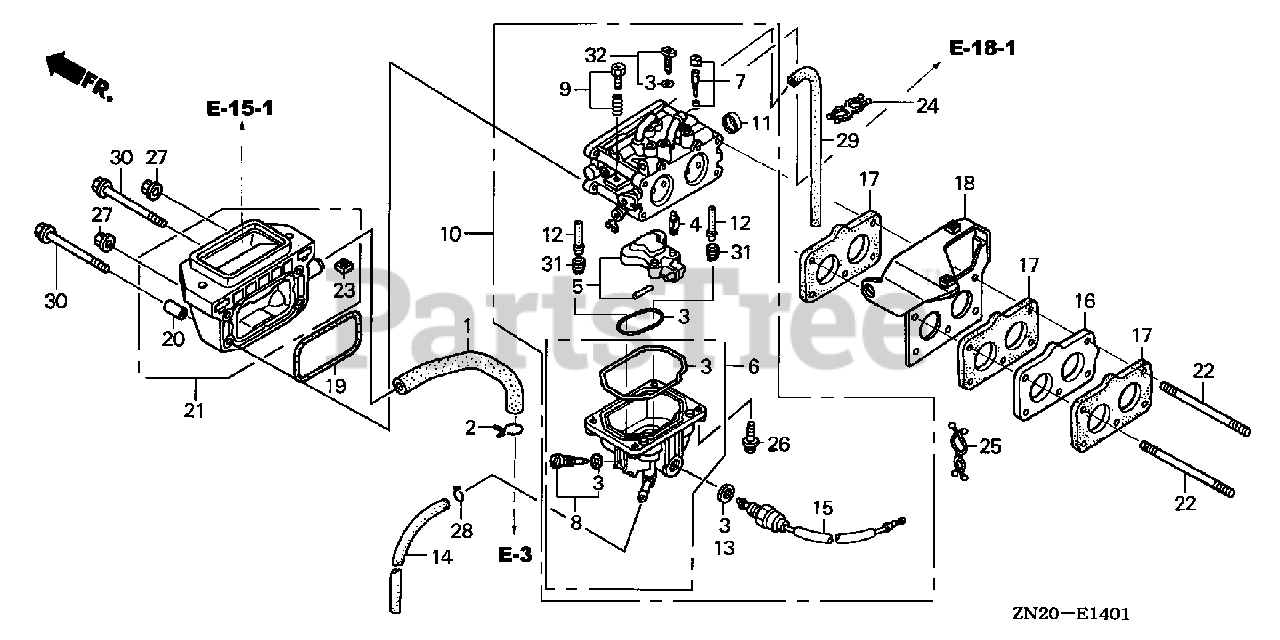

GXV670 TAF (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1000001 - GJAH-1019999) CARBURETOR (2) Parts Diagram

Engine, Made in Japan

CARBURETOR (2) Parts Diagram

  • Title

3

Honda 16010-ZN1-801

GASKET SET
(Superseded to 16010-ZN1-802)

Note: Use from Engine SN BK02A A. (Honda Code 7123524).

$24.99

$

Usually ships in 3-6 days

0

4

Honda 16011-ZN1-801

VALVE SET, FLOAT

Note: Use from Engine SN BK02A A. (Honda Code 7123532).

$33.99

$

Usually ships in 3-6 days

0

5

Honda 16013-ZN1-801

FLOAT SET

Note: Use from Engine SN BK02A A. (Honda Code 7123540).

$27.99

$

Usually ships in 3-6 days

0

6

Honda 16015-ZN1-801

CHAMBER SET, FLOAT

Note: Use from Engine SN BK02A A. (Honda Code 7123557).

$100.99

$

Usually ships in 3-6 days

0

7

Honda 16016-ZN1-801

SCREW SET (PILOT)

Note: Use from Engine SN BK02A A. (Honda Code 7123565).

$12.99

$

Usually ships in 3-6 days

0

8

Honda 16024-124-760

SCREW SET, DRAIN

Note: Use from Engine SN BK02A A. (Honda Code 0640052).

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZN1-801

SCREW SET (TH.STOP)

Note: Use from Engine SN BK02A A. (Honda Code 7123581).

$11.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZN2-801

CARBURETOR ASSY. (BK02A A)

Note: Use from Engine SN 1000599. (Honda Code 7123607).

$313.99

$

Usually ships in 3-6 days

0

11

Honda 16148-141-881

CAP, CHOKE LEVER DUST

Note: Use from Engine SN BK02A A. (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

12

Honda 16166-ZN2-801

NOZZLE, MAIN

Note: Use from Engine SN BK02A A. (Honda Code 7123615).

$21.99

$

In Stock, only 2 left!

0

13

Honda 16178-ZN1-801

WASHER, PLAIN

Note: Use from Engine SN BK02A A. (Honda Code 7123623).

$1.99

$

Usually ships in 3-6 days

0

14

Honda 16198-ZJ1-840

TUBE, DRAIN

Note: Use from Engine SN 1000599. (Honda Code 6224273).

$5.49

$

In Stock, only 2 left!

0

15

Honda 16200-ZN1-801

VALVE ASSY., SOLENOID

Note: Use from Engine SN BK02A A. (Honda Code 7123631).

$62.99

$

In Stock, only 1 left!

0

16

Honda 16211-ZN1-000

INSULATOR, CARBURETOR

Note: Use from Engine SN 1000599. (Honda Code 6247845).

$13.99

$

In Stock, only 1 left!

0

17

Honda 16221-ZN1-000

GASKET, CARBURETOR

Note: Use from Engine SN 1000599. (Honda Code 6247852).

$5.49

$

Usually ships in 3-6 days

0

22

Honda 90041-147-000

BOLT, STUD (6X108)

Note: Use from Engine SN 1000599. (Honda Code 0465476).

$8.99

$

Usually ships in 3-6 days

0

24

Honda 90658-SA0-003

CLIP, WIRE HARNESS

Note: Use from Engine SN 1000599. (Honda Code 1391663).

$12.99

$

Usually ships in 3-6 days

0

25

Honda 91402-ZJ1-841

CLIP, PURSE LOCK

Note: Use from Engine SN 1000599. (Honda Code 6227177).

$3.49

$

Usually ships in 3-6 days

0

26

Honda 93500-04012-0H

SCREW, PAN (4X12)

Note: Use from Engine SN BK02A A. (Honda Code 0285643).

$1.49

$

In Stock, Qty 10

0

28

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use from Engine SN 1000599. (Honda Code 0250647).

$2.49

$

In Stock, Qty 10

0

29

Honda 95005-45001-20M

BULK HOSE, VACUUM (4.5X1000) (4.5X540)

Note: Use from Engine SN 1000599. (Honda Code 4983714).

$51.99

$

Usually ships in 3-6 days

0

30

Honda 95701-06095-00

BOLT, FLANGE (6X95)

Note: Use from Engine SN 1000599. (Honda Code 3062148).

$2.49

$

Usually ships in 3-6 days

0

31

Honda 99101-ZH8-0920

JET, MAIN (#92)

Note: (Optional). Use from Engine SN BK02A A. (Honda Code 5947163).

$7.99

$

In Stock, only 1 left!

0

31

Honda 99101-ZH8-0980

JET, MAIN (#98)

Note: (Optional). Use from Engine SN BK02A A. (Honda Code 6059836).

$7.49

$

In Stock, only 1 left!

0

31

Honda 99101-ZH8-1020

JET, MAIN (#102)

Note: Use from Engine SN BK02A A. (Honda Code 6059851).

$7.49

$

Usually ships in 3-6 days

0

32

Honda 99204-ZE2-0400

JET SET, PILOT (#40)

Note: Use from Engine SN BK02A A. (Honda Code 3683141).

$22.99

$

In Stock, only 2 left!
