GXV670 TAF (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1000001 - GJAH-1019999) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

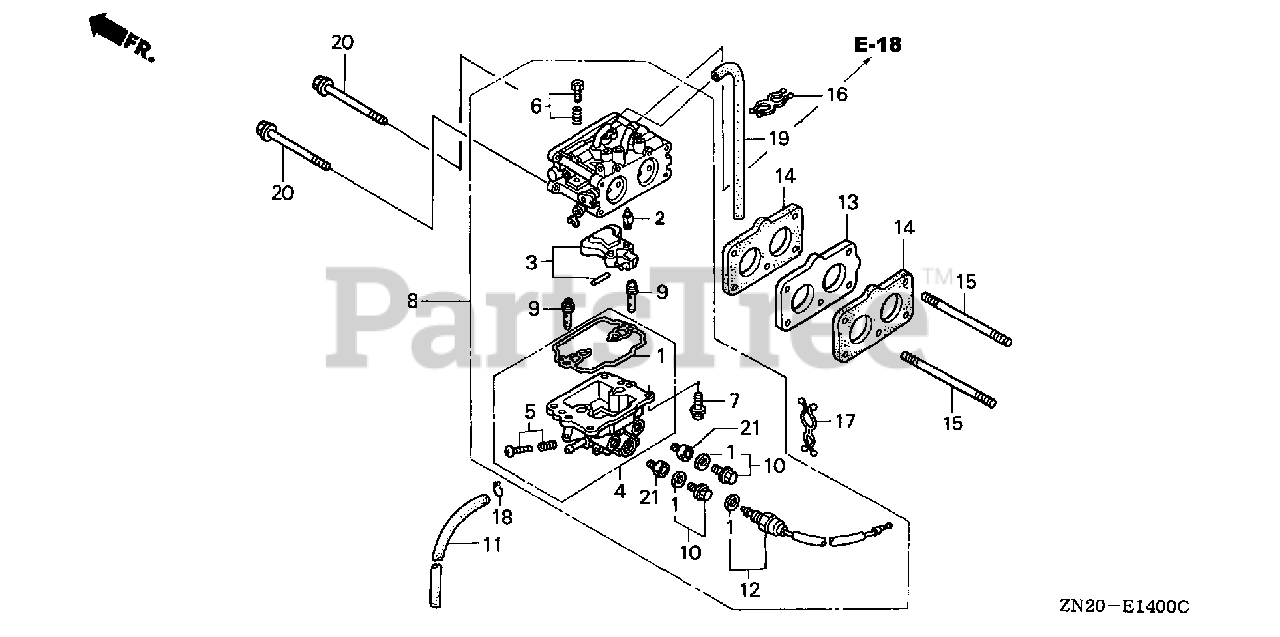

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZN1-003

GASKET SET (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN TB02A A.

$

$

Not available

2

Honda 16011-ZN1-003

VALVE, FLOAT (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN TB02A A.

$21.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZN1-003

FLOAT SET (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN TB02A A.

$

$

Not available

4

Honda 16015-ZN1-003

CHAMBER SET, FLOAT (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN TB02A A.

$117.99

$

Usually ships in 3-6 days

0

5

Honda 16024-ZN1-003

SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN TB02A A.

$10.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZN2-003

SCREW SET (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN TB02A A.

$10.99

$

Usually ships in 3-6 days

0

7

Honda 16081-ZN1-003

SCREW-WASHER (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN TB02A A.

$

$

Not available

8

Honda 16100-ZN2-801

CARBURETOR ASSY. (BK02A A)

Note: Use up to Engine SN 1000598.

$357.99

$

Usually ships in 3-6 days

0

9

Honda 16150-ZN1-003

JET, SLOW (#54) (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN TB02A A.

$

$

Not available

10

Honda 16181-ZN1-003

PLUG SET (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN TB02A A.

$

$

Not available

11

Honda 16198-ZJ1-840

TUBE, DRAIN

Note: Use up to Engine SN 1000598.

$5.99

$

In Stock, only 2 left!

0

12

Honda 16200-ZN1-003

VALVE ASSY., SOLENOID (NIKKI) (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN TB02A A.

$

$

Not available

13

Honda 16211-ZN1-000

INSULATOR, CARBURETOR

Note: Use up to Engine SN 1000598.

$15.99

$

In Stock, only 1 left!

0

14

Honda 16221-ZN1-000

GASKET, CARBURETOR

Note: Use up to Engine SN 1000598.

$5.99

$

In Stock, only 2 left!

0

15

Honda 90041-147-000

BOLT, STUD (6X108)

Note: Use up to Engine SN 1000598.

$9.99

$

Usually ships in 3-6 days

0

16

Honda 90658-SA0-003

CLIP, WIRE HARNESS

Note: Use up to Engine SN 1000598.

$12.99

$

Usually ships in 3-6 days

0

17

Honda 91402-ZJ1-841

CLIP, PURSE LOCK

Note: Use up to Engine SN 1000598.

$3.99

$

Usually ships in 3-6 days

0

18

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 1000598.

$2.49

$

In Stock, Qty 20+

0

19

Honda 95005-45001-20M

BULK HOSE, VACUUM (4.5X1000) (4.5X540)

Note: Use up to Engine SN 1000598.

$53.99

$

Usually ships in 3-6 days

0

20

Honda 95701-06095-00

BOLT, FLANGE (6X95)

Note: Use up to Engine SN 1000598.

$2.99

$

Usually ships in 3-6 days

0

21

Honda 99101-ZN1-1040

JET, MAIN (#104) Use up to Engine SN TB02A A.

$21.99

$

Usually ships in 3-6 days

0

21

Honda 99101-ZN1-1080

JET, MAIN (#108) Use up to Engine SN TB02A A.

$22.99

$

Usually ships in 3-6 days

0

21

Honda 99101-ZN1-1120

JET, MAIN (#112) (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN TB02A A.

$21.99

$

Usually ships in 3-6 days

0
