GXV670 TAF (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1000001 - GJAH-1019999) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

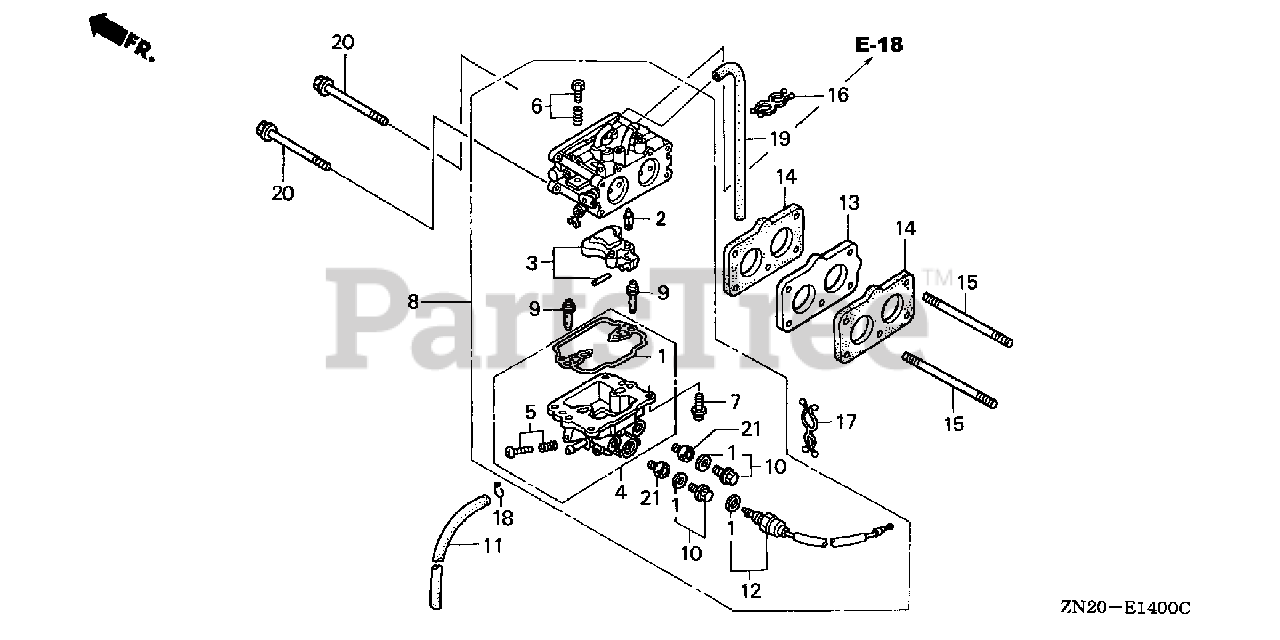

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZN1-003

GASKET SET

Note: Use up to Engine SN TB02A A. (Honda Code 6247696).

$

$

Not available

2

Honda 16011-ZN1-003

VALVE, FLOAT

Note: Use up to Engine SN TB02A A. (Honda Code 6247704).

$

$

Not available

3

Honda 16013-ZN1-003

FLOAT SET

Note: Use up to Engine SN TB02A A. (Honda Code 6247712).

$

$

Not available

4

Honda 16015-ZN1-003

CHAMBER SET, FLOAT

Note: Use up to Engine SN TB02A A. (Honda Code 6247720).

$107.99

$

Usually ships in 3-6 days

0

5

Honda 16024-ZN1-003

SCREW SET, DRAIN

Note: Use up to Engine SN TB02A A. (Honda Code 6247738).

$9.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZN2-003

SCREW SET

Note: Use up to Engine SN TB02A A. (Honda Code 6260368).

$9.49

$

Usually ships in 3-6 days

0

7

Honda 16081-ZN1-003

SCREW-WASHER

Note: Use up to Engine SN TB02A A. (Honda Code 6247753).

$

$

Not available

8

Honda 16100-ZN2-003

CARBURETOR ASSY. (TB02AA)

Note: Use up to Engine SN 1000598. (Honda Code 6260400).

$

$

Currently unavailable

9

Honda 16150-ZN1-003

JET, SLOW (#54)

Note: Use up to Engine SN TB02A A. (Honda Code 6247795).

$

$

Not available

10

Honda 16181-ZN1-003

PLUG SET

Note: Use up to Engine SN TB02A A. (Honda Code 6247811).

$

$

Not available

11

Honda 16198-ZJ1-840

TUBE, DRAIN

Note: Use up to Engine SN 1000598. (Honda Code 6224273).

$5.49

$

In Stock, only 2 left!

0

12

Honda 16200-ZN1-003

VALVE ASSY., SOLENOID

Note: Use up to Engine SN TB02A A. (Honda Code 6247837).

$

$

Not available

13

Honda 16211-ZN1-000

INSULATOR, CARBURETOR

Note: Use up to Engine SN 1000598. (Honda Code 6247845).

$13.99

$

In Stock, only 1 left!

0

14

Honda 16221-ZN1-000

GASKET, CARBURETOR

Note: Use up to Engine SN 1000598. (Honda Code 6247852).

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90041-147-000

BOLT, STUD (6X108)

Note: Use up to Engine SN 1000598. (Honda Code 0465476).

$8.99

$

Usually ships in 3-6 days

0

16

Honda 90658-SA0-003

CLIP, WIRE HARNESS

Note: Use up to Engine SN 1000598. (Honda Code 1391663).

$12.99

$

Usually ships in 3-6 days

0

17

Honda 91402-ZJ1-841

CLIP, PURSE LOCK

Note: Use up to Engine SN 1000598. (Honda Code 6227177).

$3.49

$

Usually ships in 3-6 days

0

18

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 1000598. (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

19

Honda 95005-45001-20M

BULK HOSE, VACUUM (4.5X1000) (4.5X540)

Note: Use up to Engine SN 1000598. (Honda Code 4983714).

$51.99

$

Usually ships in 3-6 days

0

20

Honda 95701-06095-00

BOLT, FLANGE (6X95)

Note: Use up to Engine SN 1000598. (Honda Code 3062148).

$2.49

$

Usually ships in 3-6 days

0

21

Honda 99101-ZN1-1040

JET, MAIN (#104)

Note: (Optional). Use up to Engine SN TB02A A. (Honda Code 6261721).

$19.99

$

Usually ships in 3-6 days

0

21

Honda 99101-ZN1-1080

JET, MAIN (#108)

Note: (Optional). Use up to Engine SN TB02A A. (Honda Code 6261739).

$19.99

$

Usually ships in 3-6 days

0

21

Honda 99101-ZN1-1120

JET, MAIN (#112)

Note: Use up to Engine SN TB02A A. (Honda Code 6261747).

$19.99

$

Usually ships in 3-6 days

0
