GXV670 TAF (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1000001 - GJAH-1019999) AIR CLEANER (TAF) Parts Diagram

Engine, Made in Japan

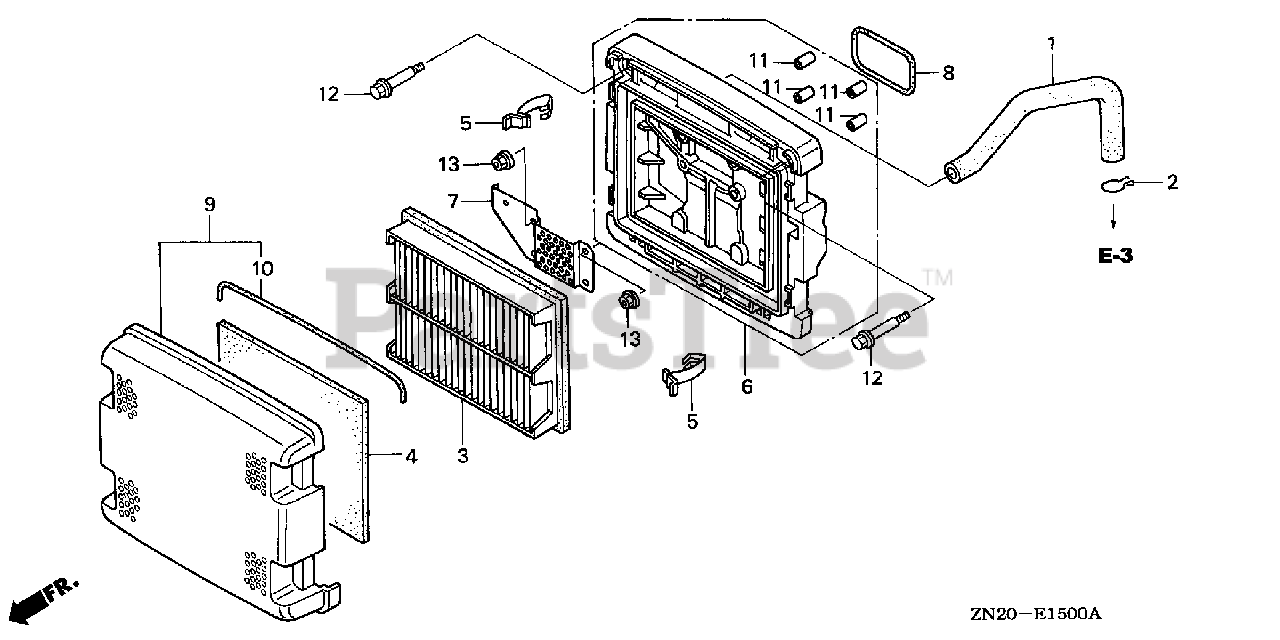

AIR CLEANER (TAF) Parts Diagram

  • Title

1

Honda 12357-ZJ4-830

TUBE, BREATHER

Note: (Honda Code 6260236).

$9.99

$

In Stock, only 1 left!

0

2

Honda 15772-551-000

CLIP, BREATHER TUBE

Note: (Honda Code 0501353).

$2.99

$

In Stock, Qty 5

0

3

Honda 17210-ZJ1-841

ELEMENT, AIR CLEANER
(Superseded to 17210-ZJ1-842)

Note: (Honda Code 6224653).

$43.99

$

In Stock, Qty 5

0

3

Honda 17210-ZJ1-842

ELEMENT, AIR CLEANER

Note: (Honda Code 7120397).

$43.99

$

In Stock, Qty 5

0

4

Honda 17218-ZJ1-840

FILTER (OUTER)

Note: (Honda Code 6224661).

$7.49

$

In Stock, Qty 10

0

5

Honda 17219-ZJ1-840

CLIP, AIR CLEANER

Note: (Honda Code 6224679).

$4.49

$

In Stock, only 3 left!

0

6

Honda 17220-ZN2-000

HOUSING, AIR CLEANER

Note: (Honda Code 6260574).

$94.99

$

Usually ships in 3-6 days

0

7

Honda 17223-ZN2-000

CAP, AIR CLEANER

Note: (Honda Code 6260590).

$12.99

$

Usually ships in 3-6 days

0

8

Honda 17228-ZN1-000

GASKET, AIR CLEANR

Note: (Honda Code 6248025).

$14.99

$

In Stock, only 3 left!

0

9

Honda 17230-ZJ1-840

COVER ASSY., AIR CLEANER
(Superseded to 17230-ZJ1-841)

Note: (Honda Code 6224711).

$56.99

$

In Stock, only 1 left!

0

10

Honda 17233-ZJ1-840

SEAL, AIR CLEANER COVER

Note: (Honda Code 6224737).

$3.49

$

In Stock, only 2 left!

0

11

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER

Note: (Honda Code 6224752).

$2.49

$

In Stock, only 3 left!

0

12

Honda 90003-ZJ1-840

BOLT, SPECIAL (5MM)

Note: (Honda Code 6226971).

$3.49

$

In Stock, only 2 left!

0

13

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
