GXV670 TAE2/A (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1020001 - GJAH-9999999) FUEL PUMP (TAE2) Parts Diagram

Engine, Made in Japan

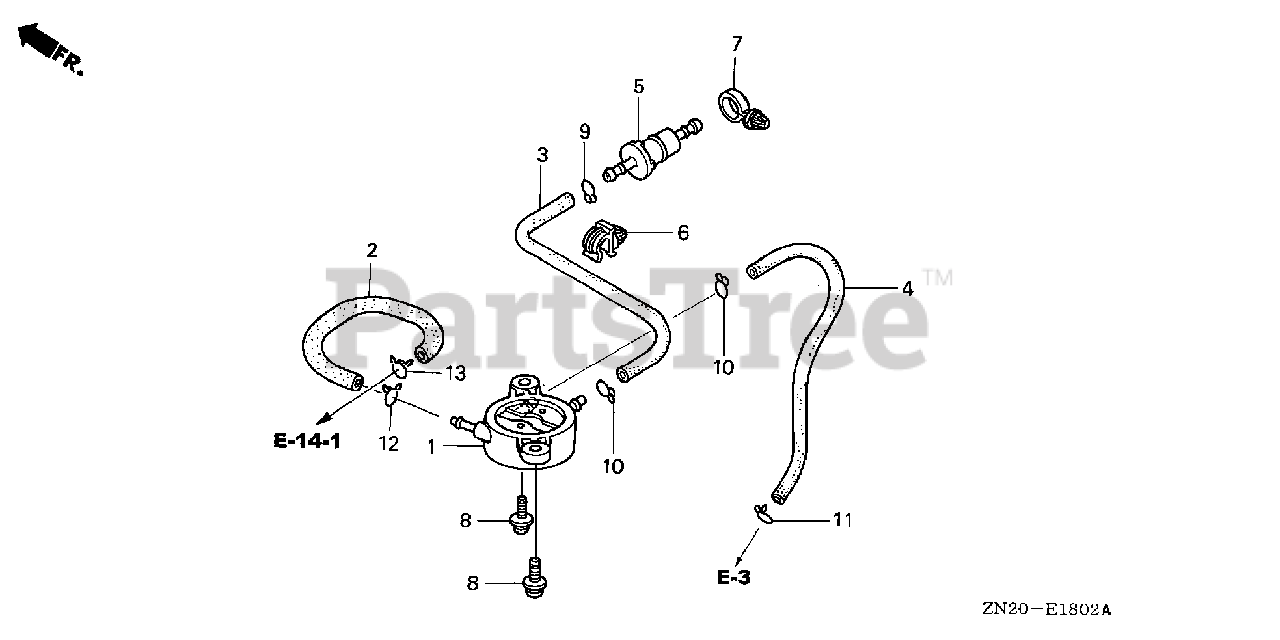

FUEL PUMP (TAE2) Parts Diagram

  • Title

1

Honda 16700-ZL8-013

SEE PART DETAILS - SUP; PUMP ASSY., FUEL
(Superseded to 16700-Z0J-003)

$99.99

$

Usually ships in 3-6 days

0

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$99.99

$

Usually ships in 3-6 days

0

2

Honda 16850-ZN2-U10

TUBE, FUEL

$

$

Not available

3

Honda 16852-ZN2-U10

TUBE B, FUEL

$

$

Not available

4

Honda 16882-ZJ1-840

TUBE, DIAPHRAGM

$6.99

$

In Stock, only 1 left!

0

5

Honda 16910-ZE8-015

SEE PART DETAILS - PRI; STRAINER, FUEL

$15.99

$

In Stock, only 4 left!

0

6

Honda 32660-MJ6-710

CLAMP, WIRE

$4.99

$

In Stock, only 1 left!

0

7

Honda 90617-SA0-003

CLIP, WIRE HARNESS

$5.99

$

Usually ships in 3-6 days

0

8

Honda 93894-06016-00

SCREW-WASHER (6X16)

$0.99

$

Usually ships in 3-6 days

0

9

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

10

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 16

0

11

Honda 95002-50000

CLIP, TUBE (C9)

$1.99

$

In Stock, Qty 20+

0

12

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 5

0

13

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 16

0
