GXV670 TAE2/A (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1020001 - GJAH-9999999) CONTROL Parts Diagram

Engine, Made in Japan

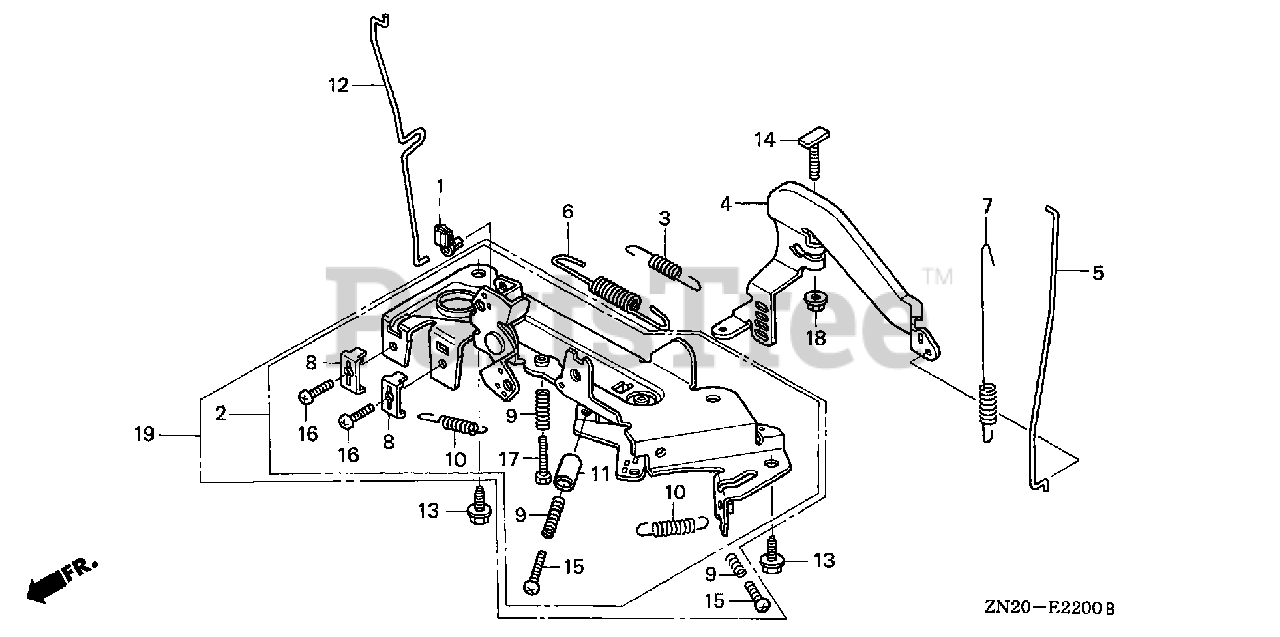

CONTROL Parts Diagram

  • Title

1

Honda 16263-883-W10

JOINT, ROD

$1.49

$

Usually ships in 3-6 days

0

3

Honda 16534-ZN1-000

SEE PART DETAILS - SUP; SPRING, STARTER
(Superseded to 16534-ZN1-010)

Note: Use from Engine SN 1020777 to 1020883.

$2.99

$

In Stock, only 1 left!

0

3

Honda 16534-ZN1-010

SEE PART DETAILS - PRI; SPRING, STARTER

Note: Use from Engine SN 1020777.

$2.99

$

In Stock, only 1 left!

0

3

Honda 16534-ZN2-000

SPRING, STARTER

Note: Use up to Engine SN 1020776.

$

$

Not available

4

Honda 16551-ZJ1-840

ARM, GOVERNOR

$15.99

$

Usually ships in 3-6 days

0

5

Honda 16555-ZN2-000

ROD, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

6

Honda 16561-ZJ1-R50

SPRING, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

7

Honda 16562-ZN2-010

SPRING, THROTTLE RETURN

$3.99

$

In Stock, only 1 left!

0

8

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

Usually ships in 3-6 days

0

9

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

10

Honda 16592-ZJ1-000

SPRING, CABLE RETURN

$2.49

$

In Stock, only 2 left!

0

12

Honda 16611-ZN2-000

ROD, CHOKE CONTROL

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

14

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM

$2.99

$

Usually ships in 3-6 days

0

15

Honda 93500-05035-0A

SCREW, PAN (5X35)

$1.49

$

In Stock, only 3 left!

0

16

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 92301-05025-0A

BOLT, RECESSED (5X25)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 16500-ZN2-U10

CONTROL ASSY.

$89.99

$

Usually ships in 3-6 days

0
