GXV670 R TAE2 (GJAHK) - Honda Engine, Made in Japan (SN: GJAHK-1000001 - GJAHK-9999999) FUEL PUMP (TAE2,TAD2) Parts Diagram

Engine, Made in Japan

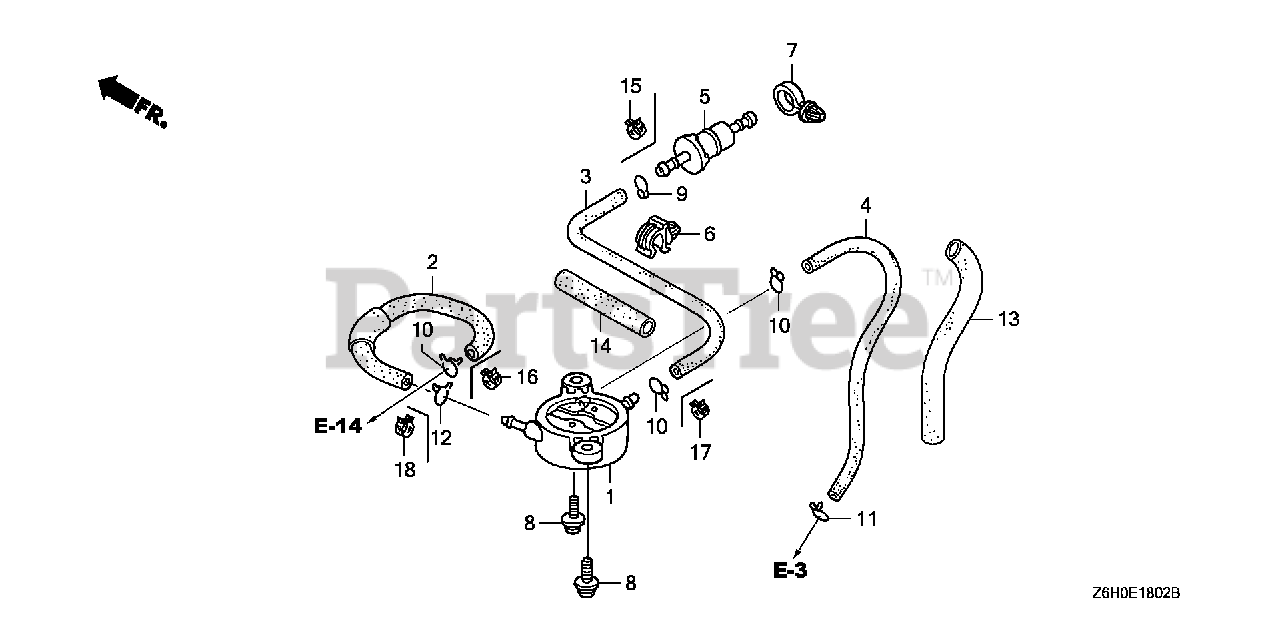

FUEL PUMP (TAE2,TAD2) Parts Diagram

  • Title

1

Honda 16700-ZL8-013

SEE PART DETAILS - SUP; PUMP ASSY., FUEL
(Superseded to 16700-Z0J-003)

$99.99

$

Usually ships in 3-6 days

0

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$99.99

$

Usually ships in 3-6 days

0

2

Honda 16850-Z6H-U12

SEE PART DETAILS - PRI; TUBE, FUEL (FKM)

$23.99

$

Usually ships in 3-6 days

0

3

Honda 16852-Z6F-U11

TUBE B, FUEL (FKM)
(Superseded to 16852-Z6F-U12)

Note: Use up to Engine SN 1002512.

$20.99

$

Usually ships in 3-6 days

0

3

Honda 16852-Z6F-U12

TUBE B, FUEL (FKM)

Note: Use from Engine SN 1002513.

$20.99

$

Usually ships in 3-6 days

0

4

Honda 16882-ZJ1-840

TUBE, DIAPHRAGM

$6.99

$

In Stock, only 1 left!

0

5

Honda 16910-ZE8-015

STRAINER, FUEL

$15.99

$

In Stock, only 4 left!

0

6

Honda 32660-MJ6-710

CLAMP, WIRE

$4.99

$

In Stock, only 1 left!

0

7

Honda 90617-SA0-003

CLIP, WIRE HARNESS

$5.99

$

Usually ships in 3-6 days

0

8

Honda 93894-06016-00

SCREW-WASHER (6X16)

$0.99

$

Usually ships in 3-6 days

0

10

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 16

0

11

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

13

Honda 95003-25003-10M

BULK HOSE, VINYL (9X11X3000) (9X11X150)

$21.99

$

Usually ships in 3-6 days

0

14

Honda 95003-36003-10M

BULK HOSE, VINYL (11X13X3000) (11X13X90)

$

$

Currently unavailable

15

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, only 4 left!

0

16

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.49

$

In Stock, Qty 8

0

18

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

Usually ships in 3-6 days

0
