GXV660 R TAF (GJAPK) - Honda Engine, Made in Japan (SN: GJAPK-1000001 - GJAPK-9999999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

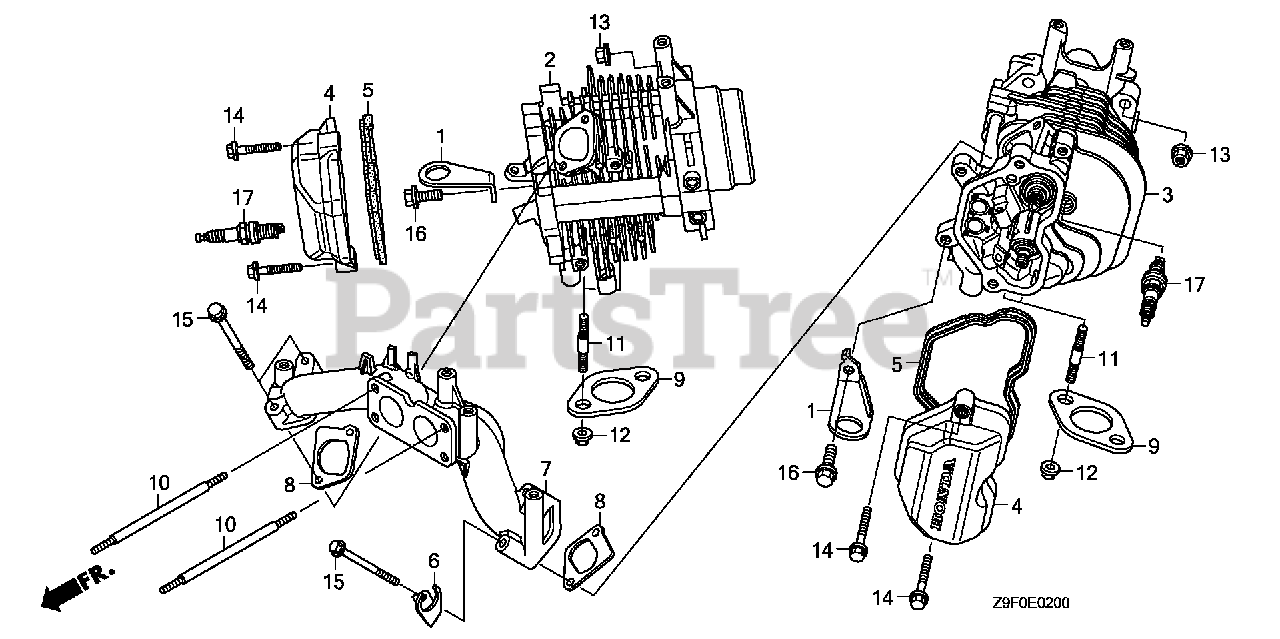

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 11911-Z6L-000

HANGER, ENGINE

$1.99

$

Usually ships in 3-6 days

0

2

Honda 12110-Z6L-305

SEE PART DETAILS - PRI; CYLINDER HEAD

Note: Use up to Engine SN 1001445.

$619.99

$

Usually ships in 3-6 days

0

2

Honda 12110-Z6L-010

CYLINDER HEAD (#1)
(Superseded to 12110-Z6L-307)

Note: Use from Engine SN 1001446.

$610.99

$

Usually ships in 3-6 days

0

3

Honda 12120-Z6L-000

CYLINDER HEAD (#2)
(Superseded to 12120-Z6L-305)

Note: Use up to Engine SN 1001445.

$619.99

$

Usually ships in 3-6 days

0

3

Honda 12120-Z6L-010

CYLINDER HEAD (#2)
(Superseded to 12120-ZEA-000)

Note: Use from Engine SN 1001446.

$391.99

$

Usually ships in 3-6 days

0

4

Honda 12311-Z6L-000

COVER, CYLINDER HEAD

$36.99

$

Usually ships in 3-6 days

0

5

Honda 12312-Z6L-000

GASKET, HEAD COVER

$10.99

$

In Stock, Qty 6

0

6

Honda 16722-Z6L-000

STAY, FUEL TUBE GROMMET

Note: Use up to Engine SN 1001445.

$3.49

$

Usually ships in 3-6 days

0

6

Honda 16722-Z6L-010

STAY, FUEL TUBE GROMMET

Note: Use from Engine SN 1001446.

$3.99

$

Usually ships in 3-6 days

0

7

Honda 17101-Z6M-010

MANIFOLD, IN.

Note: Use from Engine SN 1001446.

$269.99

$

Usually ships in 3-6 days

0

8

Honda 17151-Z6L-305

GASKET, IN. MANIFOLD

Note: Use up to Engine SN 1001445.

$4.99

$

In Stock, only 3 left!

0

8

Honda 17151-Z6L-010

GASKET, IN. MANIFOLD

Note: Use from Engine SN 1001446.

$4.49

$

In Stock, only 4 left!

0

9

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 20+

0

9

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$4.99

$

In Stock, Qty 20+

0

10

Honda 90043-Z6L-000

BOLT, STUD (6X106)

$9.99

$

Usually ships in 3-6 days

0

11

Honda 92900-08022-0E

BOLT, STUD (8X22)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

13

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

14

Honda 95701-06030-00

BOLT, FLANGE (6X30)

$2.49

$

In Stock, only 4 left!

0

15

Honda 95701-06050-00

BOLT, FLANGE (6X50)

Note: Use up to Engine SN 1001445.

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90006-Z6L-000

BOLT, FLANGE (8X55)

Note: Use from Engine SN 1001446.

$3.99

$

Usually ships in 3-6 days

0

16

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 7

0

17

Honda 98079-5587G

SPARK PLUG (ZFR5F)

$3.49

$

In Stock, Qty 20+

0
