GXV660 R TAF (GJAPK) - Honda Engine, Made in Japan (SN: GJAPK-1000001 - GJAPK-9999999) CARBURETOR Parts Diagram

Engine, Made in Japan

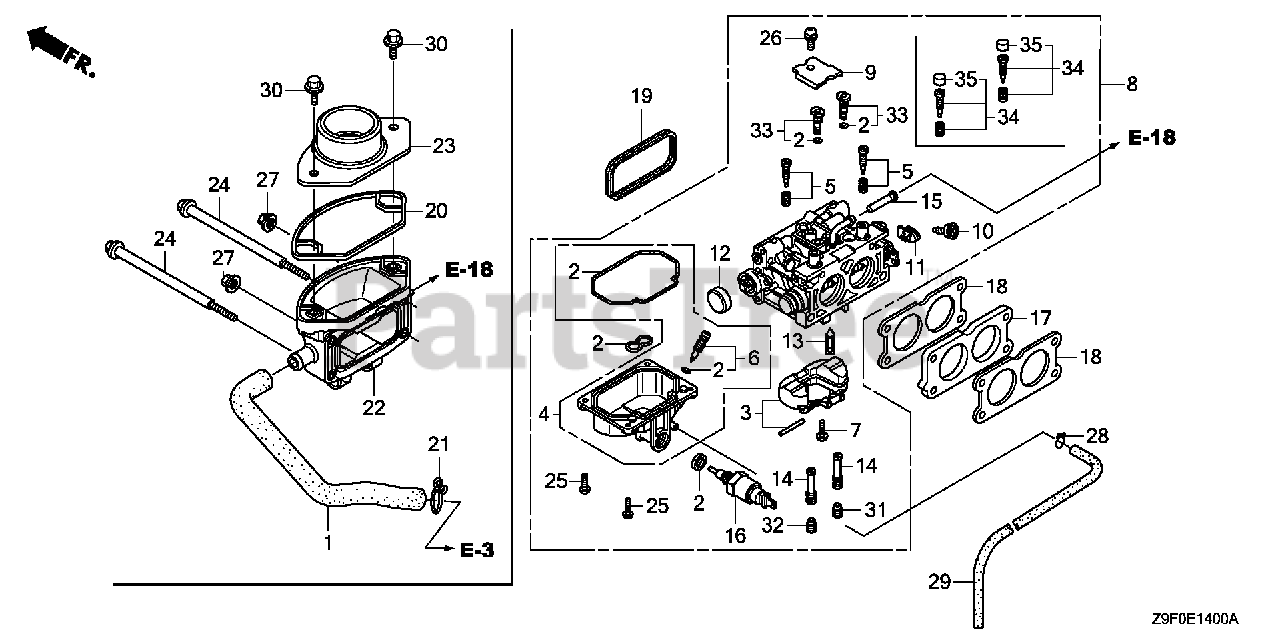

CARBURETOR Parts Diagram

  • Title

2

Honda 16010-Z6L-003

GASKET SET

$22.99

$

In Stock, only 1 left!

0

3

Honda 16013-Z6L-003

FLOAT SET

$28.99

$

In Stock, only 1 left!

0

4

Honda 16015-Z6L-003

CHAMBER SET, FLOAT

$99.99

$

Usually ships in 3-6 days

0

6

Honda 16024-124-760

SCREW SET, DRAIN

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16081-Z6L-003

SCREW, FLOAT

$5.49

$

Usually ships in 3-6 days

0

8

Honda 16100-Z8P-003

CARBURETOR ASSY. (BK06B A)
(Superseded to 16100-Z8P-023)

Note: Use up to Engine SN 1000988.

$351.99

$

In Stock, only 2 left!

0

8

Honda 16100-Z8P-023

CARBURETOR ASSY. (BK06B C)

Note: Use from Engine SN 1000989.

$351.99

$

In Stock, only 2 left!

0

9

Honda 16113-Z6L-003

PLATE

$7.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16126-Z6L-003

ARM, THROTTLE LINKAGE

$9.49

$

In Stock, only 4 left!

0

12

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE DUST

$6.99

$

In Stock, only 1 left!

0

13

Honda 16155-Z6L-003

VALVE, FLOAT

$28.99

$

Usually ships in 3-6 days

0

14

Honda 16166-Z8N-003

NOZZLE, MAIN

$22.99

$

Usually ships in 3-6 days

0

15

Honda 16176-Z2G-D51

SCREEN, FUEL STRAINER

$11.99

$

In Stock, Qty 5

0

16

Honda 16200-Z6L-003

VALVE ASSY., SOLENOID

$62.99

$

In Stock, only 2 left!

0

17

Honda 16211-Z6L-000

INSULATOR, CARBURETOR

$10.99

$

In Stock, only 4 left!

0

18

Honda 16221-Z6L-000

GASKET, CARBURETOR

$4.99

$

In Stock, Qty 10

0

19

Honda 17228-Z6L-000

GASKET, AIR CLEANER

$4.49

$

In Stock, Qty 5

0

25

Honda 93500-04012-0H

SCREW, PAN (4X12)

$1.49

$

In Stock, Qty 10

0

26

Honda 93892-05010-18

SCREW-WASHER (5X10)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

29

Honda 95005-45001-20M

BULK HOSE, VACUUM (4.5X1000) (4.5X350)

$51.99

$

Usually ships in 3-6 days

0

31

Honda 99101-ZH8-0980

JET, MAIN (#98)

Note: (Optional).

$7.99

$

In Stock, only 1 left!

0

31

Honda 99101-ZH8-1020

JET, MAIN (#102)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

31

Honda 99101-ZH8-1100

JET, MAIN (#110)

$8.99

$

Usually ships in 3-6 days

0

32

Honda 99101-ZH8-1020

JET, MAIN (#102)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

32

Honda 99101-ZH8-1080

JET, MAIN (#108)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

32

Honda 99101-ZH8-1150

JET, MAIN (#115)

$8.99

$

Usually ships in 3-6 days

0

33

Honda 99204-ZE2-0400

JET SET, PILOT (#40)

$23.99

$

In Stock, only 2 left!

0

34

Honda 16016-Z6L-801

SCREW SET (CARBURETOR NO.)

Note: Use from Engine SN BK06B B.

$13.99

$

In Stock, only 1 left!

0

35

Honda 16134-Z6L-801

CAP, ADJUSTING SCREW (CARBURETOR NO.)

Note: Use from Engine SN BK06B B.

$3.49

$

Usually ships in 3-6 days

0
