GXV630 RH QYC (GJACH) - Honda Engine, Made in China (SN: GJACH-2000001 - GJACH-9999999) CONTROL Parts Diagram

Engine, Made in China

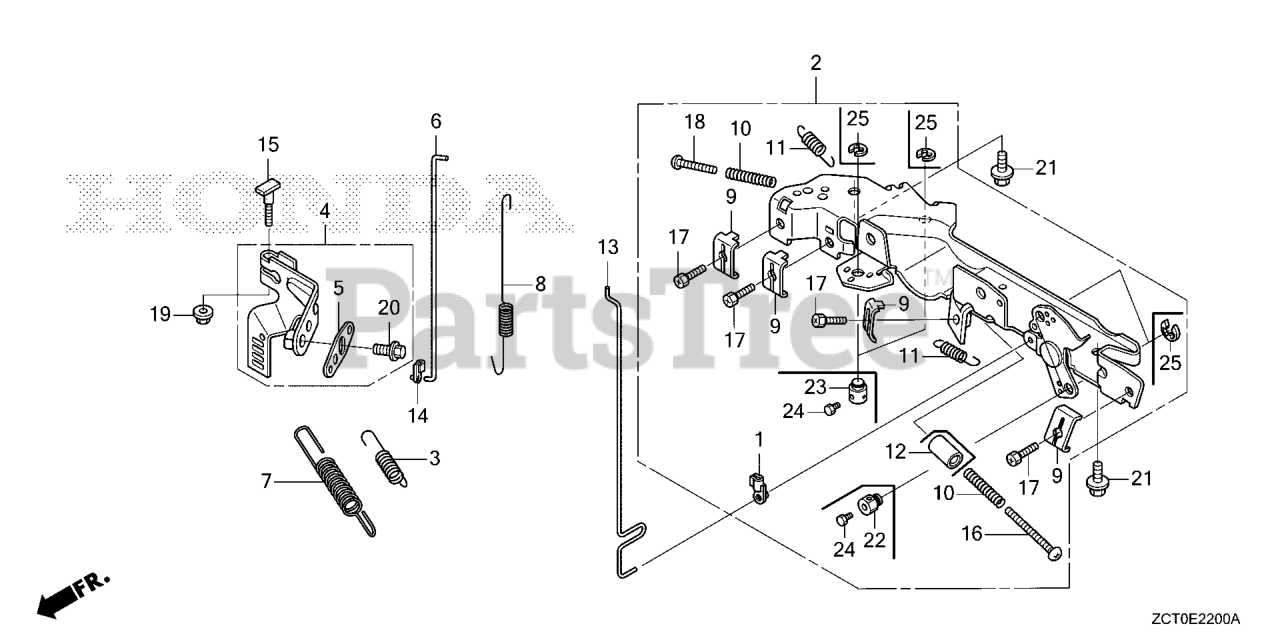

CONTROL Parts Diagram

  • Title

1

Honda 16263-Z0G-010

SEE PART DETAILS - PRI; JOINT, ROD

$3.99

$

Usually ships in 3-6 days

0

2

Honda 16500-Z6L-812

CONTROL ASSY.

$93.99

$

Usually ships in 3-6 days

0

3

Honda 16534-Z6L-000

SPRING, STARTER

$2.99

$

In Stock, only 1 left!

0

4

Honda 16550-Z6L-020

ARM, GOVERNOR

$27.99

$

Usually ships in 3-6 days

0

5

Honda 16553-Z6L-010

SEE PART DETAILS - PRI; ARM, SUB

$3.99

$

Usually ships in 3-6 days

0

6

Honda 16555-Z6M-010

ROD, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

7

Honda 16561-Z6L-000

SPRING, GOVERNOR

$4.49

$

In Stock, only 1 left!

0

8

Honda 16562-Z6M-000

SPRING, THROTTLE RETURN

$7.99

$

Usually ships in 3-6 days

0

9

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$5.49

$

In Stock, only 1 left!

0

10

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$5.49

$

In Stock, Qty 6

0

11

Honda 16592-ZJ1-000

SPRING, CABLE RETURN (Honda Code 4209581).

$2.49

$

In Stock, only 1 left!

0

13

Honda 16611-Z6M-010

ROD, CHOKE CONTROL

$6.49

$

Usually ships in 3-6 days

0

14

Honda 17957-Z6L-003

BUSH, LINKAGE

$1.99

$

In Stock, only 2 left!

0

15

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM (Honda Code 2560852).

$2.99

$

Usually ships in 3-6 days

0

16

Honda 93500-05045-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X45)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 92301-05016-0A

SEE PART DETAILS - PRI; BOLT, RECESSED (5X16) (Honda Code 3509742).

$1.99

$

Usually ships in 3-6 days

0

18

Honda 93500-05030-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X30)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

20

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 7

0

21

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 8

0

22

Honda 16594-883-010

SEE PART DETAILS - PRI; HOLDER, WIRE (Honda Code 2686558).

$9.49

$

In Stock, only 3 left!

0

23

Honda 16617-Z6L-000

HOLDER, CABLE

$7.49

$

Usually ships in 3-6 days

0

24

Honda 92301-04006-0H

BOLT, RECESSED (4X6)

$0.99

$

In Stock, Qty 6

0

25

Honda 94540-05018

E-RING (5MM)

$3.99

$

In Stock, only 4 left!

0
