GXV630 R QWA (GJANK) - Honda Engine, Made in Japan (SN: GJANK-1000001 - GJANK-9999999) CRANKCASE Parts Diagram

Engine, Made in Japan

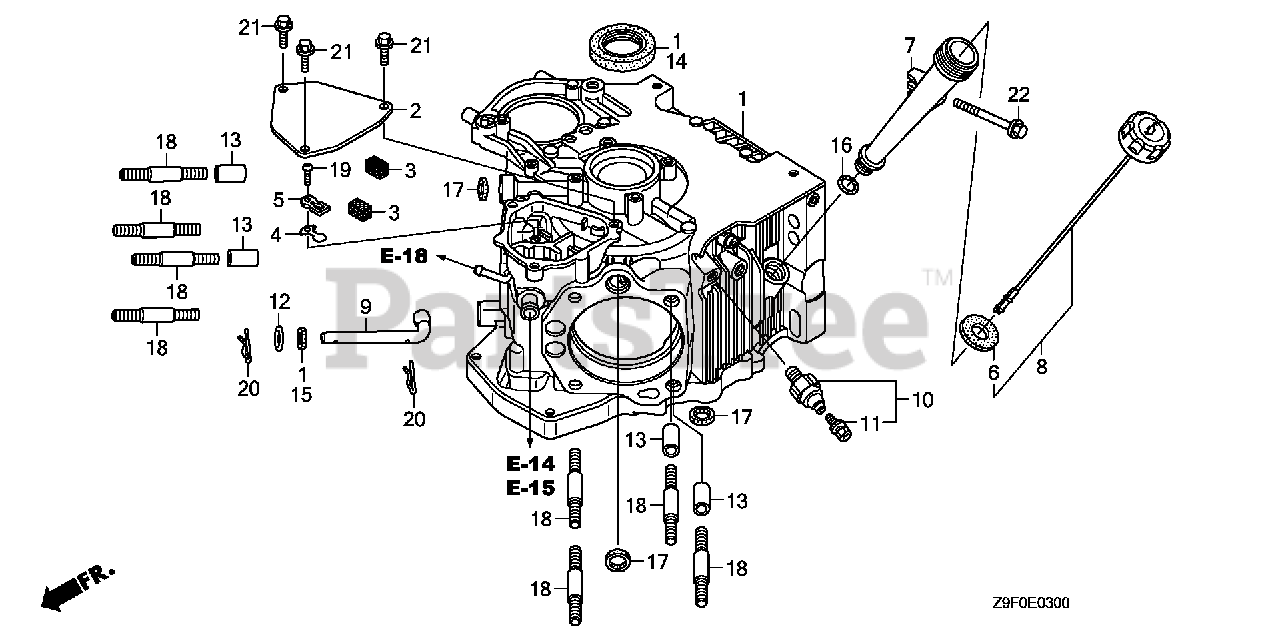

CRANKCASE Parts Diagram

  • Title
1

Honda 11100-Z6M-000

CRANKCASE ASSY.

Note: Use up to Engine SN 1002384.

$1090.99

$

Usually ships in 3-6 days

0

1

Honda 11100-Z6M-010

CRANKCASE ASSY.

Note: Use from Engine SN 1002385.

$1358.99

$

Usually ships in 3-6 days

0

2

Honda 12356-Z6L-000

COVER, BREATHER

$11.99

$

Usually ships in 3-6 days

0

3

Honda 12367-Z6M-000

FILTER, BREATHER

$3.99

$

Usually ships in 3-6 days

0

4

Honda 15571-ZM7-003

VALVE, OIL OUTLET

$3.99

$

Usually ships in 3-6 days

0

5

Honda 15572-Z6L-000

PLATE, STOPPER

$1.99

$

In Stock, only 2 left!

0

6

Honda 15625-Z6L-000

GASKET, OIL FILLER CAP

$3.49

$

Usually ships in 3-6 days

0

7

Honda 15631-Z6M-000

EXTENSION, OIL FILLER

$23.99

$

Usually ships in 3-6 days

0

8

Honda 15650-Z6M-000

GAUGE ASSY., OIL LEVEL

$15.99

$

Usually ships in 3-6 days

0

9

Honda 16541-Z6L-010

SHAFT, GOVERNOR ARM

Note: Use up to Engine SN 1000607.

$33.99

$

Usually ships in 3-6 days

0

9

Honda 16541-Z6L-010

SHAFT, GOVERNOR ARM

Note: Use from Engine SN 1000608.

$33.99

$

Usually ships in 3-6 days

0

10

Honda 37240-ZG5-004

SWITCH, OIL PRESSURE

$44.99

$

Usually ships in 3-6 days

0

11

Honda 90002-ZG5-004

SCREW-WASHER (4X8)

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90404-Z6L-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90709-Z6L-000

PIN, DOWEL (12X20)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 91201-Z6L-003

OIL SEAL (38X58X9)

$8.99

$

In Stock, Qty 11

0

15

Honda 91203-Z6L-003

OIL SEAL (10X16X5)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 91301-Z6L-003

O-RING (14.8X2.4)

$2.99

$

In Stock, only 3 left!

0

17

Honda 91308-Z6L-003

GASKET, OIL PASSAGE

$2.99

$

In Stock, Qty 16

0

18

Honda 92900-10040-0B

BOLT, STUD (10X40)

$11.99

$

Usually ships in 3-6 days

0

19

Honda 93500-03008-0A

SCREW, PAN (3X8)

$1.49

$

In Stock, only 1 left!

0

20

Honda 94251-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 5

0

21

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 8

0

22

Honda 95701-06045-07

BOLT, FLANGE (6X45)

$2.99

$

In Stock, Qty 10

0
