GXV620 QWE (GJAD) - Honda Engine, Made in Japan (SN: GJAD-1000001 - GJAD-1999999) FUEL PUMP Parts Diagram

Engine, Made in Japan

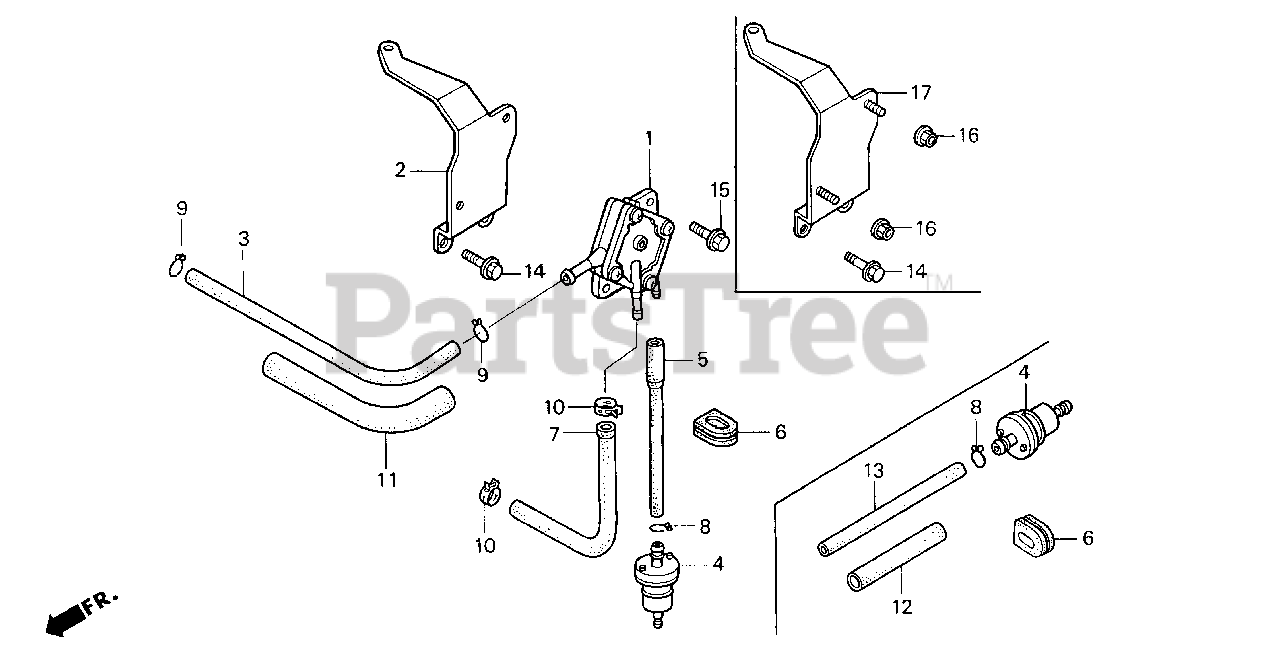

FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-ZJ1-003

PUMP ASSY., FUEL

Note: (Honda Code 4209623).

$117.99

$

Usually ships in 3-6 days

0

2

Honda 16711-ZJ4-000ZB

STAY, FUEL PUMP *R8* (BRIGHT RED)

Note: Use up to Engine SN 1001552. (Honda Code 4329983).

$36.99

$

Usually ships in 3-6 days

0

3

Honda 16851-ZJ4-000

TUBE, FUEL

Note: (Honda Code 4348850).

$

$

Not available

4

Honda 16910-ZE8-015

FILTER, FUEL

Note: (Honda Code 4287553).

$14.99

$

In Stock, Qty 8

0

5

Honda 16852-ZJ4-000

TUBE B, FUEL

Note: (Honda Code 4589644).

$

$

Not available

6

Honda 19905-ZA8-701

GROMMET, WIRE

Note: (Honda Code 1886654).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 95001-55008-40M

BULK HOSE, FUEL (5.5X8000) (5.5X205)

Note: (Honda Code 2449593).

$

$

Currently unavailable

8

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, only 4 left!

0

9

Honda 95002-02100

CLIP, TUBE (B10)

Note: (Honda Code 0250985).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 95002-41050-08

CLIP, TUBE (10.5MM)

Note: (Honda Code 0622357).

$3.49

$

In Stock, Qty 7

0

11

Honda 95003-36003-10M

BULK HOSE, VINYL (11X13X3000) (11X13X160)

Note: (Honda Code 6388953).

$

$

Currently unavailable

14

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: (Honda Code 2581353).

$3.49

$

In Stock, only 2 left!

0

15

Honda 95701-06014-00

BOLT, FLANGE (6X14)

Note: Use up to Engine SN 1001552. (Honda Code 2410884).

$1.49

$

In Stock, Qty 9

0

16

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use from Engine SN 1001553. (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 16711-ZJ4-010ZB

STAY, FUEL PUMP *R8* (BRIGHT RED)

Note: Use from Engine SN 1001553. (Honda Code 5396544).

$

$

Currently unavailable
