GXV620 QWE (GJAD) - Honda Engine, Made in Japan (SN: GJAD-1000001 - GJAD-1999999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

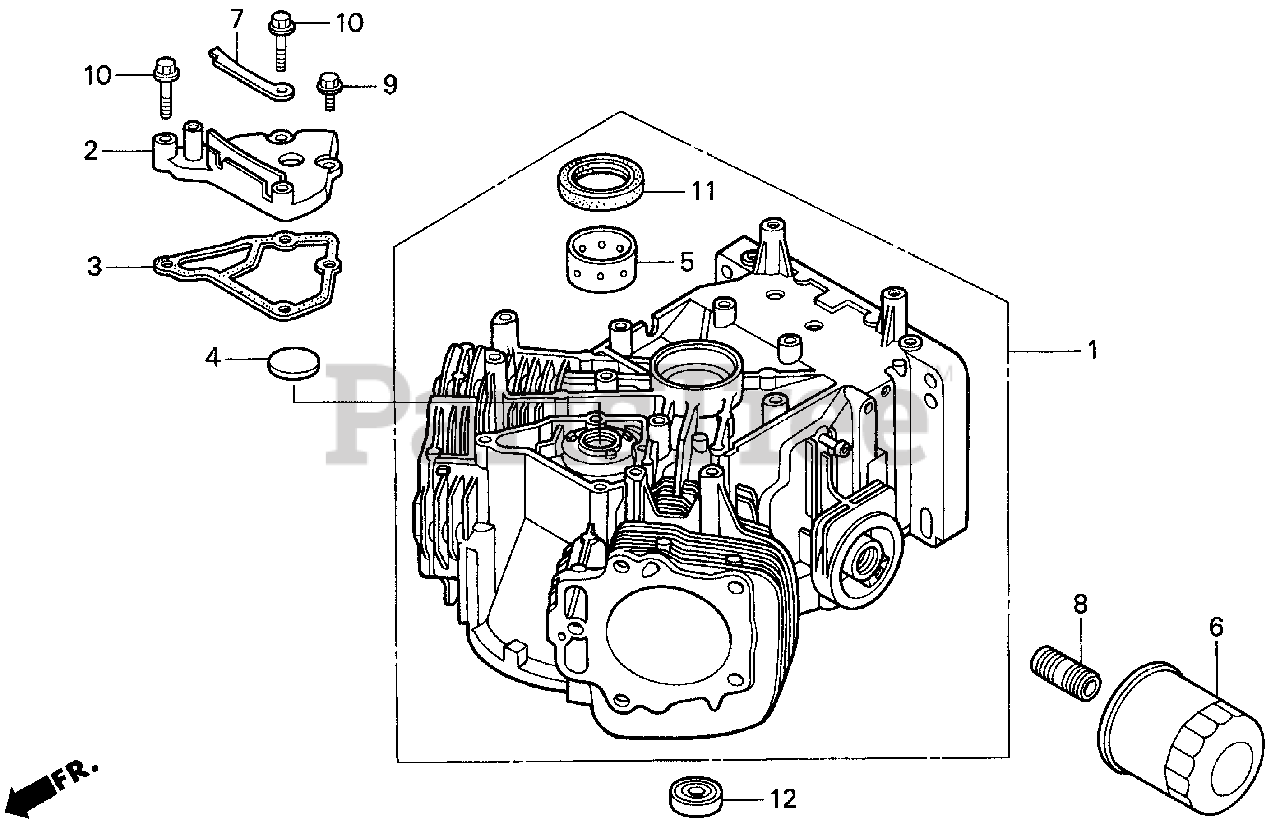

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZJ4-000

CYLINDER ASSY.

Note: (Honda Code 4589636).

$1665.99

$

Usually ships in 3-6 days

0

2

Honda 12356-ZJ1-000

COVER, BREATHER

Note: (Honda Code 4208955).

$31.99

$

Usually ships in 3-6 days

0

3

Honda 12358-ZJ1-000

GASKET, BREATHER COVER

Note: (Honda Code 4265278).

$11.99

$

In Stock, only 1 left!

0

4

Honda 12372-ZE2-300

VALVE, BREATHER

Note: (Honda Code 2061620).

$3.99

$

In Stock, Qty 5

0

5

Honda 13321-ZJ1-000

BEARING A, MAIN (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

Note: (Honda Code 4545836).

$

$

Not available

5

Honda 13322-ZJ1-000

BEARING B, MAIN (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

Note: (Honda Code 4545844).

$

$

Not available

5

Honda 13323-ZJ1-000

BEARING C, MAIN (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

Note: (Honda Code 4545851).

$

$

Not available

6

Honda 15400-PR3-014

FILTER, OIL (TOYO ROKI) (SOLD IN MULTIPLES OF 30)

Note: (Honda Code 6224158).

$

$

Currently unavailable

7

Honda 31511-ZJ1-000

CLAMP, WIRE

Note: (Honda Code 4210217).

$4.49

$

Usually ships in 3-6 days

0

8

Honda 90018-PN3-000

HOLDER, OIL FILTER

Note: (Honda Code 3509528).

$9.99

$

In Stock, only 1 left!

0

9

Honda 90029-888-000

BOLT, FLANGE (6X16)

Note: (Honda Code 0747733).

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90031-ZE1-000

BOLT, FLANGE (6X32)

Note: (Honda Code 2092971).

$3.99

$

In Stock, only 2 left!

0

11

Honda 91201-ZJ1-003

OIL SEAL (38X58X11)

Note: (Honda Code 4210480).

$12.99

$

In Stock, only 2 left!

0

12

Honda 96140-60030-10

BEARING, RADIAL BALL (6003)

Note: (Honda Code 4210571).

$19.99

$

Usually ships in 3-6 days

0
