GXV620 K1 TAE2/A (GJAD) - Honda Engine, Made in Japan (SN: GJAD-2040001 - GJAD-9999999) OIL PAN (2) Parts Diagram

Engine, Made in Japan

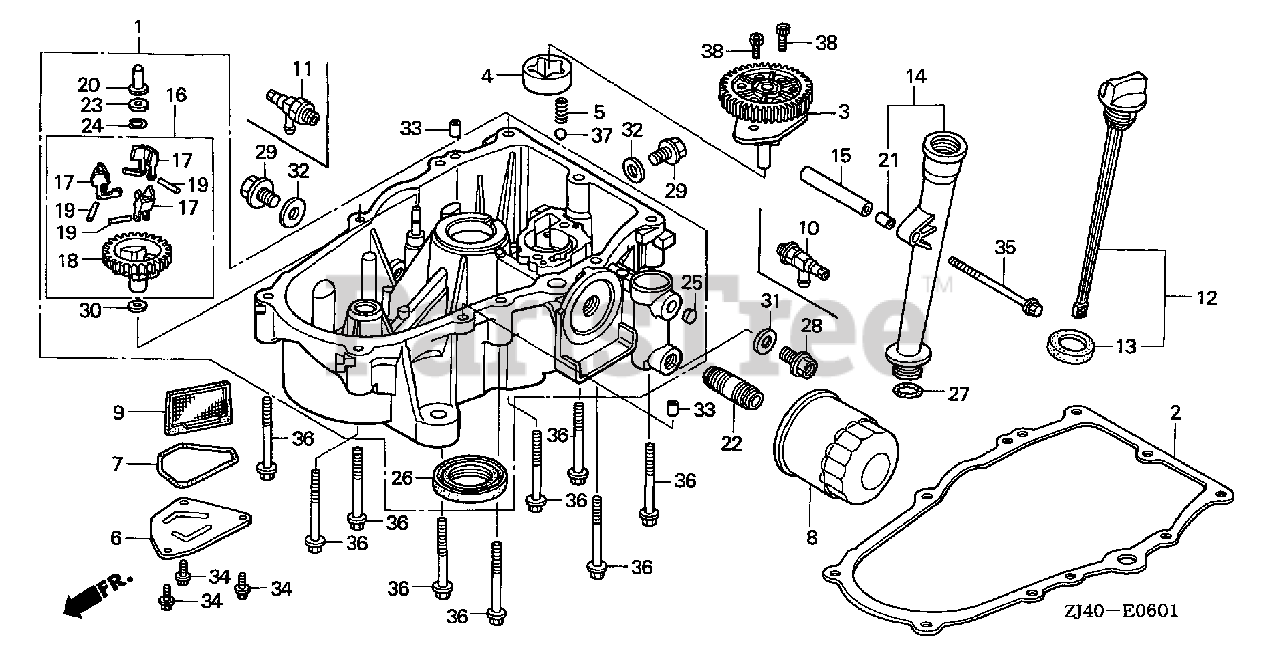

OIL PAN (2) Parts Diagram

  • Title

1

Honda 11300-ZJ4-831

SEE PART DETAILS - SUP; PAN ASSY., OIL

Note: Use up to Engine SN 2045340.

$

$

Currently unavailable

1

Honda 11300-ZJ4-832

SEE PART DETAILS - PRI; PAN ASSY., OIL

$579.99

$

In Stock, only 1 left!

0

2

Honda 11381-ZJ1-840

GASKET, CASE COVER

$24.99

$

In Stock, only 1 left!

0

3

Honda 15120-ZJ1-000

SEE PART DETAILS - SUP; COVER ASSY., OIL PUMP (TWO BOLTS)
(Superseded to 15120-ZJ1-010)

Note: Use up to Engine SN 2045340.

$76.99

$

In Stock, only 1 left!

0

3

Honda 15120-ZJ1-010

SEE PART DETAILS - PRI; COVER ASSY., OIL PUMP (THREE BOLTS)

$76.99

$

In Stock, only 1 left!

0

4

Honda 15124-ZJ1-003

ROTOR, OIL PUMP (OUTER)

$27.99

$

Usually ships in 3-6 days

0

5

Honda 15232-ZJ1-000

SPRING, RELIEF VALVE

$3.49

$

In Stock, only 1 left!

0

6

Honda 15334-ZJ4-000

PLATE, OIL FILTER

$17.99

$

Usually ships in 3-6 days

0

7

Honda 15339-ZJ4-000

O-RING, OIL PLATE

$10.99

$

In Stock, only 4 left!

0

8

Honda 15400-PLM-A01PE

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$14.99

$

In Stock, Qty 15

0

8

Honda 15400-ZJ1-004

SEE PART DETAILS - SUP; FILTER, OIL (TOYO ROKI) (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$14.99

$

In Stock, Qty 15

0

9

Honda 15427-ZG8-000

SCREEN, OIL FILTER

$14.99

$

In Stock, only 2 left!

0

10

Honda 15558-ZJ1-010AH

VALVE, DRAIN (14X1.5)

$29.99

$

Usually ships in 3-6 days

0

11

Honda 15558-772-010

VALVE, OIL SHUT-OFF

$31.99

$

Usually ships in 3-6 days

0

12

Honda 15600-ZJ4-000

CAP ASSY., OIL FILLER

$29.99

$

In Stock, only 1 left!

0

13

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

14

Honda 15630-ZE8-000

EXTENSION, OIL FILLER
(Superseded to 15630-Z5N-800)

$6.49

$

In Stock, only 1 left!

0

15

Honda 15637-ZJ4-830

COLLAR, FILLER SETTING

$8.49

$

Usually ships in 3-6 days

0

16

Honda 16510-ZJ1-840

GOVERNOR ASSY.

$30.99

$

Usually ships in 3-6 days

0

17

Honda 16511-ZJ1-840

WEIGHT, GOVERNOR

$6.99

$

Usually ships in 3-6 days

0

18

Honda 16512-ZJ1-840

HOLDER, GOVERNOR WEIGHT

$

$

Not available

19

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

20

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, only 3 left!

0

21

Honda 17240-ZE6-000

COLLAR, EXTENSION

$4.99

$

In Stock, only 1 left!

0

22

Honda 90018-PN3-000

HOLDER, OIL FILTER

$9.99

$

In Stock, only 1 left!

0

23

Honda 90473-147-000

SEE PART DETAILS - PRI; WASHER (6X16)

$1.99

$

In Stock, only 1 left!

0

24

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

25

Honda 90855-921-300

PLUG, SEALING (10MM)

$3.99

$

In Stock, only 1 left!

0

26

Honda 91202-ZJ1-841

OIL SEAL (38X58X9)

$11.99

$

In Stock, Qty 7

0

27

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.1X2.2)

$2.49

$

In Stock, Qty 12

0

28

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

$5.99

$

Usually ships in 3-6 days

0

29

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

30

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

31

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

32

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 3 left!

0

33

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

34

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 8

0

35

Honda 95701-06100-00

BOLT, FLANGE (6X100)

$3.99

$

Usually ships in 3-6 days

0

36

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 5

0

37

Honda 96211-12000

BALL, STEEL (#12) (3/8)

$1.49

$

Usually ships in 3-6 days

0

38

Honda 96600-06016-00

BOLT, SOCKET (6X16)

Note: Use up to Engine SN 2045340.

$2.49

$

Usually ships in 3-6 days

0

38

Honda 96600-06016-00

BOLT, SOCKET (6X16)

Note: Use from Engine SN 2045341.

$2.49

$

Usually ships in 3-6 days

0
