GXV620 K1 TAE2/A (GJAD) - Honda Engine, Made in Japan (SN: GJAD-2040001 - GJAD-9999999) CARBURETOR (4) Parts Diagram

Engine, Made in Japan

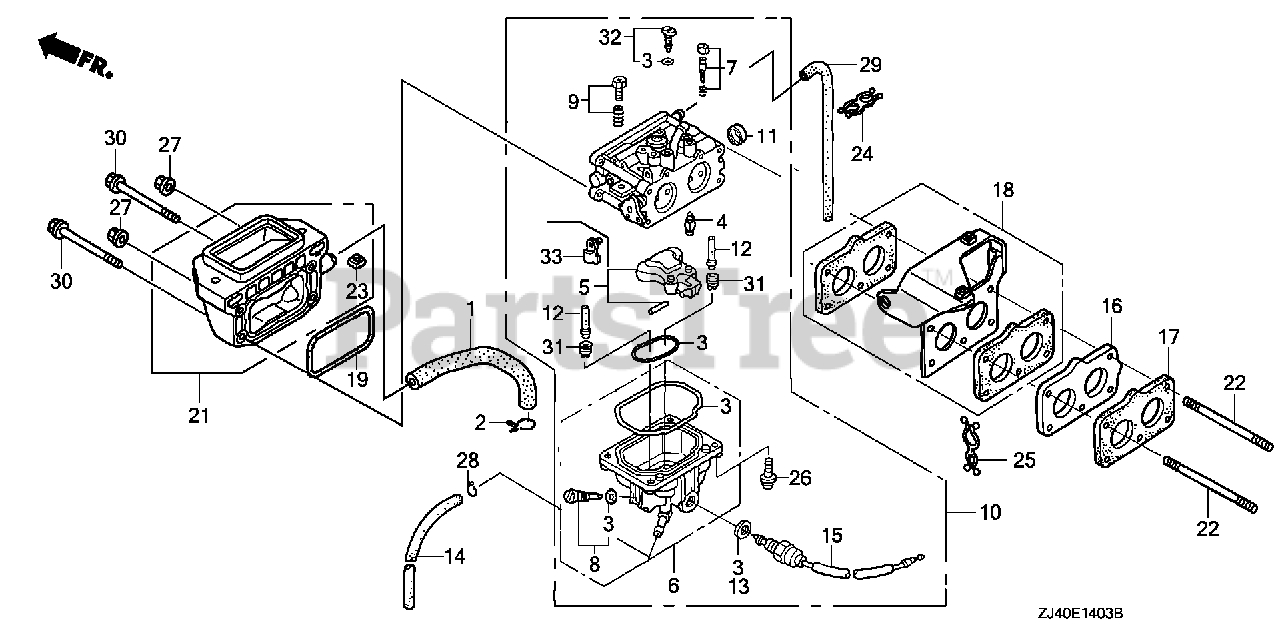

CARBURETOR (4) Parts Diagram

  • Title

1

Honda 12357-ZN2-000

TUBE, BREATHER

$9.49

$

Usually ships in 3-6 days

0

2

Honda 15772-551-000

CLIP, BREATHER TUBE

$2.99

$

In Stock, Qty 5

0

3

Honda 16010-ZN1-801

GASKET SET
(Superseded to 16010-ZN1-802)

$24.99

$

Usually ships in 3-6 days

0

4

Honda 16011-ZN1-801

VALVE SET, FLOAT

$33.99

$

Usually ships in 3-6 days

0

5

Honda 16013-ZN1-801

FLOAT SET

$27.99

$

Usually ships in 3-6 days

0

6

Honda 16015-ZN1-801

CHAMBER SET, FLOAT

$100.99

$

Usually ships in 3-6 days

0

7

Honda 16016-ZN1-801

SCREW SET, PILOT

$12.99

$

Usually ships in 3-6 days

0

8

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZN1-801

SCREW SET, THROTTLE

$11.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZJ6-U11

CARBURETOR ASSY. (BK04A A)

$323.99

$

In Stock, only 1 left!

0

11

Honda 16148-141-881

CAP, CHOKE DUST

$6.49

$

In Stock, only 1 left!

0

12

Honda 16166-ZN2-801

NOZZLE, MAIN

$21.99

$

In Stock, only 2 left!

0

13

Honda 16178-ZN1-801

WASHER, PLAIN

$1.99

$

Usually ships in 3-6 days

0

14

Honda 16198-ZJ1-840

TUBE, DRAIN

$5.49

$

In Stock, only 2 left!

0

15

Honda 16200-ZN1-801

VALVE ASSY., SOLENOID (KEIHIN)

$62.99

$

In Stock, only 1 left!

0

16

Honda 16211-ZJ6-U10

INSULATOR, CARBURETOR

$38.99

$

Usually ships in 3-6 days

0

17

Honda 16221-ZN1-000

GASKET, CARBURETOR

$5.49

$

Usually ships in 3-6 days

0

18

Honda 16710-ZJ6-U10

STAY, FUEL PUMP

$54.99

$

Usually ships in 3-6 days

0

19

Honda 17228-ZN1-000

GASKET, AIR CLEANER

$14.99

$

Usually ships in 3-6 days

0

21

Honda 17410-ZN2-000

ELBOW, AIR CLEANER

$51.99

$

Usually ships in 3-6 days

0

22

Honda 90041-ZG8-000

BOLT, STUD (6X113)

$6.99

$

Usually ships in 3-6 days

0

23

Honda 90314-ZJ1-840

NUT, INSERT (6MM)

$3.49

$

In Stock, only 1 left!

0

24

Honda 90658-SA0-003

CLIP, WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0

25

Honda 91402-ZJ1-841

CLIP, PURSE LOCK

$3.49

$

Usually ships in 3-6 days

0

26

Honda 93500-04012-0H

SCREW, PAN (4X12)

$1.49

$

In Stock, Qty 10

0

27

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

28

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 10

0

29

Honda 95005-45001-20M

BULK HOSE, VACUUM (4.5X1000) (4.5X540)

$51.99

$

Usually ships in 3-6 days

0

30

Honda 95701-06115-00

BOLT, FLANGE (6X115)

$4.99

$

Usually ships in 3-6 days

0

31

Honda 99101-ZH8-0820

SEE PART DETAILS - PRI; JET, MAIN (#82)

$7.99

$

Usually ships in 3-6 days

0

31

Honda 99101-ZH8-0850

SEE PART DETAILS - PRI; JET, MAIN (#85)

$7.99

$

Usually ships in 3-6 days

0

31

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88)

$7.99

$

In Stock, only 1 left!

0

32

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40)

$22.99

$

In Stock, only 2 left!

0

33

Honda 16126-ZJ1-841

ARM, THROTTLE LINKAGE

$8.99

$

Usually ships in 3-6 days

0
