GXV620 K1 QYF4 (GJAD) - Honda Engine, Made in Japan (SN: GJAD-2000001 - GJAD-2039999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

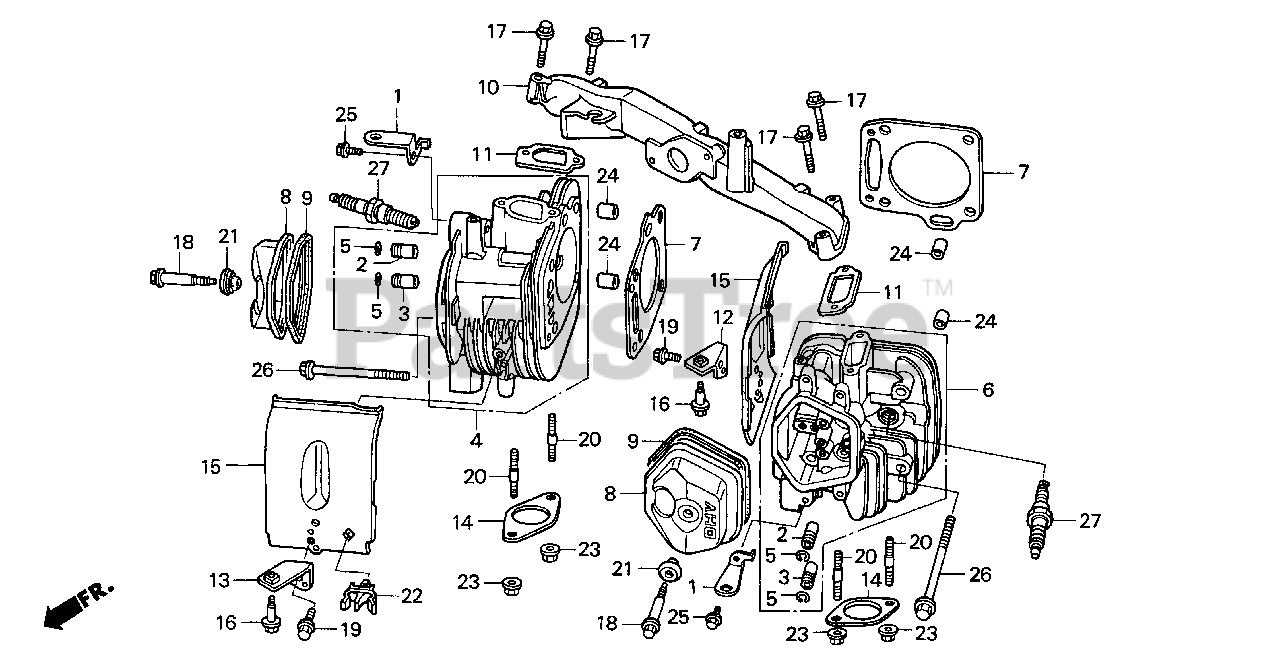

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 11911-ZJ1-840

HANGER, ENGINE

Note: (Honda Code 6223796).

$3.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

GUIDE, VALVE (OS)

Note: (Optional). (Honda Code 4179164).

$

$

Not available

3

Honda 12205-ZJ1-405

GUIDE, EX. VALVE (OS)

Note: (Optional). (Honda Code 6223846).

$13.99

$

Usually ships in 3-6 days

0

4

Honda 12210-ZJ1-840

CYLINDER HEAD (#1)

Note: (Honda Code 6223853).

$

$

Currently unavailable

5

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

Note: (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

6

Honda 12220-ZJ1-840

CYLINDER HEAD (#2)

Note: (Honda Code 6223861).

$

$

Currently unavailable

7

Honda 12251-ZJ1-841

GASKET, CYLINDER HEAD

Note: (Honda Code 6223879).

$20.99

$

Usually ships in 3-6 days

0

8

Honda 12311-ZJ1-840

COVER, HEAD

Note: (Honda Code 6223887).

$38.99

$

In Stock, only 1 left!

0

9

Honda 12391-ZE2-020

GASKET, CYLINDER HEAD COVER

Note: (Honda Code 4300893).

$11.99

$

In Stock, Qty 12

0

10

Honda 17101-ZJ4-830

MANIFOLD, INLET

Note: (Honda Code 6260533).

$265.99

$

Usually ships in 3-6 days

0

11

Honda 17151-ZJ1-841

GASKET, IN. MANIFOLD

Note: (Honda Code 6224646).

$5.49

$

Usually ships in 3-6 days

0

12

Honda 17213-ZJ4-830

BRACKET, R. AIR CLEANER

Note: (Honda Code 6260541).

$4.49

$

Usually ships in 3-6 days

0

13

Honda 17214-ZJ4-830

BRACKET, L. AIR CLEANER

Note: (Honda Code 6260558).

$4.49

$

Usually ships in 3-6 days

0

14

Honda 18333-ZE3-800

GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

Note: (Honda Code 3520194).

$4.99

$

In Stock, Qty 20+

0

14

Honda 18333-ZK6-Y00

GASKET, EX. PIPE (WACKER)

Note: (Honda Code 5164199).

$4.99

$

In Stock, Qty 20+

0

15

Honda 19682-ZJ1-840

SHROUD, HEAD

Note: (Honda Code 6225270).

$12.99

$

Usually ships in 3-6 days

0

16

Honda 90002-ZJ1-840

BOLT, FLANGE (6MM)

Note: (Honda Code 6261648).

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90011-ZJ1-841

BOLT, SOCKET (8X45)

Note: (Honda Code 6226989).

$4.99

$

In Stock, only 2 left!

0

18

Honda 90014-ZE2-000

BOLT, HEAD COVER

Note: (Honda Code 2027035).

$6.99

$

In Stock, only 1 left!

0

19

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

20

Honda 90018-ZJ1-840

BOLT, STUD (8X22)

Note: (Honda Code 6226997).

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90441-ZE2-010

WASHER, HEAD COVER

Note: (Honda Code 2293918).

$6.49

$

In Stock, Qty 6

0

22

Honda 90684-SB3-003

CLIP, FUEL TUBE

Note: (Honda Code 2663425).

$8.49

$

Usually ships in 3-6 days

0

23

Honda 94050-08000

NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 11

0

24

Honda 94301-12200

PIN A, DOWEL (12X20)

Note: (Honda Code 0165324).

$3.49

$

Usually ships in 3-6 days

0

25

Honda 95701-08020-00

BOLT, FLANGE (8X20)

Note: (Honda Code 2552552).

$2.49

$

In Stock, only 1 left!

0

26

Honda 95701-10080-00

BOLT, FLANGE (10X80)

Note: (Honda Code 2545341).

$4.49

$

In Stock, only 1 left!

0

27

Honda 98079-5585V

SPARK PLUG (J16CR-U)

Note: (Honda Code 6227250).

$10.99

$

Usually ships in 3-6 days

0

27

Honda 98079-5587V

SPARK PLUG (ZGR5A) (NGK)

Note: (Honda Code 6227268).

$3.49

$

In Stock, Qty 6

0
