GXV620 K1 QYF4 (GJAD) - Honda Engine, Made in Japan (SN: GJAD-2000001 - GJAD-2039999) CARBURETOR (2) Parts Diagram

Engine, Made in Japan

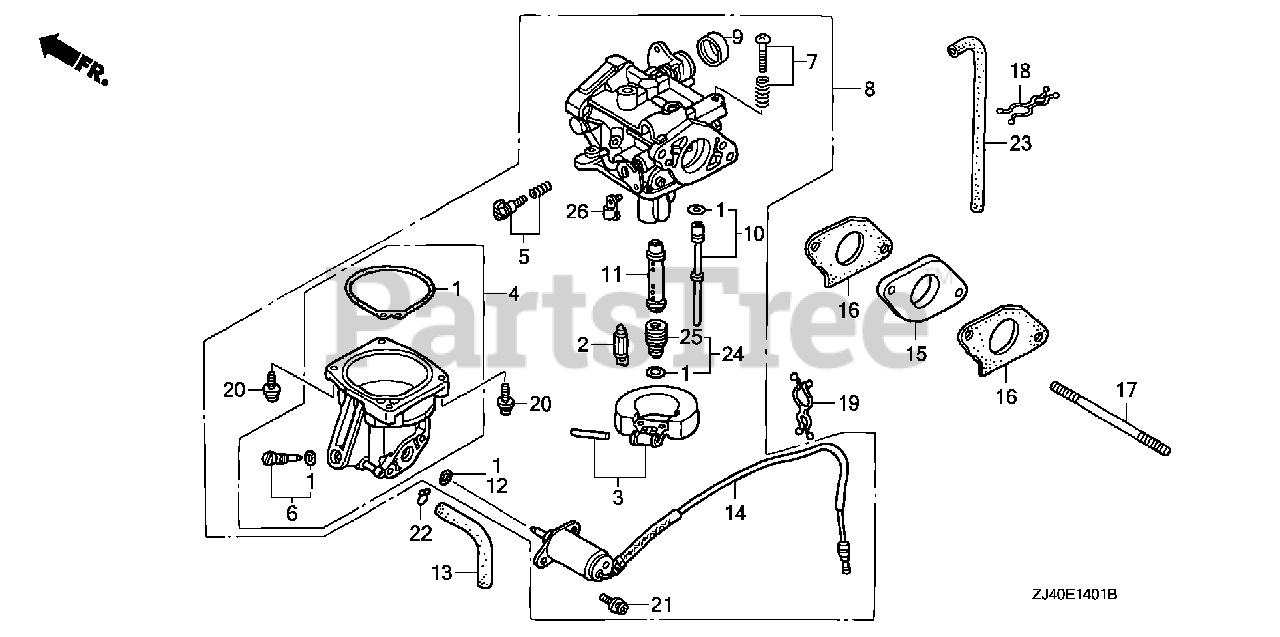

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 16010-ZG8-000

GASKET SET

$22.99

$

In Stock, Qty 7

0

2

Honda 16011-KCK-910

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$43.99

$

In Stock, only 3 left!

0

3

Honda 16013-ZV4-005

FLOAT SET

$40.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZJ1-841

CHAMBER SET, FLOAT

$98.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZJ6-831

SCREW SET

$9.99

$

In Stock, only 1 left!

0

6

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$14.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZJ6-831

SCREW SET

$12.99

$

Usually ships in 3-6 days

0

8

Honda 16100-ZJ6-831

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BG26B A)

$

$

Currently unavailable

8

Honda 16100-ZJ6-832

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BG26B B)

$244.99

$

In Stock, only 1 left!

0

9

Honda 16148-141-881

CAP, CHOKE DUST

$6.49

$

In Stock, only 1 left!

0

10

Honda 16150-ZJ4-831

JET SET (#42)

$37.99

$

Usually ships in 3-6 days

0

11

Honda 16166-ZJ6-831

NOZZLE, MAIN

$25.99

$

Usually ships in 3-6 days

0

12

Honda 16178-548-004

O-RING (5.8X1.9)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 16198-ZJ1-840

TUBE, DRAIN

$5.49

$

In Stock, only 2 left!

0

14

Honda 16200-ZJ1-841

SEE PART DETAILS - SUP; VALVE ASSY., SOLENOID
(Superseded to 16200-ZJ1-842)

$60.99

$

In Stock, only 1 left!

0

14

Honda 16200-ZJ1-842

SEE PART DETAILS - PRI; VALVE ASSY., SOLENOID

$60.99

$

In Stock, only 1 left!

0

15

Honda 16211-ZJ1-000

INSULATOR, CARBURETOR

$20.99

$

Usually ships in 3-6 days

0

16

Honda 16221-ZG8-000

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 20+

0

17

Honda 90017-ZJ4-830

BOLT, STUD (6X100)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90658-SA0-003

CLIP, WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0

19

Honda 91402-ZJ1-841

CLIP, PURSE LOCK

$3.49

$

Usually ships in 3-6 days

0

20

Honda 93892-04014-08

SCREW-WASHER (4X14)

$1.49

$

In Stock, only 2 left!

0

21

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 3 left!

0

22

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

23

Honda 95005-45001-20M

BULK HOSE, VACUUM (4.5X1000) (4.5X540)

$51.99

$

Usually ships in 3-6 days

0

24

Honda 99201-ZG8-1100

JET SET, MAIN (#110)

$19.99

$

Usually ships in 3-6 days

0

24

Honda 99201-ZG8-1120

JET SET, MAIN (#112)

$19.99

$

Usually ships in 3-6 days

0

24

Honda 99201-ZG8-1150

JET SET, MAIN (#115)

$15.99

$

Usually ships in 3-6 days

0

26

Honda 16126-ZJ1-841

ARM, THROTTLE LINKAGE

$8.99

$

Usually ships in 3-6 days

0
