GXV620 K1 QAF (GJAD) - Honda Engine, Made in Japan (SN: GJAD-2000001 - GJAD-2039999) IGNITION COIL (2) Parts Diagram

Engine, Made in Japan

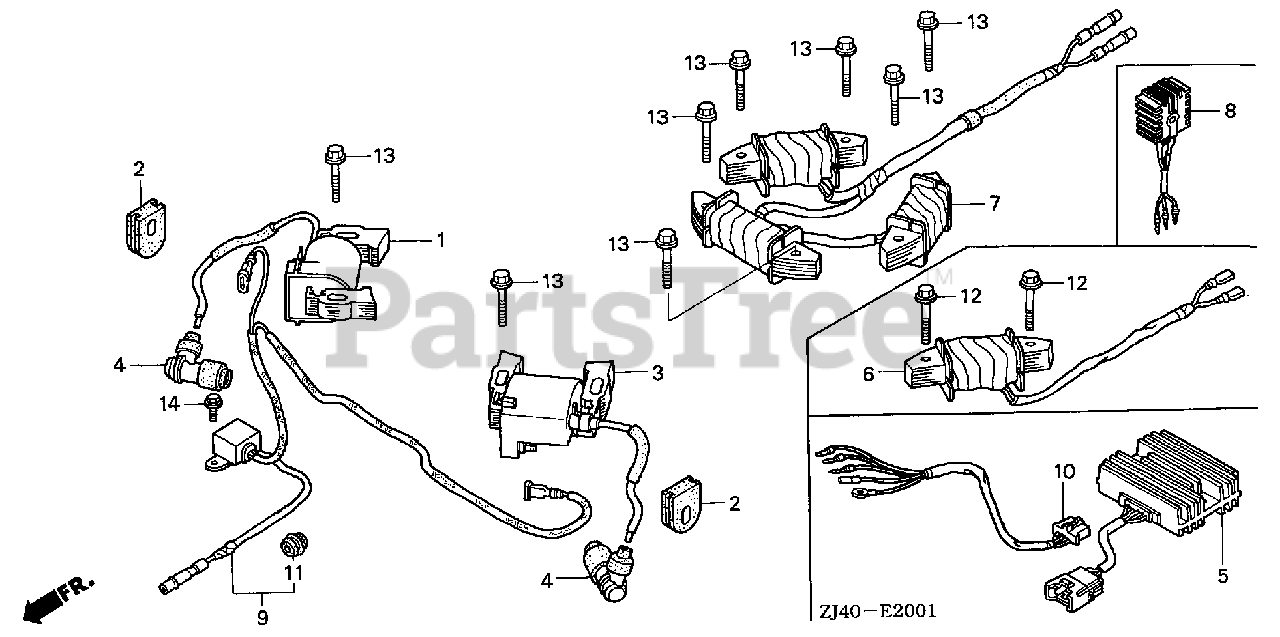

IGNITION COIL (2) Parts Diagram

  • Title
1

Honda 30500-ZJ1-842

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

Note: Use up to Engine SN 2029082.

$

$

Not available

1

Honda 30500-ZJ1-844

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

$

$

Not available

1

Honda 30500-ZJ1-845

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$74.99

$

In Stock, only 2 left!

0

2

Honda 30518-ZJ1-000

GROMMET, IGNITION WIRE

$5.99

$

Usually ships in 3-6 days

0

3

Honda 30550-ZJ1-844

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30550-ZJ1-845)

$74.99

$

In Stock, only 2 left!

0

3

Honda 30550-ZJ1-845

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$74.99

$

In Stock, only 2 left!

0

4

Honda 30700-ZJ1-841

CAP ASSY., NOISE SUPPRESSOR

$16.99

$

In Stock, only 2 left!

0

5

Honda 31620-ZG5-013

SEE PART DETAILS - SUP; RECTIFIER ASSY., REGULATOR (20A)
(Superseded to 31620-ZG5-033)

$197.99

$

In Stock, only 3 left!

0

5

Honda 31620-ZG5-023

SEE PART DETAILS - SUP; RECTIFIER ASSY., REGULATOR (20A)

$

$

Not available

5

Honda 31620-ZG5-033

SEE PART DETAILS - PRI; RECTIFIER ASSY., REGULATOR (20A)

$197.99

$

In Stock, only 3 left!

0

7

Honda 31630-ZJ1-801

SEE PART DETAILS - SUP; COIL ASSY., CHARGE (12V/20A)

$

$

Currently unavailable

7

Honda 31630-ZJ1-802

SEE PART DETAILS - PRI; COIL ASSY., CHARGE (12V/20A)

$206.99

$

In Stock, only 2 left!

0

9

Honda 31740-ZJ1-841

DIODE ASSY., ENGINE STOP

Note: Use up to Engine SN 2004329.

$66.99

$

Usually ships in 3-6 days

0

9

Honda 31740-ZJ1-862

SEE PART DETAILS - PRI; DIODE ASSY., ENGINE STOP

Note: Use from Engine SN 2004330.

$61.99

$

In Stock, only 1 left!

0

10

Honda 32105-ZJ1-800

SUB-WIRE HARNESS ASSY.

$57.99

$

In Stock, only 1 left!

0

11

Honda 63312-ZA7-000

GROMMET, TOOL

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90031-ZE1-000

BOLT, FLANGE (6X32) (CT200)

$3.99

$

In Stock, only 2 left!

0

14

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, Qty 20+

0
