GXV620 K1 QAF (GJAD) - Honda Engine, Made in Japan (SN: GJAD-2000001 - GJAD-2039999) FAN COVER Parts Diagram

Engine, Made in Japan

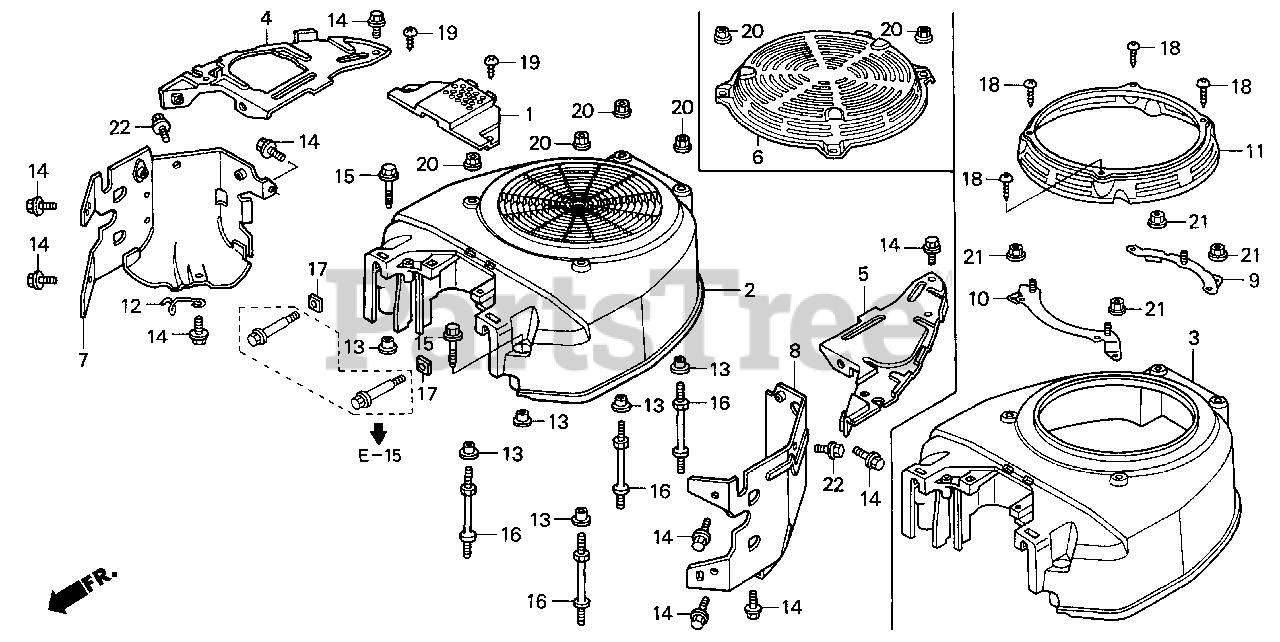

FAN COVER Parts Diagram

  • Title

1

Honda 16715-ZJ1-840

COVER, FUEL PUMP

Note: (Honda Code 6224521).

$21.99

$

In Stock, only 1 left!

0

2

Honda 19611-ZJ1-840ZA

COVER, FAN *NH1* (BLACK)

Note: (Honda Code 6225205).

$142.99

$

Usually ships in 3-6 days

0

2

Honda 19611-ZJ1-840ZB

COVER, FAN *R8* (BRIGHT RED)

Note: (Honda Code 6225213).

$

$

Currently unavailable

4

Honda 19612-ZJ1-840

PLATE, R. SIDE

Note: (Honda Code 6225221).

$

$

Currently unavailable

5

Honda 19614-ZJ1-840

PLATE, L. SIDE
(Superseded to 19614-ZJ1-841)

Note: (Honda Code 6225239).

$23.99

$

Usually ships in 3-6 days

0

7

Honda 19631-ZJ1-840

SHROUD, R.

Note: (Honda Code 6225247).

$

$

Not available

8

Honda 19632-ZJ1-840

SHROUD, L.

Note: (Honda Code 6225262).

$

$

Currently unavailable

12

Honda 30588-898-000

CLAMP, IGNITION TUBE

Note: (Honda Code 1106061).

$6.49

$

Usually ships in 3-6 days

0

13

Honda 33713-GC2-000

COLLAR B, TAILLIGHT

Note: (Honda Code 1447911).

$4.99

$

In Stock, Qty 13

0

14

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

15

Honda 90018-ZE1-000

BOLT, FLANGE (6X23)

Note: (Honda Code 1725050).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90042-ZJ1-840

BOLT, STUD (6X71)

Note: (Honda Code 6227003).

$10.99

$

Usually ships in 3-6 days

0

17

Honda 90313-ZJ1-840

NUT, SQUARE (5MM)

Note: (Honda Code 6227045).

$3.49

$

Usually ships in 3-6 days

0

19

Honda 93913-25580

SCREW, TAPPING (5X20)

Note: (Honda Code 5802582).

$1.49

$

In Stock, Qty 7

0

20

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

22

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: (Honda Code 2581353).

$4.49

$

In Stock, Qty 20+

0
