GXV610 U1 QWA (GJAFK) - Honda Engine, Made in Japan (SN: GJAFK-1000001 - GJAFK-9999999) AIR CLEANER Parts Diagram

Engine, Made in Japan

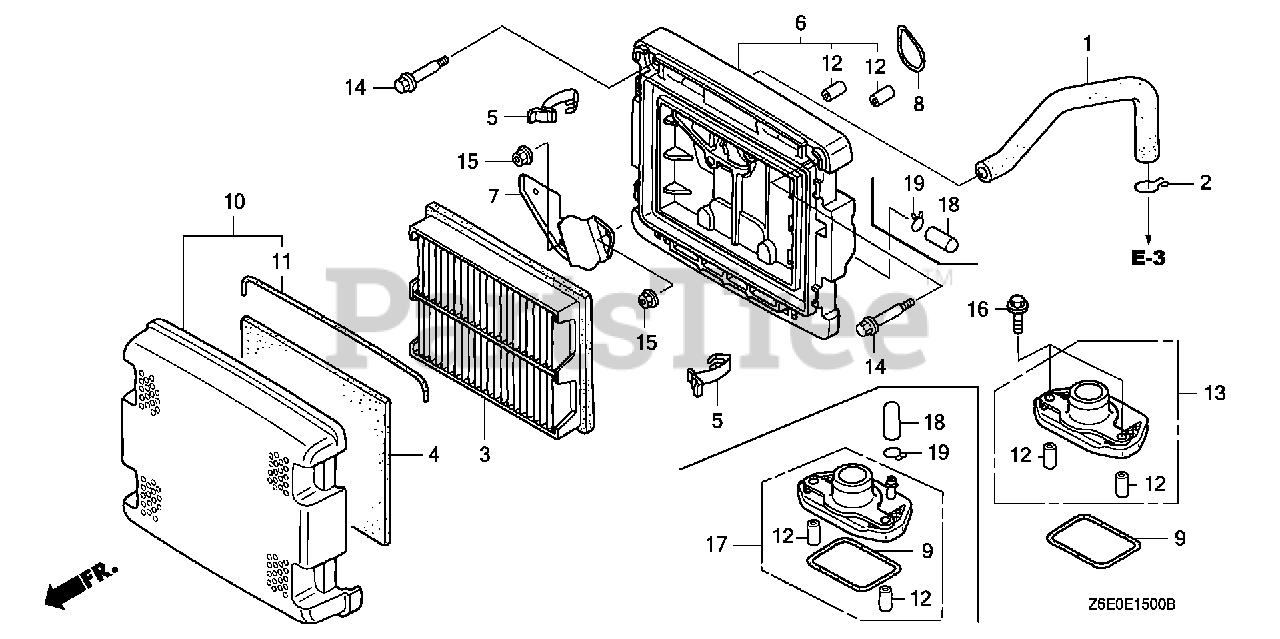

AIR CLEANER Parts Diagram

  • Title

1

Honda 12357-ZJ4-830

TUBE, BREATHER

$9.99

$

In Stock, only 1 left!

0

2

Honda 15772-551-000

CLIP, BREATHER TUBE

$2.99

$

In Stock, Qty 5

0

3

Honda 17210-ZJ1-842

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$43.99

$

In Stock, only 1 left!

0

4

Honda 17218-ZJ1-840

FILTER (OUTER)

$7.49

$

In Stock, only 1 left!

0

5

Honda 17219-ZJ1-840

CLIP, AIR CLEANER

$4.49

$

In Stock, only 3 left!

0

6

Honda 17220-Z6E-000

HOUSING, AIR CLEANER

Note: Use from Engine SN 1006344.

$73.99

$

Usually ships in 3-6 days

0

6

Honda 17220-ZJ4-830

HOUSING, AIR CLEANER

Note: Use up to Engine SN 1006343.

$92.99

$

Usually ships in 3-6 days

0

7

Honda 17223-ZJ4-830

CAP, AIR CLEANER

$

$

Not available

8

Honda 17228-ZG8-003

GASKET, AIR CLEANER

$4.49

$

In Stock, only 3 left!

0

10

Honda 17230-ZJ1-840

SEE PART DETAILS - SUP; COVER ASSY., AIR CLEANER
(Superseded to 17230-ZJ1-841)

$56.99

$

In Stock, only 1 left!

0

10

Honda 17230-ZJ1-841

SEE PART DETAILS - PRI; COVER ASSY., AIR CLEANER

$56.99

$

In Stock, only 1 left!

0

11

Honda 17233-ZJ1-840

SEAL, AIR CLEANER COVER

$3.49

$

In Stock, only 2 left!

0

12

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER

$2.49

$

In Stock, only 3 left!

0

14

Honda 90003-ZJ1-840

BOLT, SPECIAL (5MM)

$3.49

$

In Stock, only 2 left!

0

15

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 90634-ZL8-H00

CAP, SEALING

Note: Use from Engine SN 1006344.

$5.99

$

Usually ships in 3-6 days

0

19

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use from Engine SN 1006344.

$2.49

$

Usually ships in 3-6 days

0
