GXV610 QWC (GJAC) - Honda Engine, Made in Japan (SN: GJAC-1000001 - GJAC-1014874) CARBURETOR Parts Diagram

Engine, Made in Japan

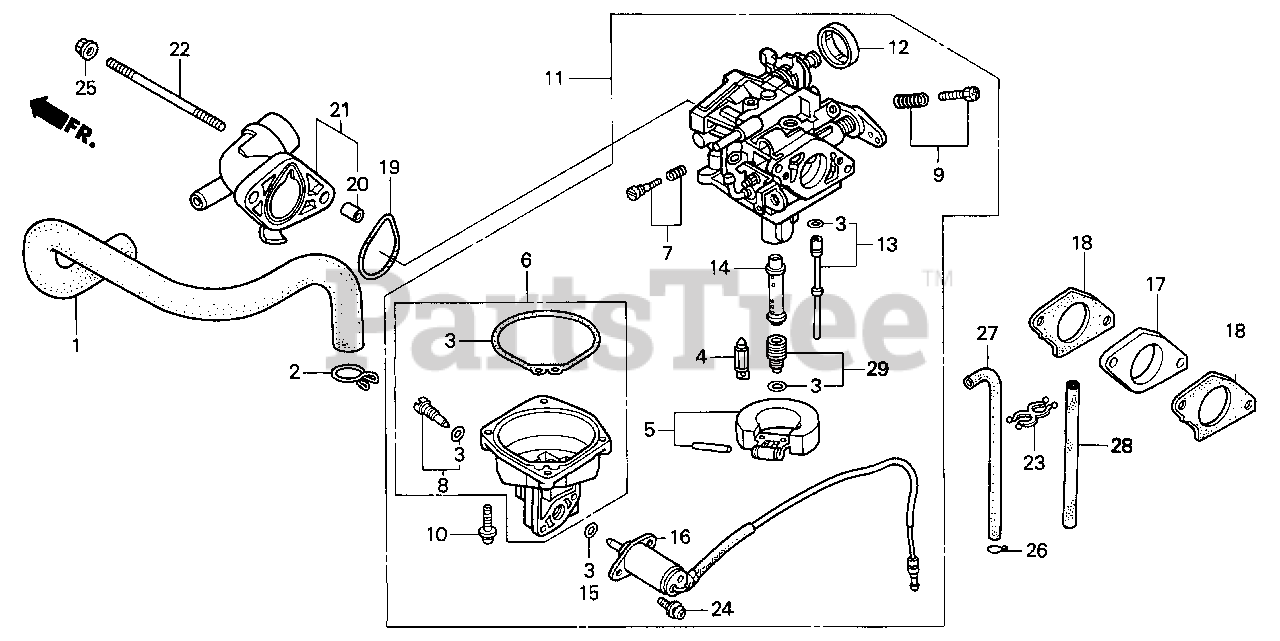

CARBURETOR Parts Diagram

  • Title

1

Honda 12357-ZJ4-000

TUBE, BREATHER

Note: (Honda Code 4329694).

$

$

Not available

2

Honda 15772-551-000

CLIP, BREATHER TUBE

Note: (Honda Code 0501353).

$2.99

$

In Stock, Qty 5

0

3

Honda 16010-ZJ4-800

GASKET SET

Note: (Honda Code 4329777).

$19.99

$

Usually ships in 3-6 days

0

4

Honda 16011-382-004

VALVE SET, FLOAT
(Superseded to 16011-KCK-910)

Note: (Honda Code 0714436).

$43.99

$

In Stock, only 3 left!

0

5

Honda 16013-ZV4-005

FLOAT SET

Note: (Honda Code 2794899).

$40.99

$

In Stock, only 2 left!

0

6

Honda 16015-ZJ4-800

CHAMBER SET, FLOAT

Note: (Honda Code 4329785).

$

$

Not available

7

Honda 16016-ZG8-000

SCREW SET

Note: (Honda Code 3506391).

$

$

Not available

8

Honda 16024-124-760

SCREW SET, DRAIN

Note: (Honda Code 0640052).

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZG8-000

SCREW SET

Note: (Honda Code 3506409).

$13.99

$

In Stock, only 1 left!

0

10

Honda 16081-ZV4-650

SCREW-WASHER

Note: (Honda Code 3507852).

$4.49

$

Usually ships in 3-6 days

0

11

Honda 16100-ZJ4-801

CARBURETOR ASSY.

Note: (Honda Code 4572749).

$

$

Not available

12

Honda 16148-141-881

CAP, CHOKE LEVER DUST

Note: (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

13

Honda 16150-ZJ4-000

JET SET (#48)
(Superseded to 16151-ZG8-L10)

Note: (Honda Code 4329868).

$45.99

$

Usually ships in 3-6 days

0

14

Honda 16166-ZJ4-000

NOZZLE, MAIN

Note: (Honda Code 4329884).

$

$

Not available

17

Honda 16211-ZJ1-000

INSULATOR, CARBURETOR

Note: (Honda Code 4259263).

$20.99

$

Usually ships in 3-6 days

0

18

Honda 16221-ZG8-000

GASKET, CARBURETOR

Note: (Honda Code 3507910).

$3.49

$

In Stock, Qty 20+

0

19

Honda 17228-ZG8-003

GASKET, AIR CLEANER

Note: (Honda Code 3506524).

$4.49

$

In Stock, Qty 13

0

20

Honda 17237-ZE3-791

COLLAR A, AIR CLEANER

Note: (Honda Code 2555357).

$

$

Not available

21

Honda 17410-ZJ4-000

ELBOW, AIR CLEANER

Note: (Honda Code 4330023).

$

$

Not available

22

Honda 90041-147-000

BOLT, STUD (6X108)

Note: (Honda Code 0465476).

$8.99

$

Usually ships in 3-6 days

0

23

Honda 90658-SA0-003

CLIP, WIRE HARNESS

Note: (Honda Code 1391663).

$12.99

$

Usually ships in 3-6 days

0

25

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

26

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

27

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X600)

Note: (Honda Code 5137153).

$14.99

$

Usually ships in 3-6 days

0

28

Honda 95005-45001-20M

BULK HOSE, VACUUM (4.5X1000) (4.5X450)

Note: (Honda Code 4983714).

$51.99

$

Usually ships in 3-6 days

0

29

Honda 99101-ZJ4-0900

JET, MAIN (#90)

Note: (Optional). (Honda Code 4831756).

$11.99

$

Usually ships in 3-6 days

0

29

Honda 99101-ZJ4-0920

JET SET (#92)
(Superseded to 99201-ZG8-0920)

Note: (Optional). (Honda Code 4330247).

$19.99

$

Usually ships in 3-6 days

0

29

Honda 99101-ZJ4-0950

JET SET (#95)

Note: (Honda Code 4330254).

$

$

Currently unavailable
