GXV610 QAFP (GEAB) - Honda Engine, Made in Japan (SN: GEAB-1000001 - GEAB-1999999) CARBURETOR Parts Diagram

Engine, Made in Japan

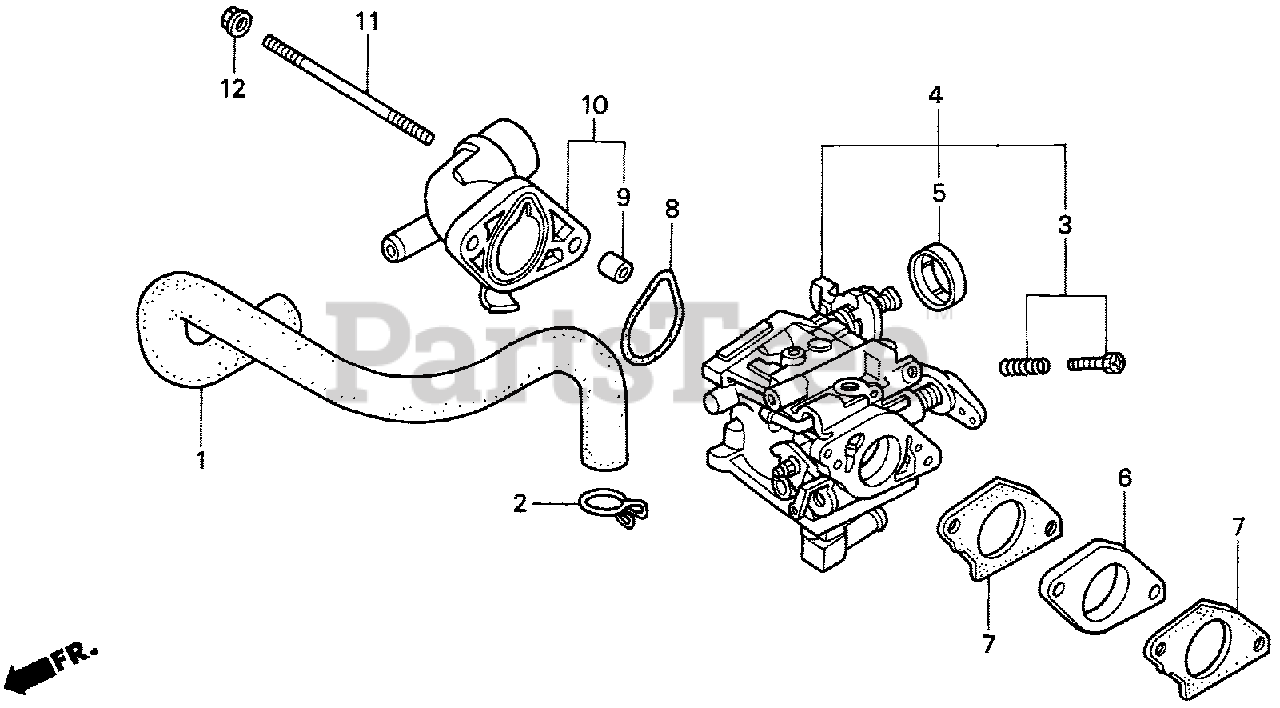

CARBURETOR Parts Diagram

  • Title
1

Honda 12357-ZJ4-000

TUBE, BREATHER

Note: (Honda Code 4329694).

$

$

Not available

2

Honda 15772-551-000

CLIP, BREATHER TUBE

Note: (Honda Code 0501353).

$2.99

$

In Stock, Qty 5

0

3

Honda 16028-ZG8-000

SCREW SET

Note: (Honda Code 3506409).

$13.99

$

In Stock, only 1 left!

0

4

Honda 16100-ZJ4-821

CARBURETOR ASSY. (BGL2A A)

Note: (Honda Code 5169958).

$

$

Not available

5

Honda 16148-141-881

CAP, CHOKE LEVER DUST

Note: (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

6

Honda 16211-ZJ1-000

INSULATOR, CARBURETOR

Note: (Honda Code 4259263).

$20.99

$

Usually ships in 3-6 days

0

7

Honda 16221-ZG8-000

GASKET, CARBURETOR

Note: (Honda Code 3507910).

$3.49

$

In Stock, Qty 5

0

8

Honda 17228-ZG8-003

GASKET, AIR CLEANER

Note: (Honda Code 3506524).

$4.49

$

In Stock, only 3 left!

0

9

Honda 17237-ZE3-791

COLLAR A, AIR CLEANER

Note: (Honda Code 2555357).

$

$

Not available

10

Honda 17410-ZJ4-000

ELBOW, AIR CLEANER

Note: (Honda Code 4330023).

$

$

Not available

11

Honda 90041-147-000

BOLT, STUD (6X108)

Note: (Honda Code 0465476).

$8.99

$

Usually ships in 3-6 days

0

12

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
