GXV57 UT N7E1/A (GJAHT) - Honda Engine, Made in Thailand (SN: GJAHT-2000001 - GJAHT-9999999) CARBURETOR Parts Diagram

Engine, Made in Thailand

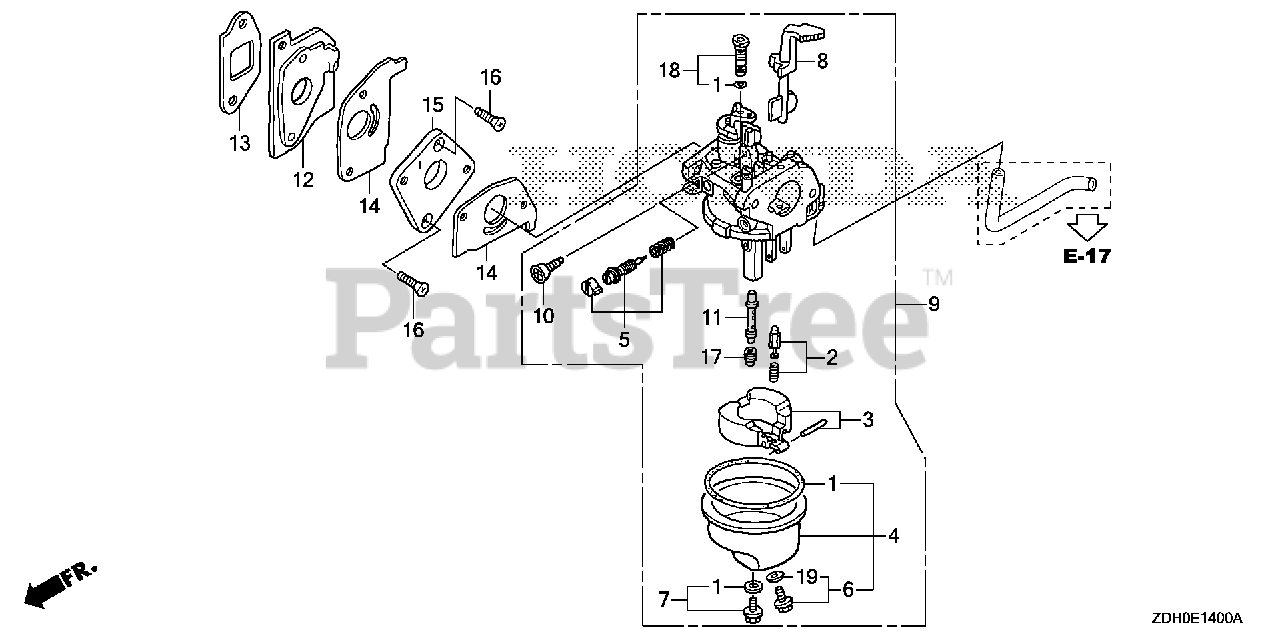

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZG2-D10

GASKET SET (CARBURETOR NO.)

$13.99

$

Usually ships in 3-6 days

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$28.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZG0-811

CHAMBER SET, FLOAT (CARBURETOR NO.)

$40.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH8-W01

SCREW SET (Honda Code 4212387).

$12.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET (CARBURETOR NO.)

$14.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZM7-801

CHOKE SET (CARBURETOR NO.)

$31.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZDH-WA1

CARBURETOR ASSY. (BF24N A)

$51.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZN4-A61

NOZZLE, MAIN (CARBURETOR NO.)

$20.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZN4-000

INSULATOR, CARBURETOR

$9.49

$

In Stock, only 1 left!

0

13

Honda 16212-ZM7-000

GASKET, INSULATOR (ENGINE NO.)

$2.49

$

In Stock, Qty 5

0

14

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

15

Honda 16225-ZN4-000

PLATE, CARBURETOR JOINT

$17.99

$

In Stock, only 2 left!

0

16

Honda 93600-05020-0A

SCREW, FLAT (5X20)

$1.49

$

In Stock, Qty 10

0

17

Honda 99101-ZG0-0480

JET, MAIN (#48) (CARBURETOR NO.)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

17

Honda 99101-ZG0-0500

SEE PART DETAILS - PRI; JET, MAIN (#50) Use from Engine SN BF12A B.

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

17

Honda 99101-ZG0-0520

SEE PART DETAILS - PRI; JET, MAIN (#52) Use from Engine SN BF12A B.

$10.99

$

Usually ships in 3-6 days

0

18

Honda 99204-ZE2-0350

JET SET, PILOT (#35)

$14.99

$

Usually ships in 3-6 days

0

19

Honda 16141-Z0S-003

WASHER, PLAIN (6.2X10.7 DRAIN) (CARBURETOR NO.)

$0.99

$

Usually ships in 3-6 days

0
