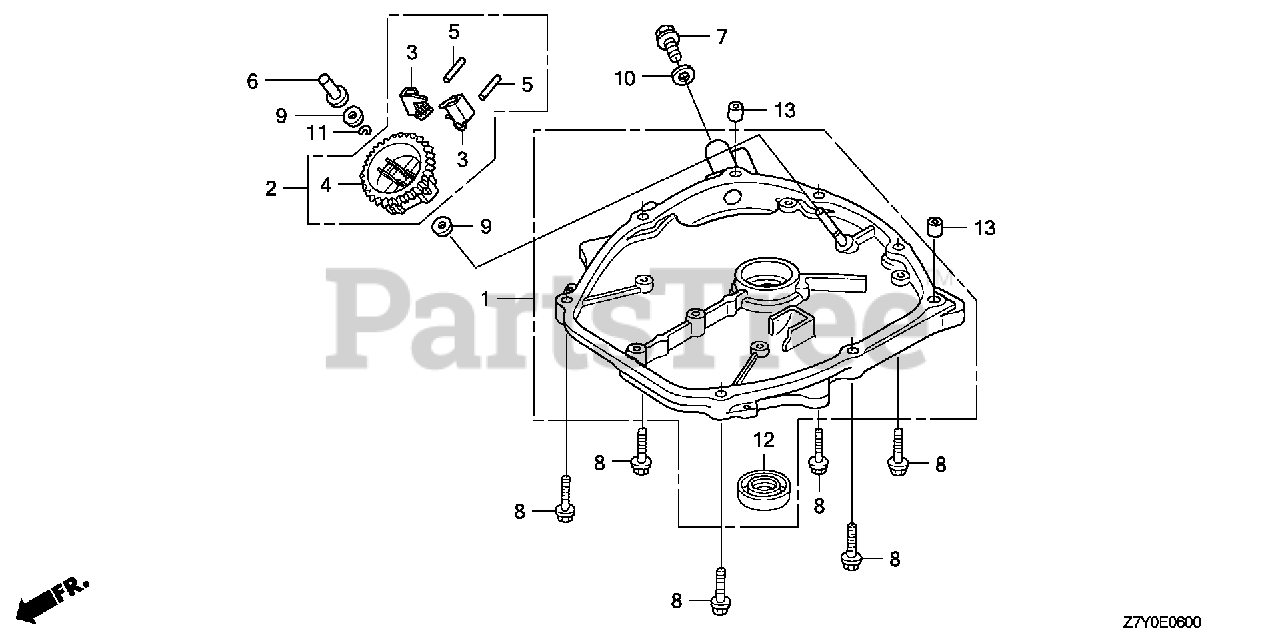

GXV57 U N7E1 (GJAJK) - Honda Engine, Made in Japan (SN: GJAJK-1000001 - GJAJK-9999999) CRANKCASE SIDE COVER Parts Diagram
Engine, Made in Japan
CRANKCASE SIDE COVER Parts Diagram
Honda 11340-Z7Y-000
COVER, CRANKCASE SIDE
$67.99
$
Usually ships in 3-6 days
Honda 16510-ZM7-000
GOVERNOR ASSY.
$18.99
$
Usually ships in 3-6 days
Honda 16511-ZM7-000
WEIGHT, GOVERNOR
$1.99
$
Usually ships in 3-6 days
Honda 16512-ZM7-000
HOLDER, GOVERNOR WEIGHT
$6.99
$
Usually ships in 3-6 days
Honda 16513-ZE1-000
PIN, GOVERNOR WEIGHT
$2.49
$
Usually ships in 3-6 days
Honda 16531-ZM7-000
SLIDER, GOVERNOR
$3.49
$
Usually ships in 3-6 days
Honda 90002-ZN4-A50
BOLT, PLUG DRAIN (12MM)
$3.99
$
Usually ships in 3-6 days
Honda 90006-ZM7-000
BOLT, FLANGE (5X23)
$2.49
$
Usually ships in 3-6 days
Honda 90441-ZM7-000
WASHER (4.2X13)
$2.49
$
Usually ships in 3-6 days
Honda 90601-VE5-000
WASHER, DRAIN PLUG (12MM)
$1.49
$
Usually ships in 3-6 days
Honda 90602-ZM7-000
CLIP, GOVERNOR HOLDER
$1.99
$
Usually ships in 3-6 days
Honda 91202-GB4-692
OIL SEAL (18.9X28X5) (ARAI)
$6.99
$
Usually ships in 3-6 days
Honda 94301-06100
PIN, DOWEL (6X10)
$2.99
$
Usually ships in 3-6 days
