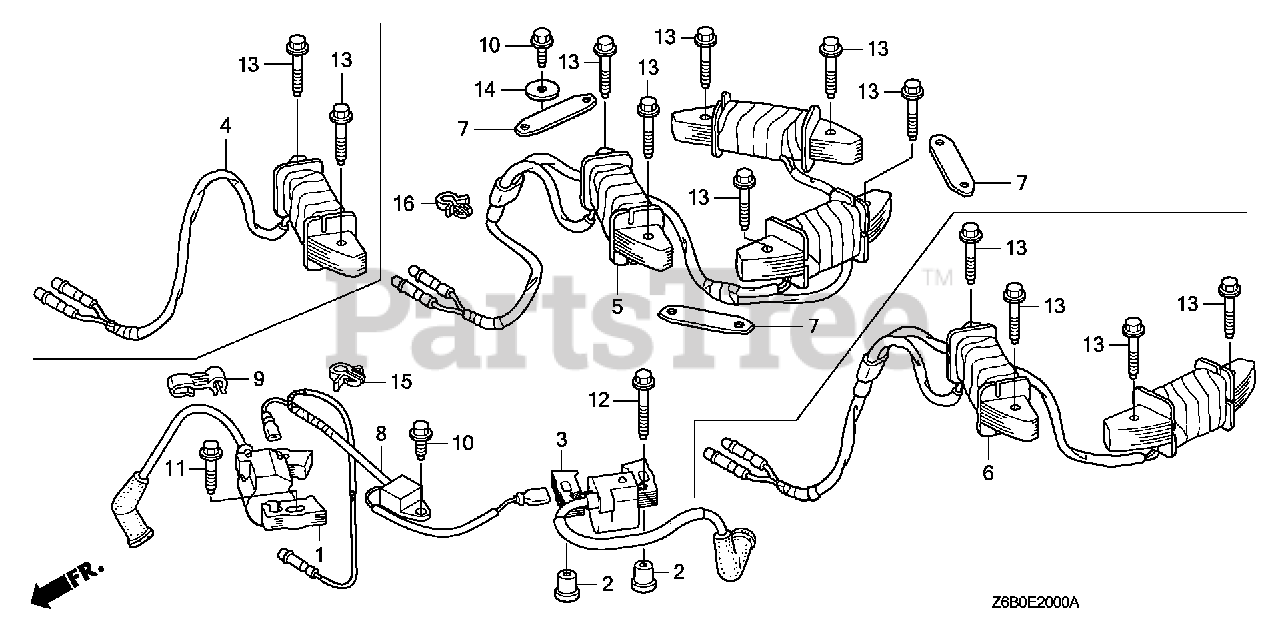

GXV530 U SXE2 (GJAEK) - Honda Engine, Made in Japan (SN: GJAEK-1000001 - GJAEK-9999999) IGNITION COIL Parts Diagram
Engine, Made in Japan
IGNITION COIL Parts Diagram
Honda 30500-Z0A-033
SEE PART DETAILS - PRI; COIL ASSY., IGNITION (#1)
$55.99
$
In Stock, only 2 left!
Honda 30509-Z0A-000
COLLAR, IGNITION COIL
$5.99
$
Usually ships in 3-6 days
Honda 30550-Z0A-033
COIL ASSY., IGNITION (#2)
$55.99
$
In Stock, only 2 left!
Honda 31630-Z0A-811
COIL ASSY., CHARGE (12V/12A)
$140.99
$
Usually ships in 3-6 days
Honda 31740-Z0A-003
DIODE ASSY., ENGINE STOP
$25.99
$
In Stock, only 3 left!
Honda 32768-PJ7-000
CLAMP, CENTER WIRE
$10.99
$
Usually ships in 3-6 days
Honda 90013-883-000
BOLT, FLANGE (6X12) (CT200)
$1.99
$
In Stock, Qty 20+
Honda 90015-883-000
BOLT, FLANGE (6X28) (CT200)
$3.99
$
In Stock, Qty 8
Honda 90016-ZE8-000
BOLT, FLANGE (6X45) (CT200)
$2.99
$
In Stock, only 2 left!
Honda 90031-ZE1-000
BOLT, FLANGE (6X32) (CT200)
$3.99
$
In Stock, only 2 left!
Honda 90136-428-870
WASHER, TANK SETTING
$1.99
$
Usually ships in 3-6 days
Honda 90654-SA4-003
CLIP, WIRE HARNESS (6MM) (WHITE)
$0.99
$
In Stock, Qty 8
Honda 90659-PG6-000
CLIP, WIRE HARNESS
$9.49
$
Usually ships in 3-6 days
