GXV530 U QXU3 (GJAEK) - Honda Engine, Made in Japan (SN: GJAEK-1000001 - GJAEK-9999999) FUEL PUMP Parts Diagram

Engine, Made in Japan

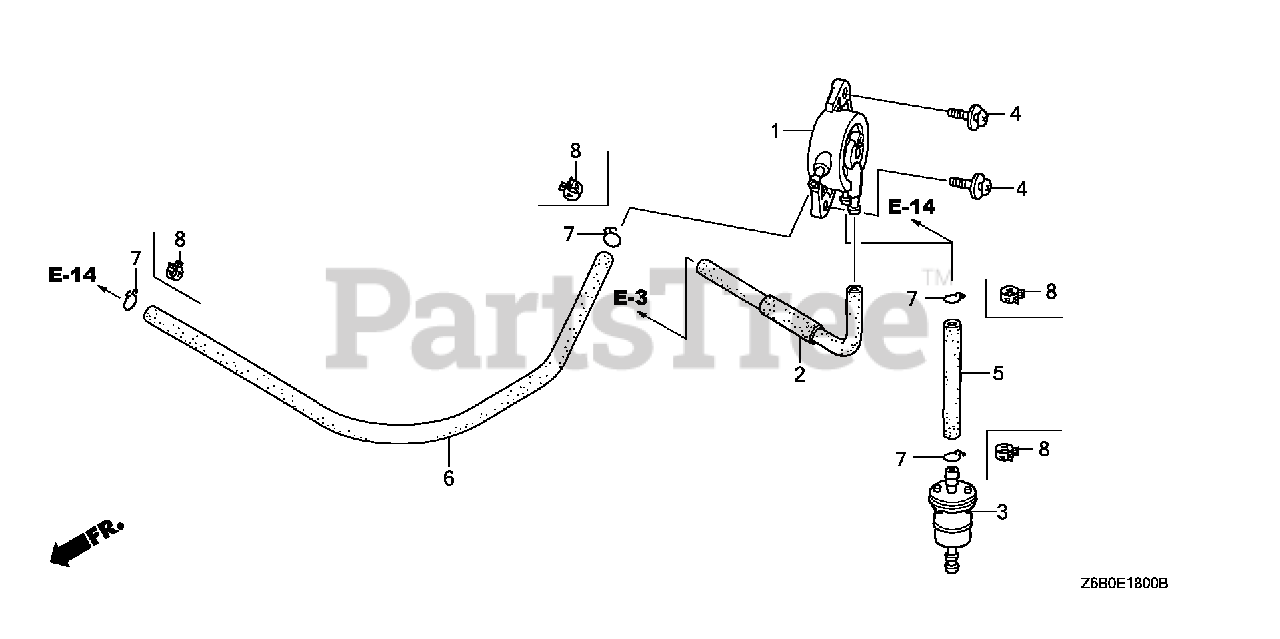

FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-ZL8-013

SEE PART DETAILS - SUP; PUMP ASSY., FUEL
(Superseded to 16700-Z0J-003)

$99.99

$

Usually ships in 3-6 days

0

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL (MSDS)

$99.99

$

Usually ships in 3-6 days

0

2

Honda 16882-Z0A-000

TUBE, DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

3

Honda 16910-ZV4-015

FILTER, FUEL

Note: Use up to Engine SN 1014455.

$19.99

$

In Stock, only 4 left!

0

3

Honda 16910-Z6L-003

STRAINER, FUEL

Note: Use from Engine SN 1014456.

$13.99

$

In Stock, only 3 left!

0

4

Honda 93894-05016-00

SCREW-WASHER (5X16)

$1.49

$

In Stock, Qty 8

0

5

Honda 91425-Z5Y-802

TUBE, FUEL (5.3X100) (FKM)

Note: Use from Engine SN 1001842 to 1010306.

$5.49

$

Usually ships in 3-6 days

0

5

Honda 91425-Z5Y-802

TUBE, FUEL (5.3X100) (FKM)

Note: Use from Engine SN 1010307.

$5.49

$

Usually ships in 3-6 days

0

5

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X100)

Note: Use up to Engine SN 1001841.

$70.99

$

In Stock, only 1 left!

0

6

Honda 91425-Z5Y-812

TUBE, FUEL (5.3X350) (FKM)

Note: Use from Engine SN 1001842 to 1010306.

$18.99

$

Usually ships in 3-6 days

0

6

Honda 91425-Z5Y-812

TUBE, FUEL (5.3X350) (FKM)

Note: Use from Engine SN 1010307.

$18.99

$

Usually ships in 3-6 days

0

6

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X350)

Note: Use up to Engine SN 1001841.

$70.99

$

In Stock, only 1 left!

0

7

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use up to Engine SN 1001841.

$2.49

$

In Stock, Qty 16

0

8

Honda 95002-41000-08

CLAMP, TUBE (D10)

Note: Use from Engine SN 1001842.

$3.49

$

Usually ships in 3-6 days
