GXV530 QXA5 (GJARM) - Honda Engine, Made in Japan (SN: GJARM-1000001 - GJARM-1069999) OIL PAN Parts Diagram

Engine, Made in Japan

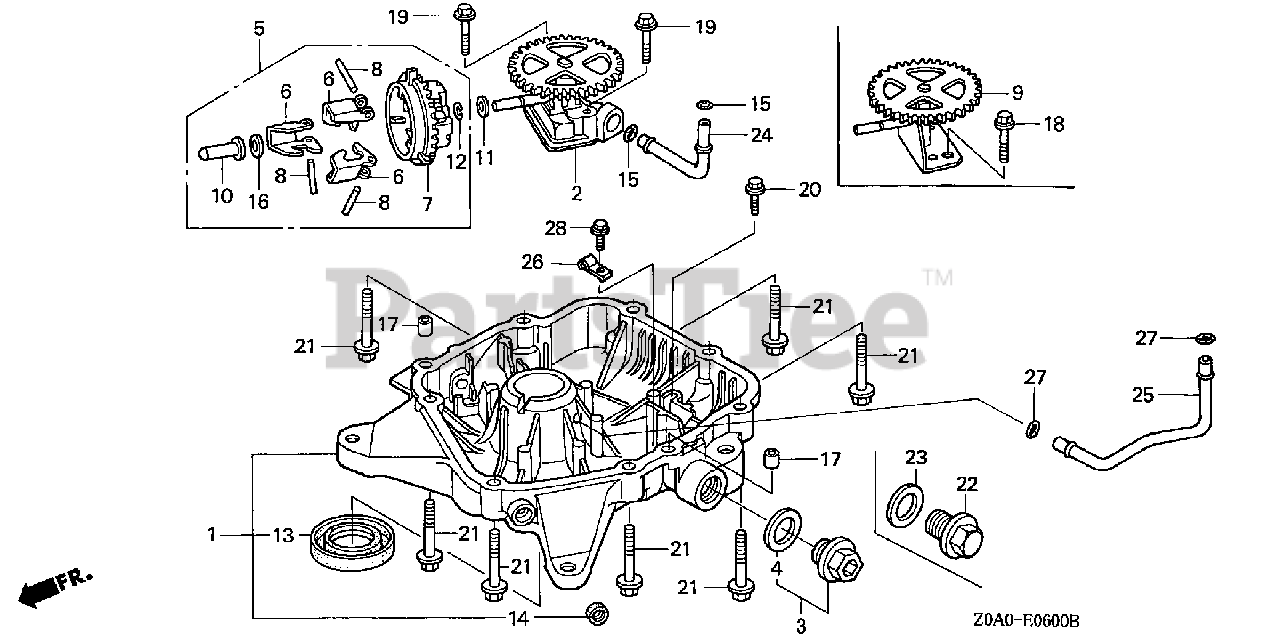

OIL PAN Parts Diagram

  • Title

1

Honda 11300-Z0A-830

PAN ASSY., OIL

Note: (Honda Code 6853386).

$161.99

$

Usually ships in 3-6 days

0

2

Honda 15100-Z0A-811

PUMP ASSY., OIL

Note: (Honda Code 6853428).

$110.99

$

Usually ships in 3-6 days

0

5

Honda 16510-Z0A-000

GOVERNOR ASSY.

Note: (Honda Code 6605075).

$29.99

$

Usually ships in 3-6 days

0

6

Honda 16511-Z0A-000

WEIGHT, GOVERNOR

Note: (Honda Code 6605083).

$3.99

$

Usually ships in 3-6 days

0

7

Honda 16512-Z0A-000

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 6605091).

$20.99

$

Usually ships in 3-6 days

0

8

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

Note: (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

Note: (Honda Code 6605117).

$3.99

$

In Stock, only 3 left!

0

11

Honda 90473-147-000

WASHER (6X16)

Note: (Honda Code 0465591).

$1.99

$

In Stock, only 1 left!

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

13

Honda 91202-Z0A-003

OIL SEAL (31X50X8)

Note: (Honda Code 6607196).

$12.99

$

In Stock, Qty 5

0

14

Honda 91259-VM0-000

SEE PART DETAILS - PRI; OIL SEAL (10X16X4.5)

Note: (Honda Code 1775170).

$6.49

$

In Stock, only 1 left!

0

15

Honda 91301-Z0A-003

O-RING (7.5X2.3)

Note: (Honda Code 6698815).

$2.99

$

In Stock, only 2 left!

0

16

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

17

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

19

Honda 95701-06030-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X30)

Note: (Honda Code 2401222).

$2.49

$

In Stock, only 4 left!

0

21

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

Note: (Honda Code 2298404).

$1.99

$

In Stock, Qty 20+

0

22

Honda 92800-20000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (20MM)

Note: (Honda Code 0209635).

$7.49

$

Usually ships in 3-6 days

0

23

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM)

Note: (Honda Code 0251728).

$1.99

$

In Stock, only 3 left!

0

24

Honda 15161-Z0A-000

PIPE, OIL PUMP

Note: (Honda Code 6853436).

$9.49

$

Usually ships in 3-6 days

0

25

Honda 15162-Z0A-800

PIPE, OIL SUPPLY

Note: (Honda Code 6853444).

$18.99

$

Usually ships in 3-6 days

0

26

Honda 15163-Z0A-000

HOLDER, OIL PIPE

Note: (Honda Code 6853451).

$2.49

$

Usually ships in 3-6 days

0

27

Honda 91302-Z0A-003

O-RING (5.8X2)

Note: (Honda Code 6698823).

$2.99

$

In Stock, only 2 left!

0

28

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0
