GXV530 QXA5 (GJARM) - Honda Engine, Made in Japan (SN: GJARM-1000001 - GJARM-1069999) MUFFLER Parts Diagram

Engine, Made in Japan

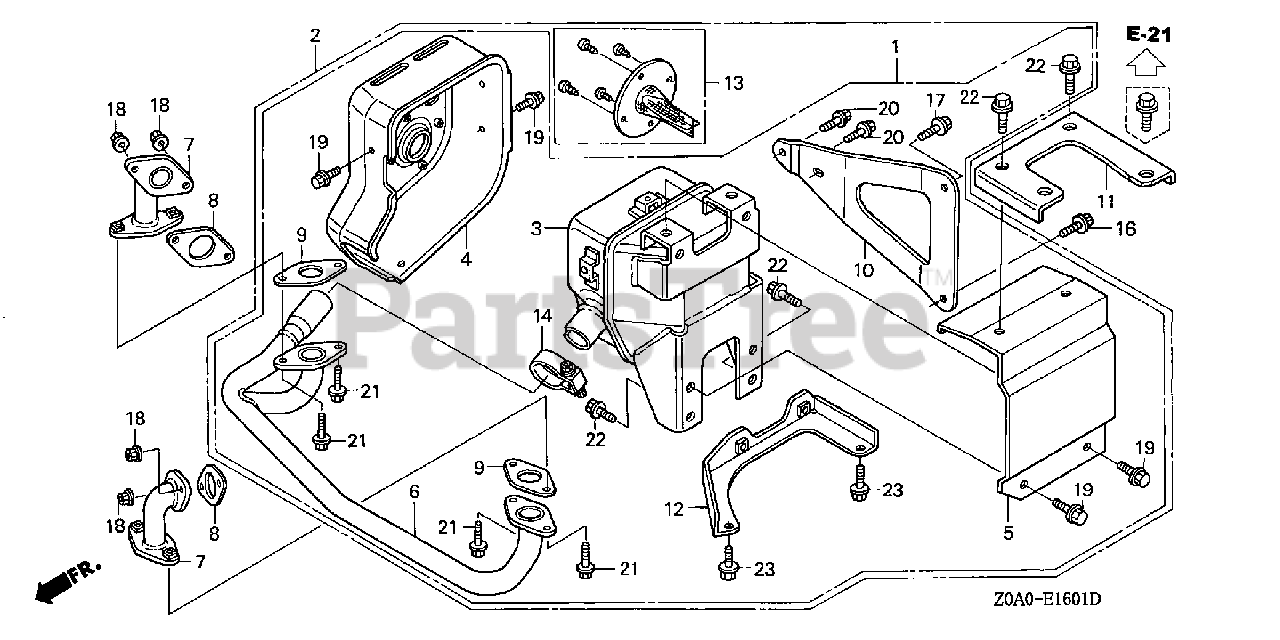

MUFFLER Parts Diagram

  • Title

1

Honda 06183-Z0A-800

MUFFLER KIT (A)

Note: (Optional). (Honda Code 6604367).

$

$

Currently unavailable

2

Honda 06183-Z0A-810

MUFFLER KIT (B)

Note: (Optional). (Honda Code 6604375).

$1401.99

$

Usually ships in 3-6 days

0

3

Honda 18310-Z0A-801

SEE PART DETAILS - PRI; MUFFLER

Note: (Optional). (Honda Code 6695928).

$433.99

$

Usually ships in 3-6 days

0

4

Honda 18321-ZJ1-841

PROTECTOR, MUFFLER (SIDE-L)

Note: (Optional). (Honda Code 6225130).

$69.99

$

Usually ships in 3-6 days

0

5

Honda 18325-Z0A-800

PROTECTOR, RR. MUFFLER

Note: (Optional). (Honda Code 6605356).

$58.99

$

Usually ships in 3-6 days

0

6

Honda 18330-Z0A-801

SEE PART DETAILS - PRI; PIPE, EX.

Note: (Optional). (Honda Code 6695936).

$744.99

$

Usually ships in 3-6 days

0

7

Honda 18331-Z0A-800

PIPE, EX. (FLANGE)

Note: (Honda Code 6605380).

$48.99

$

Usually ships in 3-6 days

0

8

Honda 18333-Z0A-000

GASKET, EX. PIPE
(Superseded to 18333-Z0A-010)

Note: (Honda Code 6605398).

$5.49

$

In Stock, Qty 12

0

9

Honda 18333-Z0A-000

GASKET, EX. PIPE
(Superseded to 18333-Z0A-010)

Note: (Optional). (Honda Code 6605398).

$5.49

$

In Stock, Qty 12

0

10

Honda 18337-Z0A-800

BRACKET, MUFFLER

Note: (Optional). (Honda Code 6605406).

$54.99

$

Usually ships in 3-6 days

0

11

Honda 18338-Z0A-800

BRACKET, MUFFLER (UPPER)

Note: (Honda Code 6605414).

$22.99

$

Usually ships in 3-6 days

0

12

Honda 18339-Z0A-801

BRACKET, MUFFLER (LOWER)

Note: (Optional). (Honda Code 7003288).

$178.99

$

Usually ships in 3-6 days

0

13

Honda 18355-ZJ1-801

ARRESTER, SPARK (SIDE)

Note: (Optional). (Honda Code 4213906).

$55.99

$

Usually ships in 3-6 days

0

14

Honda 18396-ZJ1-003

BAND ASSY.

Note: (Optional). (Honda Code 5159942).

$

$

Not available

16

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

17

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

Note: (Optional). (Honda Code 2105815).

$2.49

$

In Stock, Qty 6

0

18

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8)

Note: (Optional). (Honda Code 2581353).

$4.49

$

In Stock, Qty 20+

0

20

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

Note: (Optional). (Honda Code 2410876).

$1.99

$

In Stock, Qty 7

0

21

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

Note: (Optional). (Honda Code 2410892).

$2.49

$

In Stock, Qty 6

0

22

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

Note: (Optional). (Honda Code 2529105).

$2.49

$

In Stock, Qty 20+

0

23

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

Note: (Optional). (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0
