GXV530 QXA5/A (GJARM) - Honda Engine, Made in Japan (SN: GJARM-1070001 - GJARM-1070149) MUFFLER Parts Diagram

Engine, Made in Japan

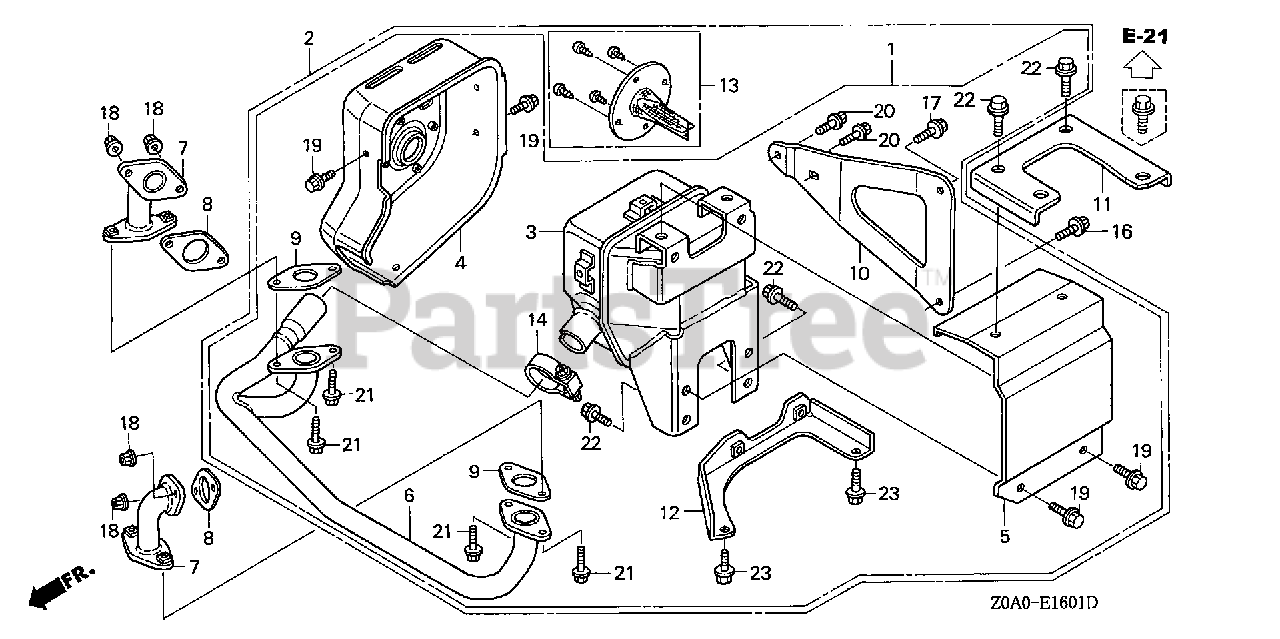

MUFFLER Parts Diagram

  • Title

1

Honda 06183-Z0A-800

MUFFLER KIT (A)

Note: (Optional).

$

$

Currently unavailable

2

Honda 06183-Z0A-810

MUFFLER KIT (B)

Note: (Optional).

$1401.99

$

Usually ships in 3-6 days

0

3

Honda 18310-Z0A-801

SEE PART DETAILS - PRI; MUFFLER

Note: (Optional).

$453.99

$

Usually ships in 3-6 days

0

4

Honda 18321-ZJ1-841

PROTECTOR, MUFFLER (SIDE-L) (Honda Code 6225130).

Note: (Optional).

$72.99

$

Usually ships in 3-6 days

0

5

Honda 18325-Z0A-800

PROTECTOR, RR. MUFFLER

Note: (Optional).

$58.99

$

Usually ships in 3-6 days

0

6

Honda 18330-Z0A-801

SEE PART DETAILS - PRI; PIPE, EX.

Note: (Optional).

$744.99

$

Usually ships in 3-6 days

0

7

Honda 18331-Z0A-800

PIPE, EX. (FLANGE)

$50.99

$

Usually ships in 3-6 days

0

8

Honda 18333-Z0A-010

GASKET, EX. PIPE

$5.99

$

In Stock, Qty 12

0

9

Honda 18333-Z0A-010

GASKET, EX. PIPE

Note: (Optional).

$5.99

$

In Stock, Qty 12

0

10

Honda 18337-Z0A-800

BRACKET, MUFFLER

Note: (Optional).

$54.99

$

Usually ships in 3-6 days

0

11

Honda 18338-Z0A-800

BRACKET, MUFFLER (UPPER)

$22.99

$

Usually ships in 3-6 days

0

12

Honda 18339-Z0A-801

BRACKET, MUFFLER (LOWER)

Note: (Optional).

$178.99

$

Usually ships in 3-6 days

0

13

Honda 18355-ZJ1-801

ARRESTER, SPARK (SIDE) (Honda Code 4213906).

Note: (Optional).

$57.99

$

Usually ships in 3-6 days

0

14

Honda 18396-ZJ1-003

BAND ASSY. (FOR BLACK MUFFLER) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

16

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, Qty 12

0

17

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

Note: (Optional).

$2.49

$

In Stock, only 3 left!

0

18

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

Note: (Optional).

$4.99

$

In Stock, Qty 20+

0

20

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

Note: (Optional).

$1.99

$

In Stock, Qty 20+

0

21

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2529105).

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

23

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

Note: (Optional).

$3.49

$

In Stock, only 1 left!

0
