GXV520 U QRA5 (GJACK) - Honda Engine, Made in Japan (SN: GJACK-1000001 - GJACK-9999999) CYLINDER Parts Diagram

Engine, Made in Japan

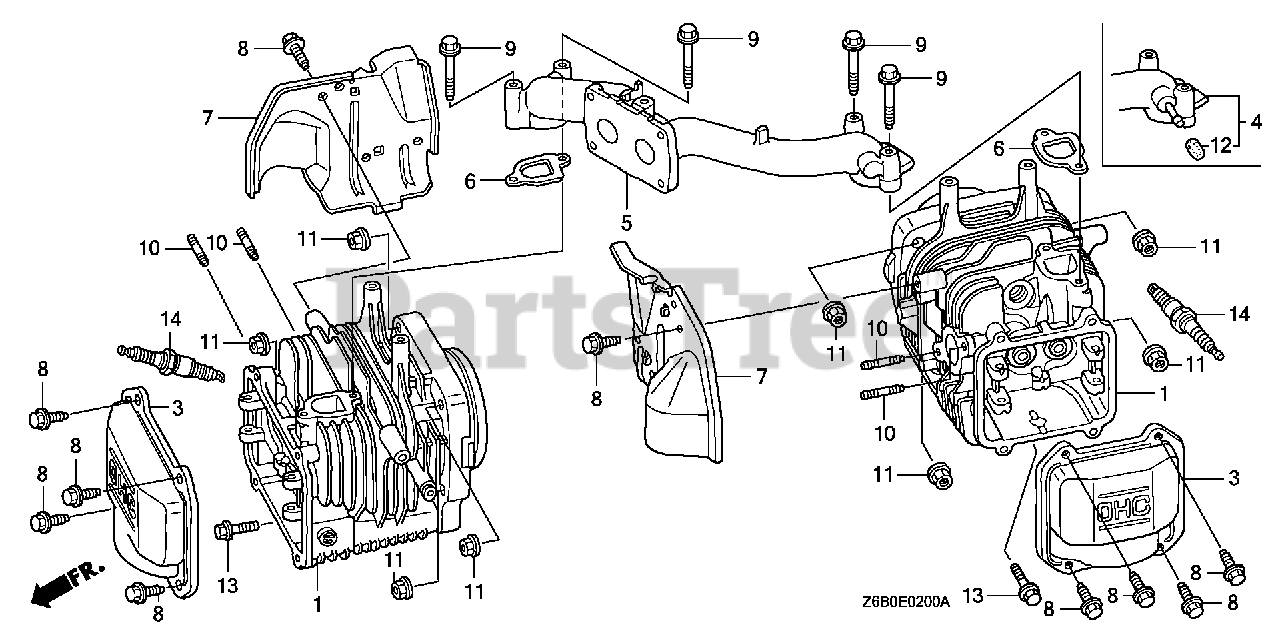

CYLINDER Parts Diagram

  • Title

1

Honda 12100-Z0A-406

CYLINDER

$300.99

$

Usually ships in 3-6 days

0

3

Honda 12311-Z0A-000

COVER, HEAD

$26.99

$

Usually ships in 3-6 days

0

5

Honda 17101-Z0A-000

MANIFOLD, IN.

$180.99

$

Usually ships in 3-6 days

0

6

Honda 17151-Z0A-000

GASKET, IN. MANIFOLD

$6.49

$

In Stock, only 2 left!

0

7

Honda 19631-Z0A-000

SHROUD

$21.99

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

9

Honda 90016-ZE8-000

BOLT, FLANGE (6X45) (Honda Code 2488187).

$2.99

$

In Stock, only 2 left!

0

10

Honda 90045-892-000

BOLT, STUD (6X28) (CT200)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90201-Z0A-000

NUT, FLANGE (8MM)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06030-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X30) (Honda Code 2401222).

$2.49

$

In Stock, only 4 left!

0

14

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK) (Honda Code 1521756).

Note: (Optional).

$3.99

$

In Stock, Qty 20+

0

14

Honda 98079-54855

SEE PART DETAILS - PRI; SPARK PLUG (W14EPR-U) (DENSO) (Honda Code 1521764).

Note: (Optional).

$3.99

$

In Stock, only 3 left!

0

14

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.99

$

In Stock, Qty 20+

0

14

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0
