GXV520 U QEA3 (GJACK) - Honda Engine, Made in Japan (SN: GJACK-1000001 - GJACK-9999999) CRANKCASE Parts Diagram

Engine, Made in Japan

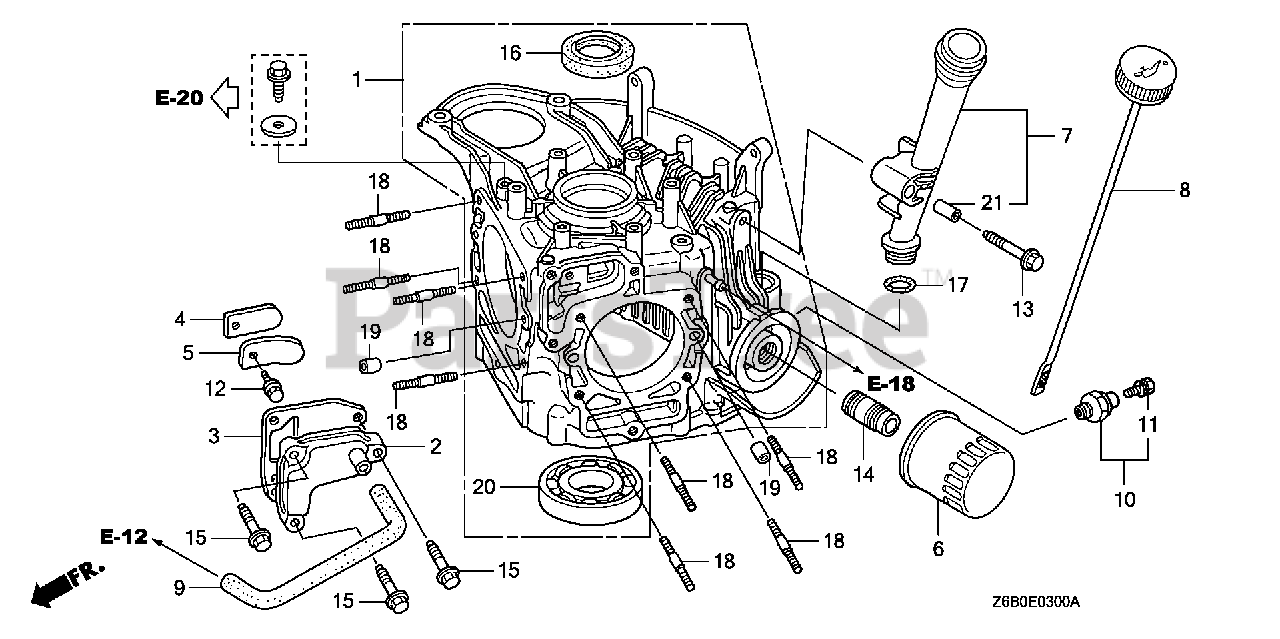

CRANKCASE Parts Diagram

  • Title

1

Honda 11100-Z0A-417

CRANKCASE ASSY. (810)

$502.99

$

Usually ships in 3-6 days

0

2

Honda 12356-Z0A-000

COVER, BREATHER

$24.99

$

Usually ships in 3-6 days

0

3

Honda 12358-Z0A-000

GASKET, BREATHER COVER

$4.49

$

Usually ships in 3-6 days

0

4

Honda 12372-ZA0-701

SEE PART DETAILS - PRI; PLATE, VALVE (Honda Code 2515195).

$8.99

$

Usually ships in 3-6 days

0

5

Honda 12374-Z0A-000

STOPPER, VALVE

$4.49

$

In Stock, only 1 left!

0

6

Honda 15400-PFB-004

SEE PART DETAILS - PRI; FILTER, OIL (Honda Code 6341531).
(Superseded to 15400-ZZ3-003)

$24.99

$

Usually ships in 3-6 days

0

6

Honda 15400-PLM-A01

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD IN MULTIPLES OF 30)
(Superseded to 15400-PLM-A02)

Note: (Optional).

$12.99

$

In Stock, Qty 12

0

6

Honda 15400-PLM-A02

FILTER, OIL (HONEYWELL) (SOLD IN MULTIPLES OF 30)

Note: (Optional).

$12.99

$

In Stock, Qty 12

0

6

Honda 15400-ZZ3-003

FILTER, OIL (DENSO)

$24.99

$

Usually ships in 3-6 days

0

7

Honda 15631-Z0A-000

EXTENSION, OIL FILLER

$35.99

$

Usually ships in 3-6 days

0

8

Honda 15655-Z0A-000

GAUGE, OIL LEVEL

$20.99

$

Usually ships in 3-6 days

0

9

Honda 15721-Z0A-000

TUBE, BREATHER

$11.99

$

Usually ships in 3-6 days

0

12

Honda 90002-892-000

BOLT, FLANGE (5X10) Use from Engine SN 2327377.

$1.99

$

In Stock, Qty 5

0

13

Honda 90016-ZE8-000

BOLT, FLANGE (6X45) (Honda Code 2488187).

$2.99

$

In Stock, only 2 left!

0

14

Honda 90018-PN3-000

HOLDER, OIL FILTER (Honda Code 3509528).

$9.99

$

In Stock, only 1 left!

0

15

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

16

Honda 91201-ZE3-004

OIL SEAL (35X52X8) (Honda Code 2108595).

$11.99

$

In Stock, Qty 7

0

17

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.5X2.2) Use from Engine SN 1257295.

$2.49

$

In Stock, Qty 12

0

18

Honda 92900-08028-0E

SEE PART DETAILS - PRI; BOLT 2, STUD (8X28)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

20

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0

21

Honda 15633-Z0A-300

COLLAR, EXTENSION

$4.99

$

Usually ships in 3-6 days

0
