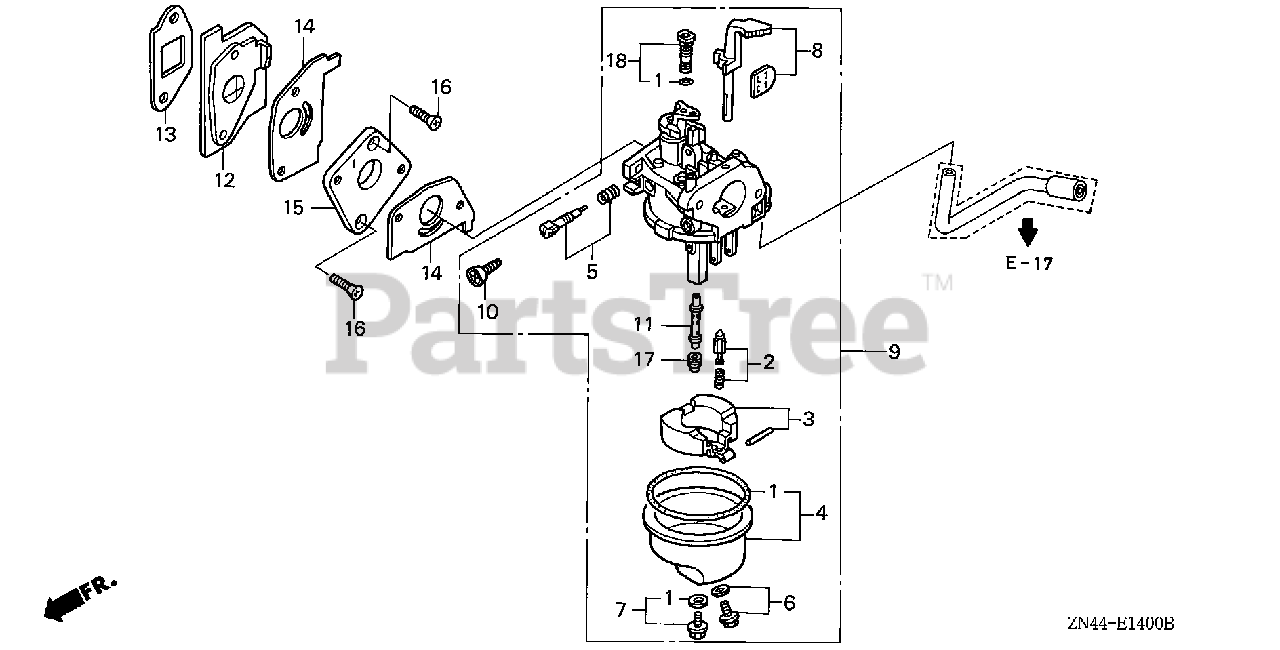

GXV50 VA (GJAG) - Honda Engine, Made in Japan (SN: GJAG-1000001 - GJAG-1099999) CARBURETOR Parts Diagram

Engine, Made in Japan

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZG0-015

GASKET SET

Note: (Honda Code 3502937).

$

$

Currently unavailable

1

Honda 16010-ZG1-015

GASKET SET

Note: (Honda Code 3521192).

$18.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

Note: (Honda Code 1441476).

$28.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZG0-811

FLOAT SET

Note: (Honda Code 1807692).

$

$

Not available

4

Honda 16015-ZG0-811

CHAMBER SET, FLOAT

Note: (Honda Code 2079440).

$40.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET

Note: (Honda Code 4219879).

$20.99

$

In Stock, only 3 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

Note: (Honda Code 1672187).

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZG0-811

SCREW SET
(Superseded to 16028-ZW6-611)

Note: (Honda Code 1807700).

$14.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZM7-003

CHOKE SET

Note: (Honda Code 5988480).

$39.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZN4-802

CARBURETOR ASSY. (BF31D B)
(Superseded to 16100-ZN4-804)

Note: (Honda Code 6477285).

$68.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZM7-003

NOZZLE, MAIN

Note: (Honda Code 6005631).

$22.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZN4-000

INSULATOR, CARBURETOR

Note: (Honda Code 5988514).

$9.49

$

In Stock, only 1 left!

0

13

Honda 16212-ZM7-000

GASKET, INSULATOR

Note: (Honda Code 5988522).

$2.49

$

In Stock, Qty 5

0

14

Honda 16221-ZG0-801

GASKET, CARBURETOR

Note: (Honda Code 4035077).

$2.99

$

In Stock, Qty 20+

0

15

Honda 16225-ZN4-000

PLATE, CARBURETOR JOINT

Note: (Honda Code 5988530).

$17.99

$

In Stock, only 2 left!

0

16

Honda 93600-05020-0A

SCREW, FLAT (5X20)

Note: (Honda Code 0176693).

$1.49

$

In Stock, Qty 10

0

17

Honda 99101-ZG0-0500

JET, MAIN (#50)

Note: (Optional). (Honda Code 4485900).

$10.99

$

Usually ships in 3-6 days

0

17

Honda 99101-ZG0-0520

JET, MAIN (#52)

Note: (Optional). (Honda Code 4485918).

$10.99

$

Usually ships in 3-6 days

0

17

Honda 99101-ZG0-0550

JET, MAIN (#55)

Note: (Honda Code 4485926).

$10.99

$

Usually ships in 3-6 days

0

18

Honda 99204-ZE2-0350

JET SET, PILOT (#35)

Note: (Honda Code 6059034).

$14.99

$

Usually ships in 3-6 days

0
