GXV50 U VE (GJAAK) - Honda Engine, Made in Japan (SN: GJAAK-1000001 - GJAAK-9999999) CARBURETOR Parts Diagram

Engine, Made in Japan

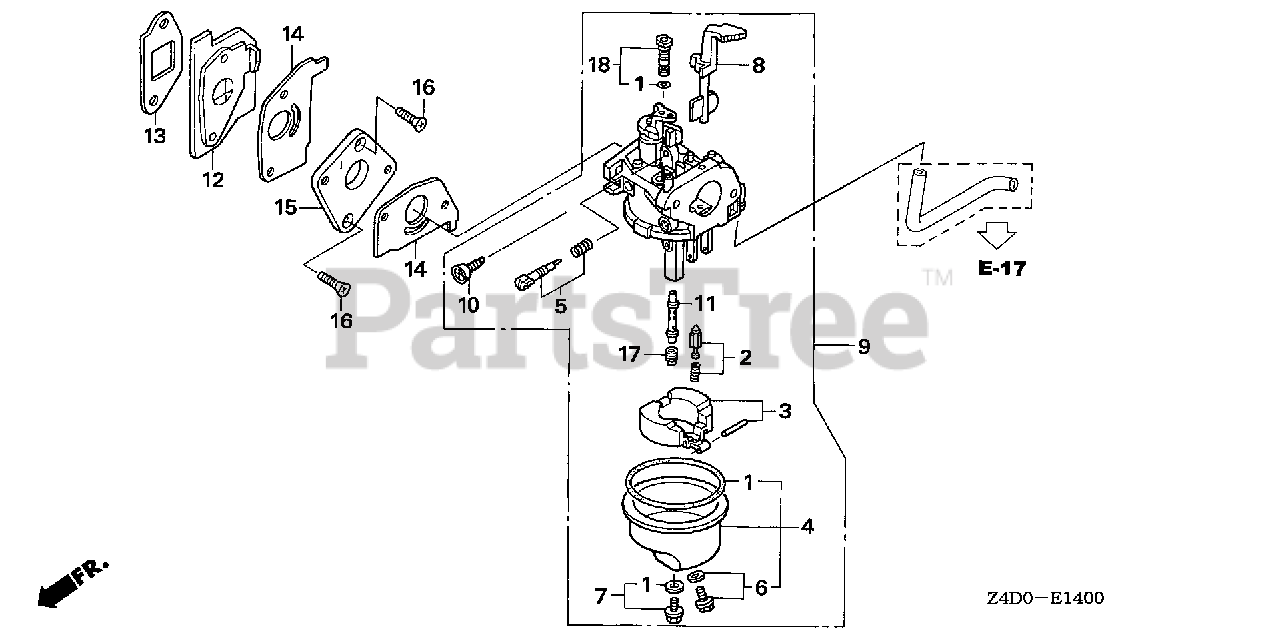

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZG2-D10

GASKET SET

$13.99

$

Usually ships in 3-6 days

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$28.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZG0-811

CHAMBER SET, FLOAT

$40.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$20.99

$

In Stock, only 3 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZG0-811

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZW6-611)

$14.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET

$14.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZM7-003

CHOKE SET

$39.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZN4-804

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF31D D)

$68.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZN4-801

NOZZLE, MAIN

$21.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZN4-000

INSULATOR, CARBURETOR

$9.49

$

In Stock, only 1 left!

0

13

Honda 16212-ZM7-000

GASKET, INSULATOR

$2.49

$

In Stock, Qty 5

0

14

Honda 16221-ZG0-801

GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

15

Honda 16225-ZN4-000

PLATE, CARBURETOR JOINT

$17.99

$

In Stock, only 2 left!

0

16

Honda 93600-05020-0A

SCREW, FLAT (5X20)

$1.49

$

In Stock, Qty 10

0

17

Honda 99101-ZG0-0480

JET, MAIN (#48)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

17

Honda 99101-ZG0-0500

JET, MAIN (#50)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

17

Honda 99101-ZG0-0520

JET, MAIN (#52)

$10.99

$

Usually ships in 3-6 days

0

18

Honda 99204-ZE2-0350

JET SET, PILOT (#35)

$14.99

$

Usually ships in 3-6 days

0
