GXV50 U VA (GJAAK) - Honda Engine, Made in Japan (SN: GJAAK-1000001 - GJAAK-9999999) FUEL TANK Parts Diagram

Engine, Made in Japan

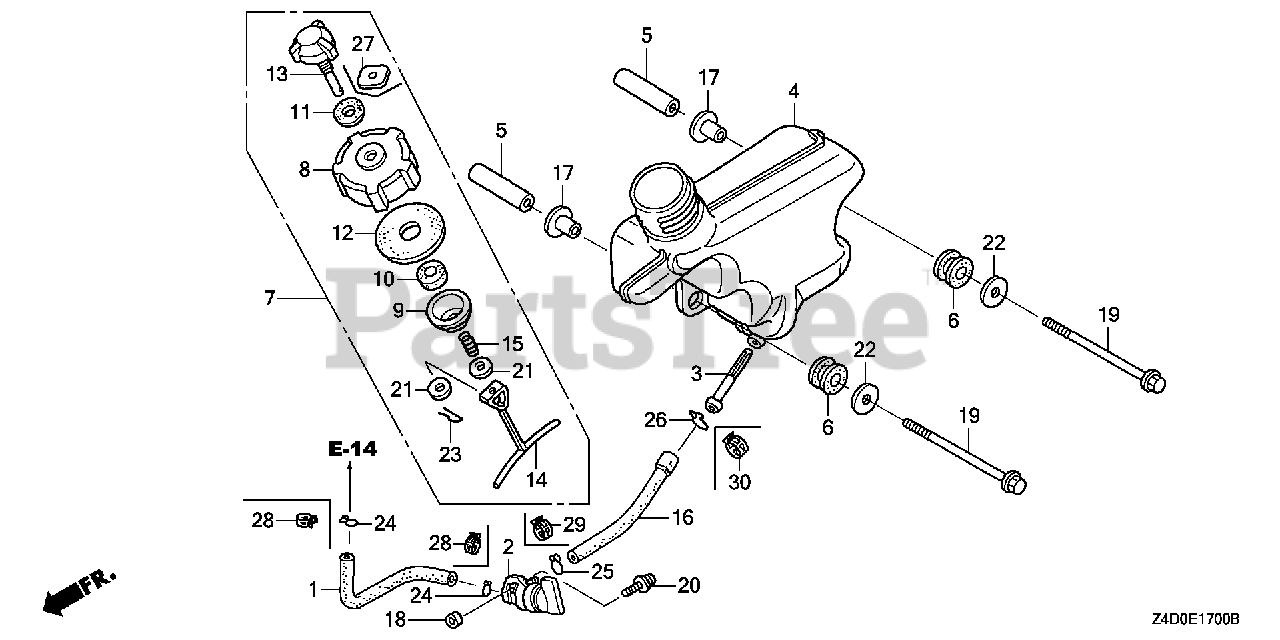

FUEL TANK Parts Diagram

  • Title

1

Honda 16861-ZN4-800

TUBE B, FUEL

Note: Use up to Engine SN 1005694.

$4.49

$

Usually ships in 3-6 days

0

1

Honda 16861-Z4D-003

TUBE B, FUEL (FKM)

Note: Use from Engine SN 1005695.

$6.99

$

Usually ships in 3-6 days

0

2

Honda 16950-ZM0-003

PETCOCK ASSY.

$9.99

$

In Stock, Qty 12

0

3

Honda 16952-ZE6-000

FILTER, FUEL

$9.49

$

In Stock, only 2 left!

0

4

Honda 17510-ZN4-000

TANK, FUEL

Note: Use up to Engine SN 1000278.

$52.99

$

Usually ships in 3-6 days

0

4

Honda 17511-Z4D-000

TANK, FUEL

Note: Use from Engine SN 1000279.

$34.99

$

Usually ships in 3-6 days

0

4

Honda 17511-Z4D-305

TANK, FUEL (FOR U.S.A.)
(Superseded to 17511-Z4D-820)

Note: Use from Engine SN 1004841.

$

$

Not available

5

Honda 17517-ZN4-000

COLLAR, TANK SETTING

$3.49

$

Usually ships in 3-6 days

0

6

Honda 17532-ZM7-000

RUBBER A, TANK MOUNTING

$2.49

$

In Stock, only 3 left!

0

7

Honda 17620-ZV0-020

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZV0-050)

Note: Use up to Engine SN 1003281.

$20.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZV0-040

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK
(Superseded to 17620-ZV0-050)

$20.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZV0-040

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK
(Superseded to 17620-ZV0-050)

Note: Use from Engine SN 1201976.

$20.99

$

Usually ships in 3-6 days

0

8

Honda 17621-ZV0-020

SEE PART DETAILS - SUP; BODY, FUEL CAP
(Superseded to 17621-ZV0-030)

Note: Use up to Engine SN 1003281.

$8.99

$

Usually ships in 3-6 days

0

8

Honda 17621-ZV0-030

SEE PART DETAILS - PRI; BODY, FUEL CAP

$8.99

$

Usually ships in 3-6 days

0

9

Honda 17622-ZV0-000

INNER, FUEL CAP

$4.49

$

Usually ships in 3-6 days

0

10

Honda 17623-ZV0-000

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 3 left!

0

11

Honda 17624-ZV0-000

GASKET, VALVE

Note: Use up to Engine SN 1003281.

$1.99

$

Usually ships in 3-6 days

0

12

Honda 17625-ZV0-000

GASKET, FUEL CAP

$4.49

$

In Stock, only 3 left!

0

13

Honda 17626-ZV0-020

VALVE, BREATHER

$7.99

$

Usually ships in 3-6 days

0

14

Honda 17628-ZV0-000

LINK, FUEL CAP

$4.49

$

Usually ships in 3-6 days

0

15

Honda 17629-ZV0-000

SPRING, FUEL CAP

$3.49

$

In Stock, only 1 left!

0

16

Honda 17701-ZN4-800

TUBE, FUEL TANK

Note: Use up to Engine SN 1005694.

$3.49

$

Usually ships in 3-6 days

0

16

Honda 17701-Z4D-003

TUBE, FUEL (FKM)

Note: Use from Engine SN 1005695.

$

$

Not available

17

Honda 19052-MB4-880

COLLAR, CANISTER MOUNTING

$5.49

$

Usually ships in 3-6 days

0

18

Honda 33609-GK4-620

COLLAR, FR. TURN SIGNAL

$3.49

$

In Stock, only 1 left!

0

19

Honda 90015-ZG0-801

BOLT, FLANGE (6X65)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 93891-05010-08

SCREW-WASHER (5X10)

$1.49

$

In Stock, Qty 5

0

21

Honda 94101-04200

WASHER, PLAIN (4MM)

$0.99

$

Usually ships in 3-6 days

0

22

Honda 94103-06800

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

23

Honda 94251-04000

PIN, LOCK (4MM)

$0.99

$

Usually ships in 3-6 days

0

24

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 1005694.

$2.49

$

In Stock, Qty 20+

0

25

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use up to Engine SN 1005694.

$2.49

$

In Stock, Qty 16

0

26

Honda 95002-02130

CLIP, TUBE (B12.5)

Note: Use up to Engine SN 1005694.

$1.49

$

In Stock, Qty 5

0

28

Honda 95002-40800-08

CLAMP, TUBE (D8)

Note: Use from Engine SN 1005695.

$2.99

$

In Stock, only 4 left!

0

29

Honda 95002-41000-08

CLAMP, TUBE (D10)

Note: Use from Engine SN 1005695.

$3.49

$

Usually ships in 3-6 days

0

30

Honda 95002-41200-08

CLAMP, TUBE (D12)

Note: Use from Engine SN 1005695.

$3.49

$

In Stock, only 2 left!

0
