GXV50 SAR (GJAG) - Honda Engine, Made in Japan (SN: GJAG-1000001 - GJAG-1099999) FUEL TANK Parts Diagram

Engine, Made in Japan

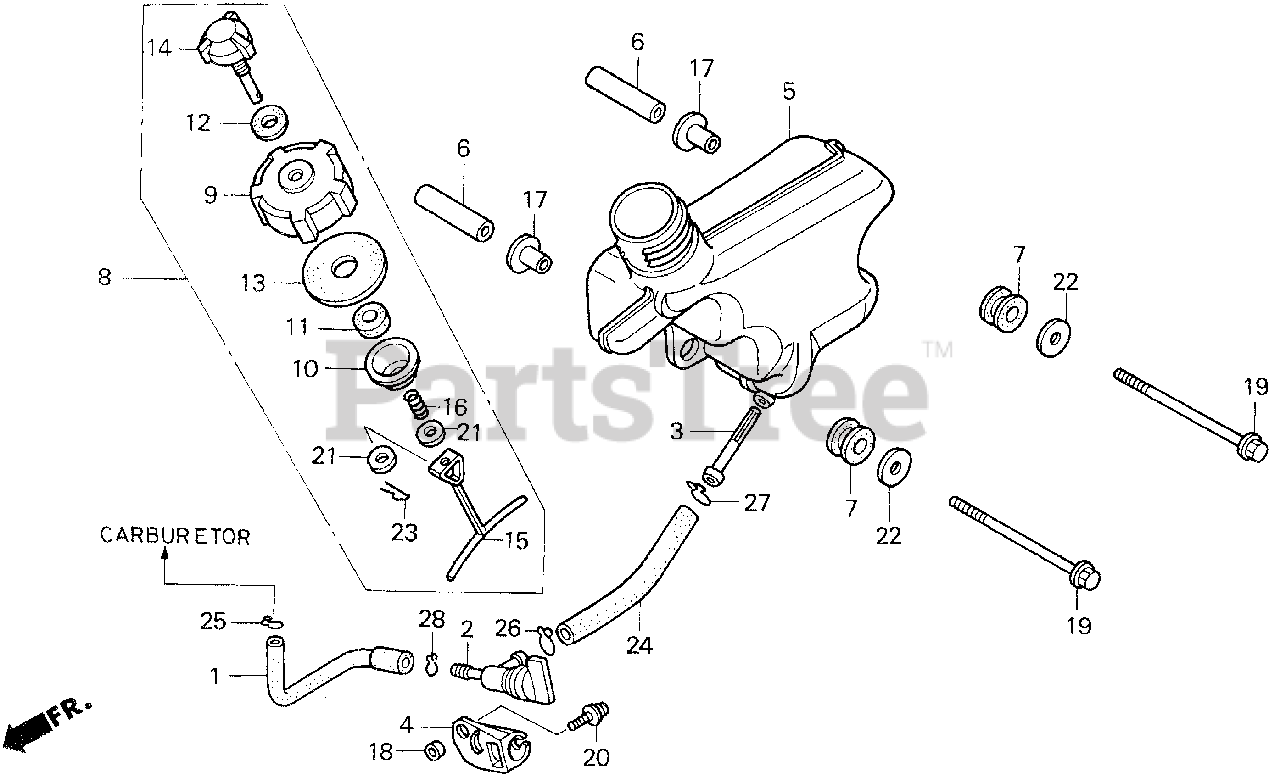

FUEL TANK Parts Diagram

  • Title

1

Honda 16861-ZN4-000

TUBE B, FUEL

Note: (Honda Code 5988621).

$

$

Not available

2

Honda 16950-ZG9-M02

PETCOCK ASSY. (MAN)
(Superseded to 16950-ZG9-M03)

Note: (Honda Code 5028923).

$47.99

$

Usually ships in 3-6 days

0

3

Honda 16952-ZE6-000

FILTER, FUEL

Note: (Honda Code 1452945).

$9.49

$

In Stock, only 2 left!

0

4

Honda 16956-ZM0-000

BRACKET, PETCOCK

Note: (Honda Code 5580394).

$2.99

$

In Stock, only 1 left!

0

5

Honda 17510-ZN4-000

TANK, FUEL

Note: (Honda Code 5988696).

$47.99

$

Usually ships in 3-6 days

0

6

Honda 17517-ZN4-000

COLLAR, TANK SETTING

Note: (Honda Code 5988704).

$3.49

$

Usually ships in 3-6 days

0

7

Honda 17532-ZM7-000

RUBBER A, TANK MOUNTING

Note: (Honda Code 5988712).

$2.49

$

In Stock, only 3 left!

0

8

Honda 17620-ZV0-020

CAP ASSY., FUEL TANK
(Superseded to 17620-ZV0-050)

Note: (Honda Code 7029242).

$19.99

$

Usually ships in 3-6 days

0

9

Honda 17621-ZV0-020

BODY, FUEL CAP
(Superseded to 17621-ZV0-030)

Note: (Honda Code 7066210).

$8.49

$

Usually ships in 3-6 days

0

10

Honda 17622-ZV0-000

INNER, FUEL CAP

Note: (Honda Code 1814755).

$4.49

$

Usually ships in 3-6 days

0

11

Honda 17623-ZV0-000

SPONGE, FUEL CAP BREATHER

Note: (Honda Code 1814763).

$2.49

$

In Stock, only 3 left!

0

12

Honda 17624-ZV0-000

GASKET, VALVE

Note: (Honda Code 1814771).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 17625-ZV0-000

GASKET, FUEL CAP

Note: (Honda Code 1814789).

$4.49

$

In Stock, only 3 left!

0

14

Honda 17626-ZV0-010

VALVE, BREATHER

Note: (Honda Code 1882638).

$7.99

$

Usually ships in 3-6 days

0

15

Honda 17628-ZV0-000

LINK, FUEL CAP

Note: (Honda Code 1814805).

$4.49

$

Usually ships in 3-6 days

0

16

Honda 17629-ZV0-000

SPRING, FUEL CAP

Note: (Honda Code 1814813).

$2.99

$

In Stock, only 1 left!

0

17

Honda 19052-MB4-880

COLLAR, CANISTER MOUNT

Note: (Honda Code 1781517).

$5.49

$

Usually ships in 3-6 days

0

18

Honda 33609-GK4-620

COLLAR, FR. TURN SIGNAL

Note: (Honda Code 2499440).

$3.49

$

In Stock, only 1 left!

0

19

Honda 90015-ZG0-801

BOLT, FLANGE (6X65)

Note: (Honda Code 1809607).

$3.99

$

Usually ships in 3-6 days

0

20

Honda 93891-05010-08

SCREW-WASHER (5X10)

Note: (Honda Code 0671636).

$1.49

$

In Stock, Qty 5

0

21

Honda 94101-04200

WASHER, FLAT (4MM)

Note: (Honda Code 0315713).

$0.99

$

Usually ships in 3-6 days

0

22

Honda 94103-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0629824).

$1.49

$

In Stock, Qty 10

0

23

Honda 94251-04000

PIN, LOCK (4MM)

Note: (Honda Code 0244343).

$0.99

$

Usually ships in 3-6 days

0

24

Honda 95001-75008-60M

BULK HOSE, FUEL (7.5X8000) (7.5X65)

Note: (Honda Code 4260360).

$155.99

$

Usually ships in 3-6 days

0

25

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, only 4 left!

0

26

Honda 95002-02120

CLIP, TUBE (B12)

Note: (Honda Code 0335034).

$2.99

$

In Stock, only 2 left!

0

27

Honda 95002-02130

CLIP, TUBE (B12.5)

Note: (Honda Code 0323352).

$1.49

$

In Stock, Qty 5

0

28

Honda 95002-50000

CLIP, TUBE (C9)

Note: (Honda Code 0053447).

$1.99

$

In Stock, only 2 left!

0
