GXV50 SA (GJAG) - Honda Engine, Made in Japan (SN: GJAG-1000001 - GJAG-1099999) MUFFLER Parts Diagram

Engine, Made in Japan

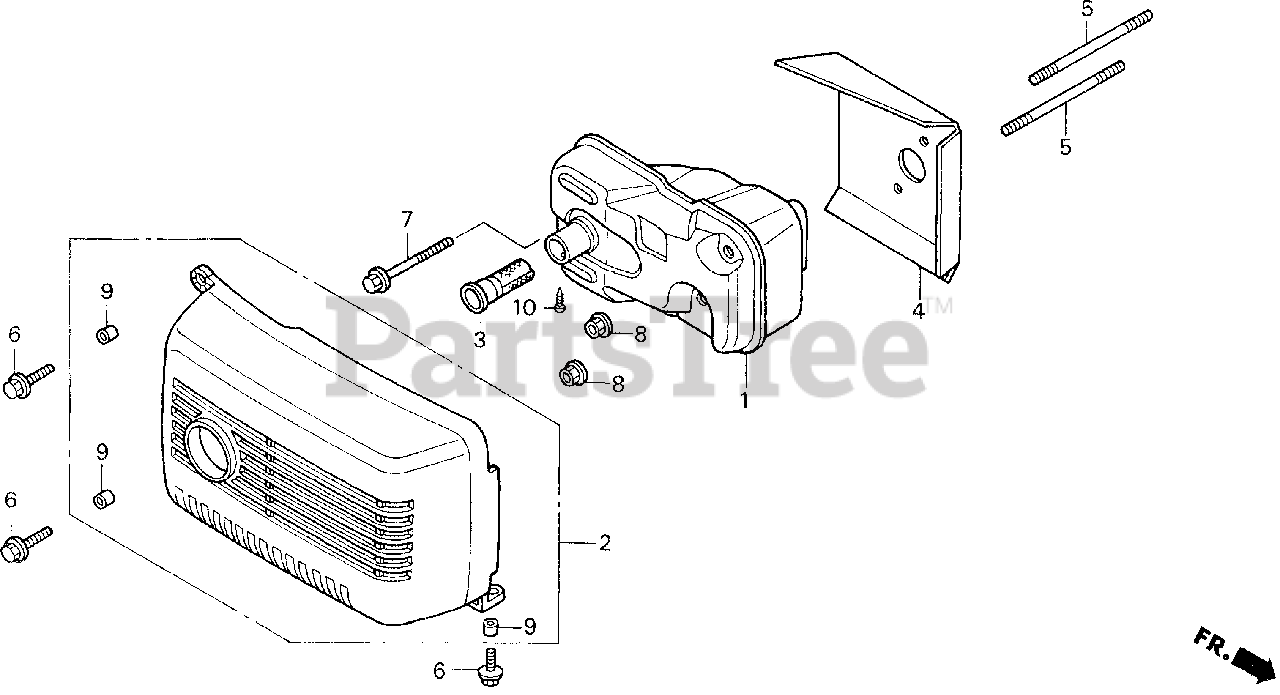

MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZM7-003

MUFFLER
(Superseded to 18310-ZM7-801)

Note: (Honda Code 5988720).

$40.99

$

Usually ships in 3-6 days

0

1

Honda 18310-ZM7-801

MUFFLER

Note: (Optional). (Honda Code 5988738).

$40.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZM7-000

PROTECTOR, MUFFLER

Note: (Honda Code 5988746).

$31.99

$

Usually ships in 3-6 days

0

3

Honda 18350-ZM7-801

ARRESTER, SPARK

Note: (Optional). (Honda Code 5988753).

$24.99

$

Usually ships in 3-6 days

0

4

Honda 18515-ZM7-000

GUIDE, AIR

Note: (Honda Code 5988761).

$5.99

$

Usually ships in 3-6 days

0

5

Honda 90002-ZM7-000

BOLT 2, STUD (5X55)

Note: (Honda Code 5988928).

$2.99

$

Usually ships in 3-6 days

0

6

Honda 90012-892-000

BOLT, FLANGE (5X16)

Note: (Honda Code 0941096).

$2.49

$

In Stock, only 3 left!

0

7

Honda 90103-P4V-010

BOLT, FLANGE (5X35)

Note: (Honda Code 5733852).

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90136-SM4-901

NUT, SELF-LOCK (5MM)

Note: (Honda Code 3596095).

$8.49

$

Usually ships in 3-6 days

0

9

Honda 91502-ZM3-000

COLLAR, TOP COVER

Note: (Honda Code 5384540).

$1.99

$

In Stock, Qty 6

0

10

Honda 93903-24110

SCREW, TAPPING (4X8)

Note: (Optional). (Honda Code 1545052).

$1.49

$

Usually ships in 3-6 days

0
