GXV50 SA (GJAG) - Honda Engine, Made in Japan (SN: GJAG-1000001 - GJAG-1099999) CAMSHAFT Parts Diagram

Engine, Made in Japan

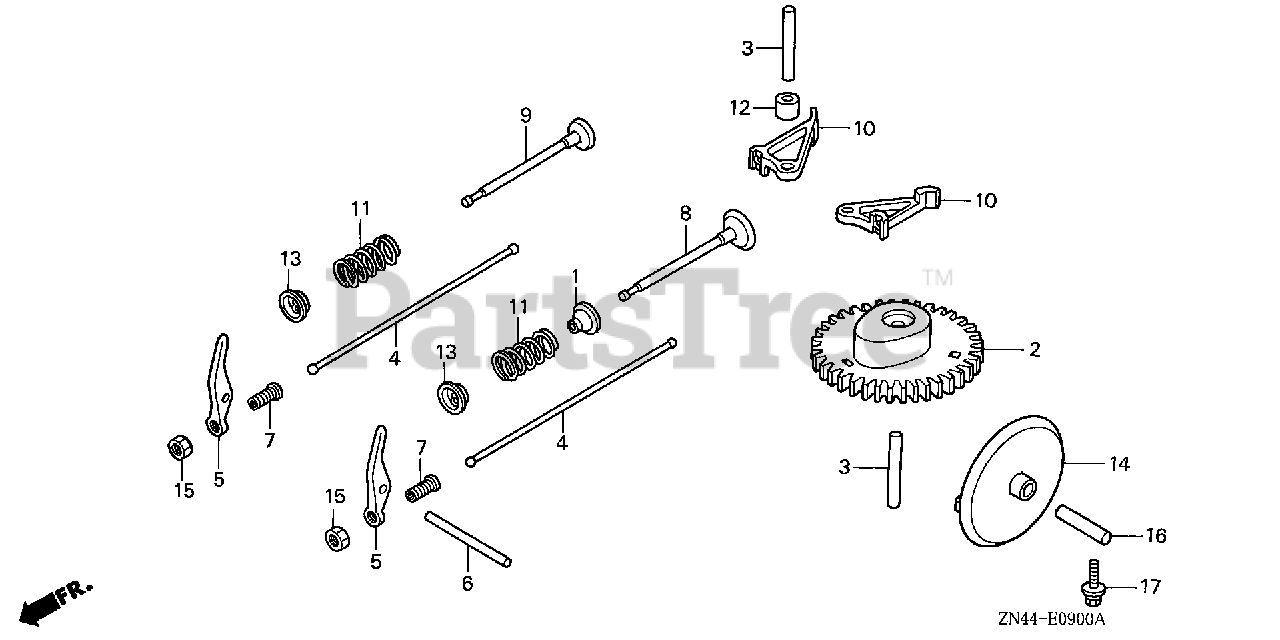

CAMSHAFT Parts Diagram

  • Title
1

Honda 12209-ZM7-003

SEAL, VALVE STEM

Note: (Honda Code 5988225).

$8.99

$

In Stock, only 2 left!

0

2

Honda 14100-ZM7-010

CAMSHAFT ASSY.

Note: (Honda Code 6222012).

$24.99

$

In Stock, only 1 left!

0

3

Honda 90702-P6R-008

PIN, OIL PUMP

Note: (Honda Code 6062632).

$7.49

$

Usually ships in 3-6 days

0

4

Honda 14410-ZM7-000

ROD, PUSH

Note: (Honda Code 5988324).

$6.49

$

In Stock, only 2 left!

0

5

Honda 14431-ZM7-000

ARM, VALVE ROCKER

Note: (Honda Code 5988332).

$15.99

$

Usually ships in 3-6 days

0

6

Honda 14435-ZM7-003

ROLLER (4X37.8)

Note: (Honda Code 5988340).

$1.99

$

In Stock, only 4 left!

0

7

Honda 14451-ZM7-000

PIVOT, ROCKER ARM

Note: (Honda Code 5988357).

$3.99

$

Usually ships in 3-6 days

0

8

Honda 14711-ZM7-000

VALVE, IN.
(Superseded to 14711-ZM7-010)

Note: (Honda Code 5988365).

$9.99

$

Usually ships in 3-6 days

0

9

Honda 14721-ZM7-000

VALVE, EX.
(Superseded to 14721-ZM7-010)

Note: (Honda Code 5988373).

$10.99

$

Usually ships in 3-6 days

0

10

Honda 14731-ZM7-013

LIFTER, VALVE

Note: (Honda Code 6222020).

$8.49

$

Usually ships in 3-6 days

0

11

Honda 14751-ZM7-000

SPRING, VALVE

Note: (Honda Code 5988399).

$1.99

$

Usually ships in 3-6 days

0

12

Honda 14754-ZM7-000

COLLAR, LIFTER

Note: (Honda Code 5988407).

$2.49

$

In Stock, only 3 left!

0

13

Honda 14771-ZM3-000

RETAINER, VALVE SPRING
(Superseded to 14771-ZDF-000)

Note: Use up to Engine SN 1003434. (Honda Code 5383385).

$1.49

$

In Stock, only 3 left!

0

13

Honda 14771-ZM3-010

RETAINER, VALVE SPRING
(Superseded to 14771-ZDF-000)

Note: (Honda Code 6133110).

$1.49

$

In Stock, only 3 left!

0

14

Honda 15361-ZN4-000

SLINGER, OIL

Note: (Honda Code 5988423).

$6.49

$

Usually ships in 3-6 days

0

15

Honda 90206-KM3-000

NUT, TAPPET ADJ.

Note: (Honda Code 1846849).

$1.99

$

Usually ships in 3-6 days

0

16

Honda 91151-VB5-800

ROLLER (6X25)

Note: (Honda Code 2503167).

$2.49

$

Usually ships in 3-6 days

0

17

Honda 93404-05016-08

BOLT-WASHER (5X16)

Note: (Honda Code 5989025).

$2.49

$

Usually ships in 3-6 days

0
