GXV390 UT1 DNE4 (GJADT) - Honda Engine, Made in Thailand (SN: GJADT-1000001 - GJADT-9999999) STARTER MOTOR Parts Diagram

Engine, Made in Thailand

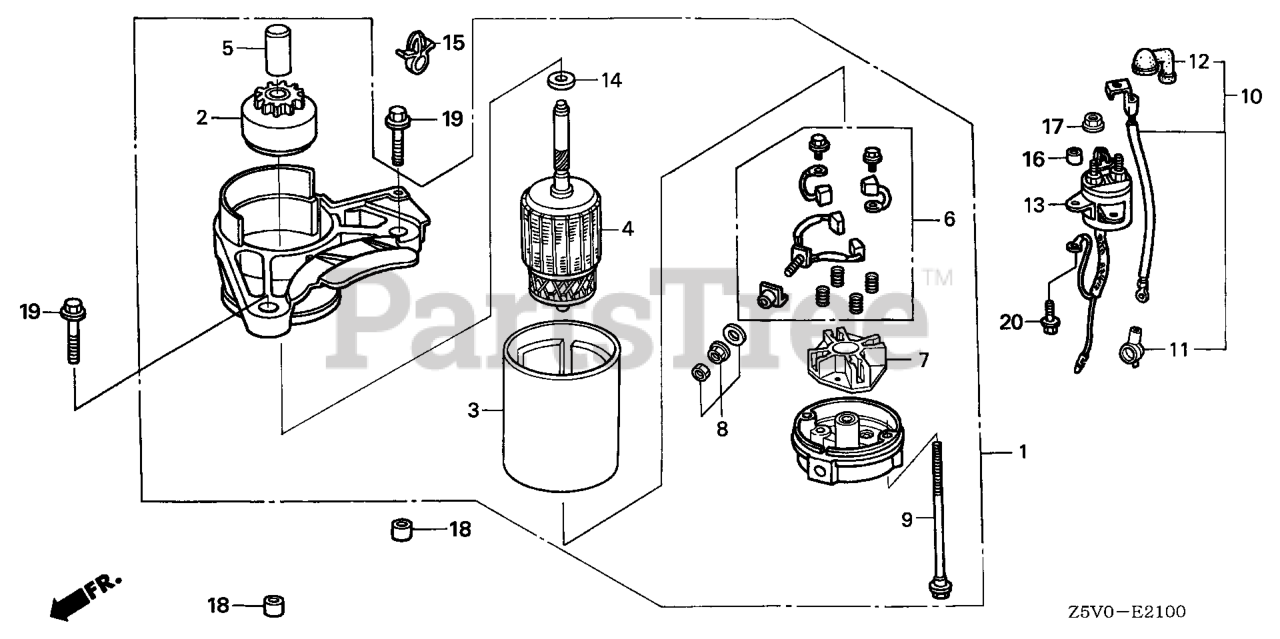

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31200-ZF5-L32

SEE PART DETAILS - PRI; MOTOR ASSY., STARTER

$227.99

$

Usually ships in 3-6 days

0

2

Honda 31206-ZF5-L31

DRIVE ASSY.

$132.99

$

Usually ships in 3-6 days

0

3

Honda 31216-ZJ1-004

YOKE

$27.99

$

Usually ships in 3-6 days

0

4

Honda 31217-ZF5-L31

ARMATURE

$60.99

$

Usually ships in 3-6 days

0

5

Honda 31225-ZF5-L31

STOPPER SET, PINION

$87.99

$

Usually ships in 3-6 days

0

6

Honda 31226-ZF5-L31

SEE PART DETAILS - PRI; BRUSH SET

$24.99

$

Usually ships in 3-6 days

0

7

Honda 31231-ZJ1-004

HOLDER, BRUSH

$7.99

$

Usually ships in 3-6 days

0

8

Honda 31237-ZJ1-004

NUT SET, TERMINAL

$1.49

$

Usually ships in 3-6 days

0

9

Honda 31261-ZF5-L31

BOLT, THROUGH

$3.99

$

Usually ships in 3-6 days

0

10

Honda 32402-ZF5-V00

WIRE, MAGNETIC SWITCH

$29.99

$

Usually ships in 3-6 days

0

11

Honda 32411-ZV4-811

COVER, STARTER TERMINAL

$7.99

$

Usually ships in 3-6 days

0

12

Honda 32412-ZV4-811

COVER, MAGNETIC SWITCH TERMINAL

$7.99

$

Usually ships in 3-6 days

0

13

Honda 35850-ZF5-V01

SWITCH ASSY., STARTER MAGNETIC

$112.99

$

In Stock, only 1 left!

0

14

Honda 90407-ZF5-L31

WASHER, THRUST

$7.99

$

Usually ships in 3-6 days

0

16

Honda 91503-ZY1-300

COLLAR (6.5X11X10)

Note: Use from Engine SN 1013546.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 91504-ZF5-V00

COLLAR, DISTANCE

Note: Use up to Engine SN 1013545.

$

$

Not available

17

Honda 94070-06080

SEE PART DETAILS - PRI; NUT-WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94301-10120

SEE PART DETAILS - PRI; PIN, DOWEL (10X12)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$3.49

$

In Stock, Qty 8

0

20

Honda 96001-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0
