GXV390 UT1 DFWT (GJADT) - Honda Engine, Made in Thailand (SN: GJADT-1000001 - GJADT-9999999) CONTROL (2) Parts Diagram

Engine, Made in Thailand

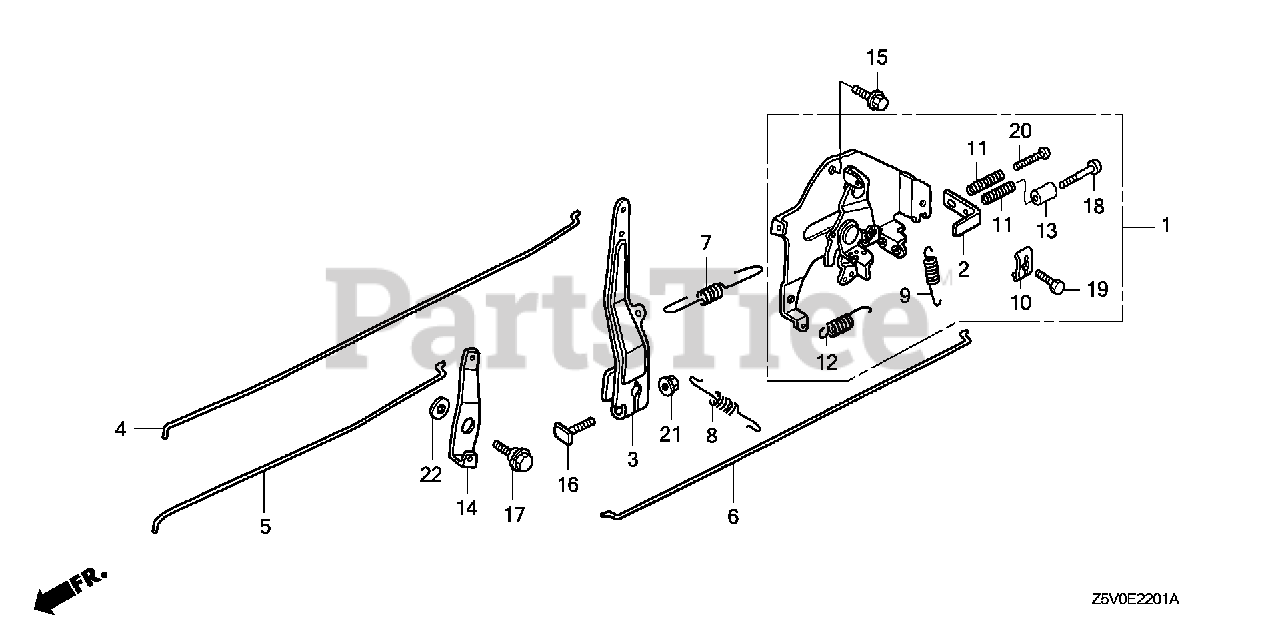

CONTROL (2) Parts Diagram

  • Title

1

Honda 16500-ZF5-U20

CONTROL ASSY.

$55.99

$

Usually ships in 3-6 days

0

2

Honda 16539-ZF5-L40

PLATE, SCREW ADJUST GUARD

$3.99

$

Usually ships in 3-6 days

0

3

Honda 16551-ZF5-000

ARM, GOVERNOR

$15.99

$

Usually ships in 3-6 days

0

4

Honda 16555-ZE9-000

ROD, GOVERNOR

$5.49

$

In Stock, only 1 left!

0

5

Honda 16556-ZE9-000

ROD, CHOKE

$4.49

$

In Stock, only 1 left!

0

6

Honda 16557-ZE8-000

ROD, JOINT

$4.49

$

Usually ships in 3-6 days

0

7

Honda 16561-ZF5-000

SPRING, GOVERNOR

$4.99

$

In Stock, only 1 left!

0

8

Honda 16563-ZE8-000

SPRING, GOVERNOR PRIMARY

$

$

Not available

9

Honda 16574-ZF5-L00

SPRING, LEVER

$3.99

$

Usually ships in 3-6 days

0

10

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

In Stock, only 1 left!

0

11

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

12

Honda 16592-732-700

SPRING, CABLE RETURN

$4.99

$

In Stock, only 1 left!

0

13

Honda 16599-ZG1-M10

COLLAR, STOPPER

$3.99

$

Usually ships in 3-6 days

0

14

Honda 16619-ZF5-000

LEVER, CHOKE JOINT

$6.99

$

In Stock, only 1 left!

0

15

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

16

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

17

Honda 90015-ZE8-000

BOLT, FLANGE (6MM)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90016-ZG1-M10

SCREW, RECESSED (5X35)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 92301-05022-0A

BOLT, RECESSED (5X22)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

22

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0
