GXV390 UT1 DAXD (GJADT) - Honda Engine, Made in Thailand (SN: GJADT-1000001 - GJADT-9999999) CYLINDER HEAD Parts Diagram

Engine, Made in Thailand

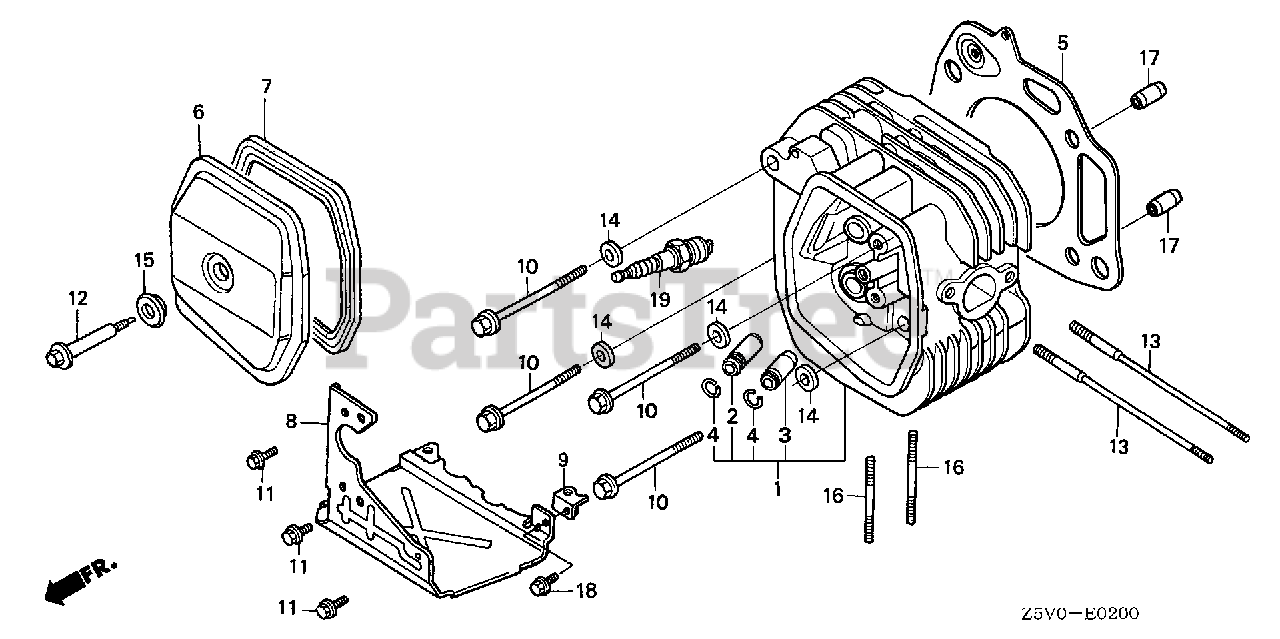

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-Z1E-405

SEE PART DETAILS - PRI; CYLINDER HEAD

$134.99

$

Usually ships in 3-6 days

0

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZF5-H03

GASKET, CYLINDER HEAD

$70.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE8-000

COVER, HEAD (Honda Code 2089613).

$23.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE8-000

GASKET, CYLINDER HEAD COVER (Honda Code 2089670).

$18.99

$

In Stock, only 2 left!

0

8

Honda 18345-ZF5-030

COVER (LOWER)

$44.99

$

Usually ships in 3-6 days

0

9

Honda 18347-ZE8-000

STAY, COVER (LOWER) (Honda Code 2278729).

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90003-Z1E-000

BOLT, FLANGE (10X85)

$6.49

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 19

0

12

Honda 90014-ZE8-000

BOLT, HEAD COVER (Honda Code 2092955).

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90042-ZE8-000

BOLT, STUD (8X131.5) (Honda Code 2106656).

$8.99

$

Usually ships in 3-6 days

0

14

Honda 90401-437-000

WASHER, PLAIN (10MM) (Honda Code 0768051).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER (Honda Code 2293918).

$6.49

$

In Stock, Qty 6

0

16

Honda 92900-08032-0B

SEE PART DETAILS - PRI; BOLT, STUD (8X32) (Honda Code 1803451).

$2.99

$

Usually ships in 3-6 days

0

17

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$3.49

$

Usually ships in 3-6 days

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 19

0

19

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.49

$

In Stock, Qty 20+

0
