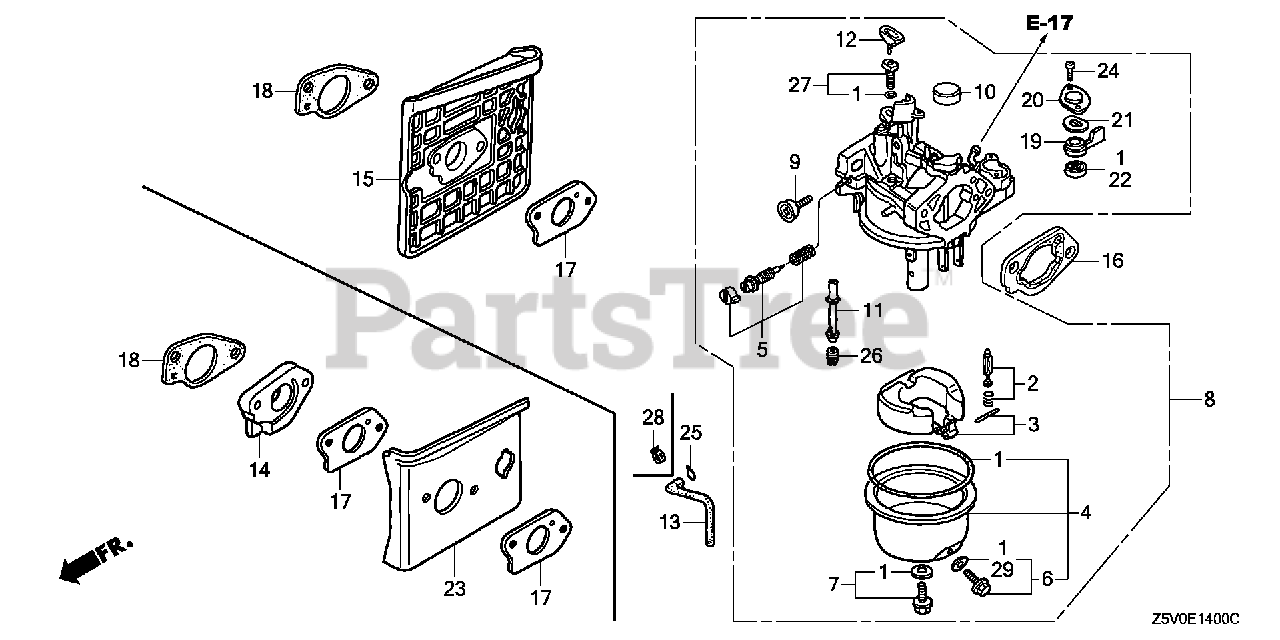

GXV390 UT1 DAXB (GJADT) - Honda Engine, Made in Thailand (SN: GJADT-1000001 - GJADT-9999999) CARBURETOR Parts Diagram

Engine, Made in Thailand

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-015

SEE PART DETAILS - PRI; GASKET SET (EXC. 16173-001-004) (CARBURETOR NO.) (EXCEPT 16173-001-004)

$19.99

$

In Stock, only 2 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$43.99

$

In Stock, only 2 left!

0

3

Honda 16013-Z1C-003

FLOAT SET (CARBURETOR NO.)

$53.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$44.99

$

Usually ships in 3-6 days

0

5

Honda 16016-Z5V-WA1

SCREW SET

$8.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 3 left!

0

8

Honda 16100-Z5V-WA1

CARBURETOR ASSY. (BE81P A)

$52.99

$

Usually ships in 3-6 days

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

11

Honda 16166-Z5V-WA1

NOZZLE, MAIN

$4.49

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SET (Honda Code 3738358).

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16199-ZE8-000

TUBE, AIR VENT (75MM) (Honda Code 2278406).

$5.99

$

Usually ships in 3-6 days

0

15

Honda 16211-Z5V-900

INSULATOR, CARBURETOR

$8.99

$

Usually ships in 3-6 days

0

16

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

Usually ships in 3-6 days

0

17

Honda 16221-Z8T-000

GASKET, CARBURETOR

$4.99

$

In Stock, Qty 12

0

18

Honda 16223-ZE9-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4145777).

$2.99

$

In Stock, Qty 5

0

19

Honda 16953-ZE1-712

LEVER, VALVE (Honda Code 5266069).

$10.99

$

Usually ships in 3-6 days

0

20

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

21

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

22

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 20+

0

24

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$1.49

$

In Stock, Qty 5

0

25

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

26

Honda 99101-ZH8-0950

SEE PART DETAILS - PRI; JET, MAIN (#95) (Honda Code 6062665).

Note: (Optional)

$7.49

$

In Stock, Qty 11

0

26

Honda 99101-ZH8-0980

JET, MAIN (#98) Use from Engine SN BE87A A to BE87A A.

Note: (Optional)

$7.49

$

In Stock, only 1 left!

0

26

Honda 99101-ZH8-1000

JET, MAIN (#100) Use from Engine SN BE87A A to BE87A A.

$7.49

$

In Stock, Qty 9

0

27

Honda 99204-ZE0-0450

JET SET, PILOT (#45) (CARBURETOR NO.)

$22.99

$

Usually ships in 3-6 days

0

29

Honda 16141-Z0S-003

WASHER, PLAIN (6.2X10.7 DRAIN) (CARBURETOR NO.)

$0.99

$

Usually ships in 3-6 days

0
