GXV390 UA1 DE33 (GJANA) - Honda Engine, Made in USA (SN: GJANA-1000001 - GJANA-9999999) CYLINDER HEAD Parts Diagram

Engine, Made in USA

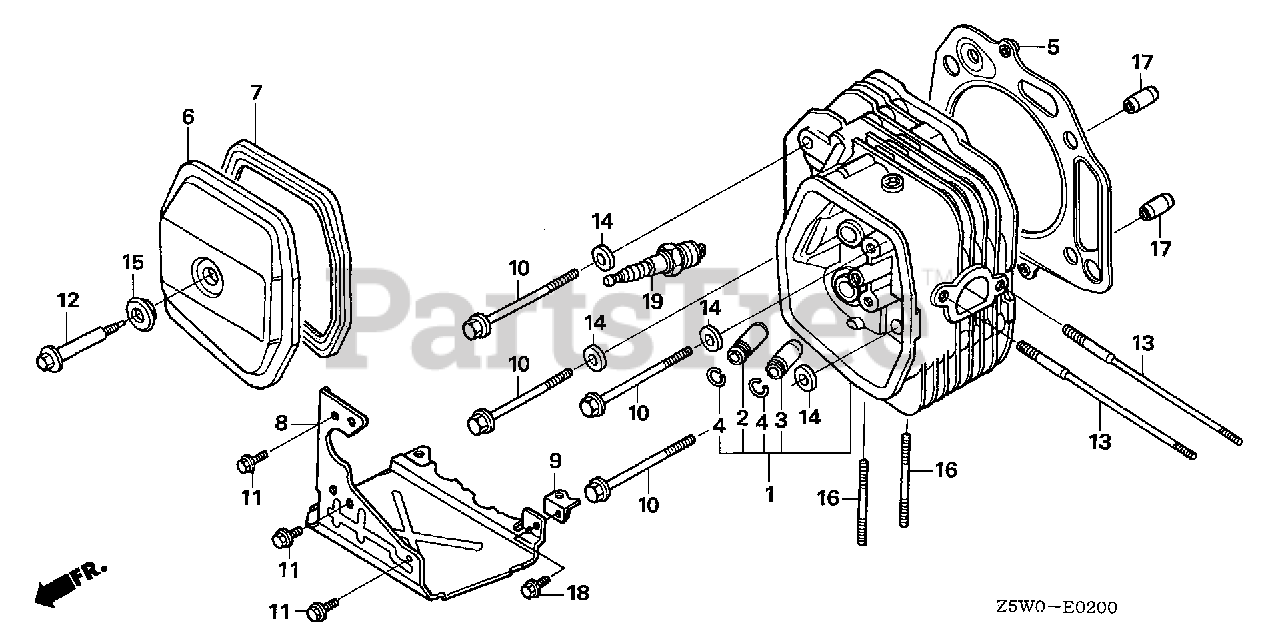

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-Z1E-405

SEE PART DETAILS - PRI; CYLINDER HEAD

$139.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZF5-H03

GASKET, CYLINDER HEAD

$72.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE8-000

COVER, HEAD

$24.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE8-000

GASKET, HEAD COVER

$18.99

$

In Stock, only 2 left!

0

8

Honda 18345-ZF5-020

COVER (LOWER)
(Superseded to 18345-ZF5-030)

$46.99

$

Usually ships in 3-6 days

0

9

Honda 18347-ZE8-000

STAY, COVER (LOWER)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90003-Z1E-000

BOLT, FLANGE (10X85)

$6.49

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

12

Honda 90014-ZE8-000

BOLT, HEAD COVER

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90042-ZE8-000

BOLT, STUD (8X131.5)

$9.49

$

In Stock, only 2 left!

0

14

Honda 90401-437-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90441-ZE2-010

WASHER, HEAD COVER

$6.99

$

In Stock, Qty 12

0

16

Honda 92900-08032-0B

BOLT, STUD (8X32)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

19

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.99

$

In Stock, Qty 20+

0
