GXV390 T1 DP23 (GEAAT) - Honda Engine, Made in Thailand (SN: GEAAT-1000001 - GEAAT-9999999) PISTON@CONNECTING ROD Parts Diagram

Engine, Made in Thailand

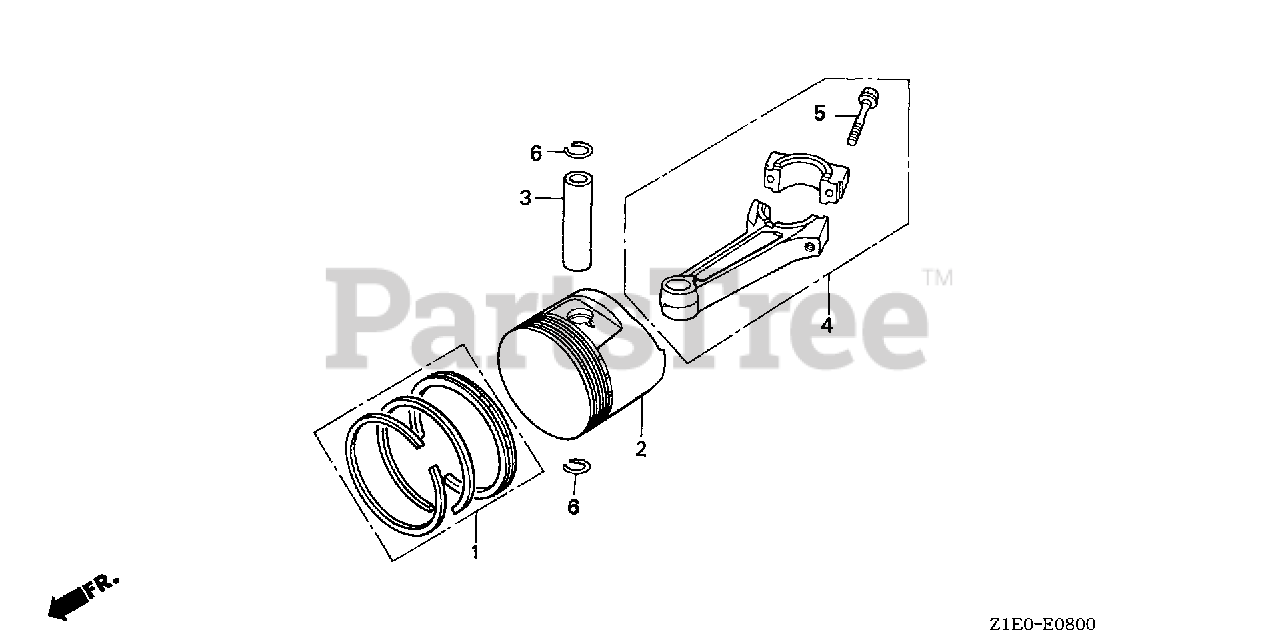

PISTON@CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-Z1C-800

RING SET, PISTON (STD.) (RIKEN)

Note: Use up to Engine SN 1001898.

$79.99

$

Usually ships in 3-6 days

0

1

Honda 13010-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

Note: Use from Engine SN 1001899.

$59.99

$

In Stock, Qty 13

0

1

Honda 13011-Z1C-800

RING SET, PISTON (0.25) (RIKEN)

Note: (Optional).Use up to Engine SN 1001898.

$87.99

$

Usually ships in 3-6 days

0

1

Honda 13011-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional).Use from Engine SN 1001899.

$

$

Not available

1

Honda 13012-Z1C-800

RING SET, PISTON (0.50) (RIKEN)

Note: (Optional).Use up to Engine SN 1001898.

$87.99

$

Usually ships in 3-6 days

0

1

Honda 13012-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional).Use from Engine SN 1001899.

$

$

Not available

1

Honda 13013-Z1C-800

RING SET, PISTON (0.75) (RIKEN)

Note: (Optional).Use up to Engine SN 1001898.

$87.99

$

Usually ships in 3-6 days

0

1

Honda 13013-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional).Use from Engine SN 1001899.

$

$

Not available

2

Honda 13101-ZF6-W00

PISTON (STD)

Note: Use up to Engine SN 1001898.

$77.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z5T-000

PISTON (STD)
(Superseded to 13101-Z5T-010)

Note: Use from Engine SN 1001899.

$29.99

$

In Stock, only 1 left!

0

2

Honda 13102-ZF6-W00

PISTON (OS 0.25)

Note: (Optional).Use up to Engine SN 1001898.

$142.99

$

Usually ships in 3-6 days

0

2

Honda 13102-Z5T-000

PISTON (0.25)

Note: (Optional).Use from Engine SN 1001899.

$

$

Not available

2

Honda 13103-ZF6-W00

PISTON (OS 0.50)

Note: (Optional).Use up to Engine SN 1001898.

$

$

Not available

2

Honda 13103-Z5T-000

PISTON (0.50)

Note: (Optional).Use from Engine SN 1001899.

$

$

Not available

2

Honda 13104-ZF6-W00

PISTON (OS 0.75)

Note: (Optional).Use up to Engine SN 1001898.

$

$

Not available

2

Honda 13104-Z5T-000

PISTON (0.75)

Note: (Optional).Use from Engine SN 1001899.

$

$

Not available

3

Honda 13111-ZF6-000

SEE PART DETAILS - PRI; PIN, PISTON (Honda Code 3134434).

$16.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z1E-000

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$167.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1E-305

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$

$

Not available

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$4.99

$

Usually ships in 3-6 days

0

6

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM) (Honda Code 2108579).

$2.49

$

Usually ships in 3-6 days

0
