GXV390 T1 DN4A (GJAAT) - Honda Engine, Made in Thailand (SN: GJAAT-1000001 - GJAAT-9999999) FUEL TANK Parts Diagram

Engine, Made in Thailand

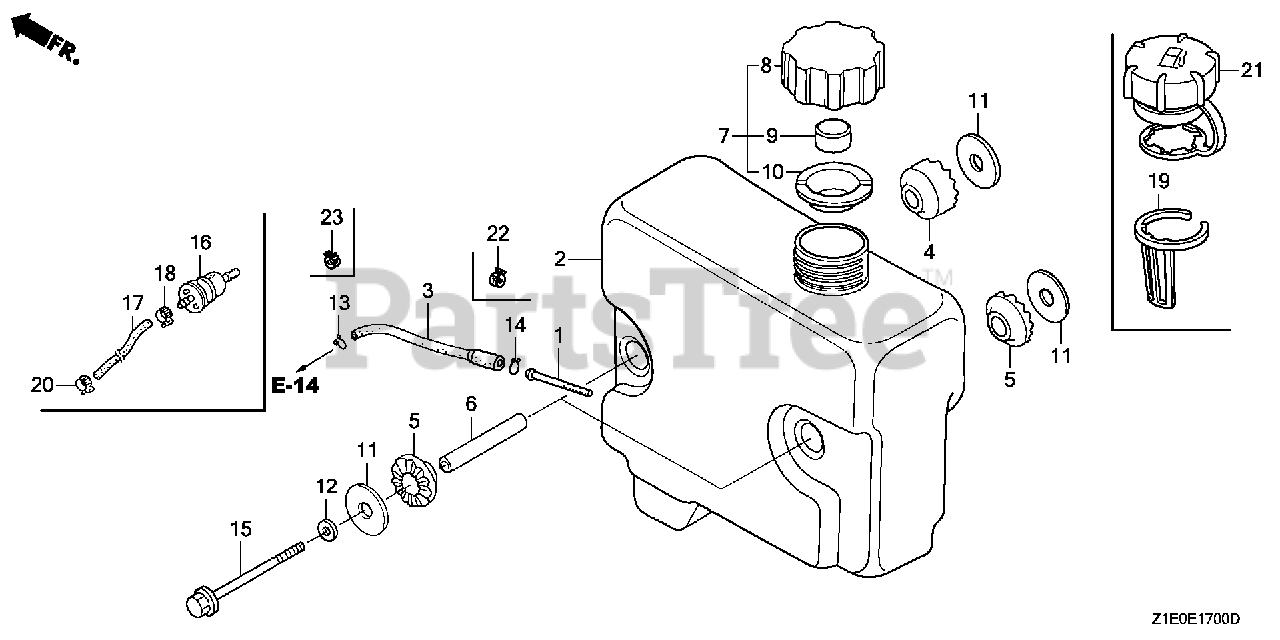

FUEL TANK Parts Diagram

  • Title

1

Honda 16952-ZE6-000

FILTER, FUEL (Honda Code 1452945).

$9.49

$

In Stock, only 2 left!

0

2

Honda 17511-Z5N-801

SEE PART DETAILS - PRI; TANK, FUEL

$90.99

$

In Stock, only 1 left!

0

3

Honda 17512-Z5N-023

SEE PART DETAILS - PRI; TUBE, FUEL (FKM)
(Superseded to 17512-Z5N-033)

$11.99

$

Usually ships in 3-6 days

0

3

Honda 17512-Z5N-033

TUBE, FUEL (FKM)

$11.99

$

Usually ships in 3-6 days

0

4

Honda 17516-ZE8-000

RUBBER B, TANK MOUNTING (Honda Code 2106250).

$9.99

$

Usually ships in 3-6 days

0

5

Honda 17516-896-700

RUBBER B, TANK MOUNTING (Honda Code 0933416).

$8.99

$

In Stock, Qty 12

0

6

Honda 17518-ZE8-000

COLLAR, TANK SETTING (Honda Code 2106268).

$10.99

$

Usually ships in 3-6 days

0

11

Honda 90455-896-700

WASHER, TANK MOUNTING (Honda Code 0933325).

$3.99

$

In Stock, only 2 left!

0

12

Honda 90471-SB0-000

WASHER, PLAIN (8MM)

$8.99

$

Usually ships in 3-6 days

0

15

Honda 95701-08095-00

BOLT, FLANGE (8X95)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 17636-Z5N-000

GAUGE, FUEL LEVEL

$8.49

$

Usually ships in 3-6 days

0

21

Honda 17620-Z0J-800

CAP ASSY., FUEL TANK
(Superseded to 17620-Z8B-800)

$23.99

$

In Stock, Qty 7

0

21

Honda 17620-Z8B-800

CAP ASSY., FUEL TANK

$23.99

$

In Stock, Qty 7

0

22

Honda 95002-41050-08

SEE PART DETAILS - PRI; CLIP, TUBE (10.5MM)

$3.49

$

In Stock, Qty 7

0

23

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, Qty 6

0
