GXV390 RT1 DA23 (GJADT) - Honda Engine, Made in Thailand (SN: GJADT-1000001 - GJADT-9999999) FLYWHEEL Parts Diagram

Engine, Made in Thailand

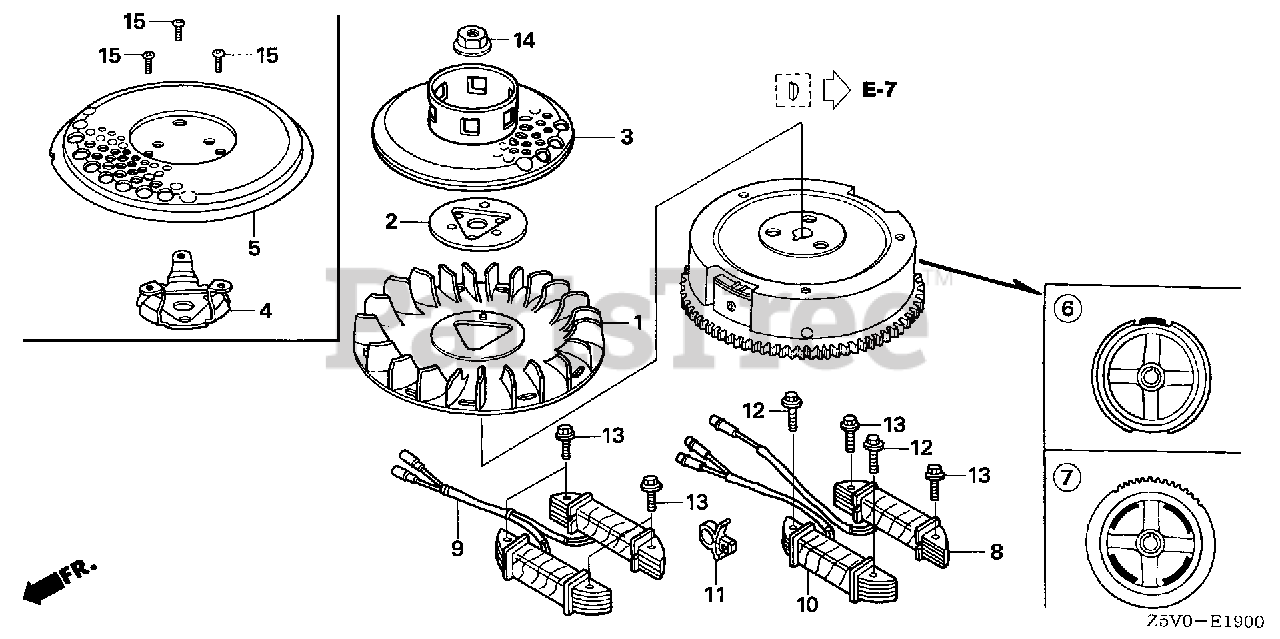

FLYWHEEL Parts Diagram

  • Title
1

Honda 19511-ZE9-010

SEE PART DETAILS - PRI; FAN, COOLING (Honda Code 2485407).
(Superseded to 19511-ZE9-020)

$10.99

$

Usually ships in 3-6 days

0

3

Honda 28450-ZE9-004

PULLEY, STARTER (SCREEN GRID) (Honda Code 4186342).

$70.99

$

Usually ships in 3-6 days

0

6

Honda 31100-ZE9-020

SEE PART DETAILS - PRI; FLYWHEEL (Honda Code 5355870).

$234.99

$

Usually ships in 3-6 days

0

14

Honda 90201-ZE3-V00

NUT, SPECIAL (16MM) (1) (Honda Code 5032727).

Note: Use from Engine SN 1096726.

$10.99

$

Usually ships in 3-6 days

0

14

Honda 90201-ZE3-790

SEE PART DETAILS - PRI; NUT, SPECIAL (16MM)

Note: Use up to Engine SN 1096725.

$11.99

$

Usually ships in 3-6 days

0
