GXV390 K1 DP23 (GEAD) - Honda Engine, Made in USA (SN: GEAD-6000001 - GEAD-9999999) PISTON Parts Diagram

Engine, Made in USA

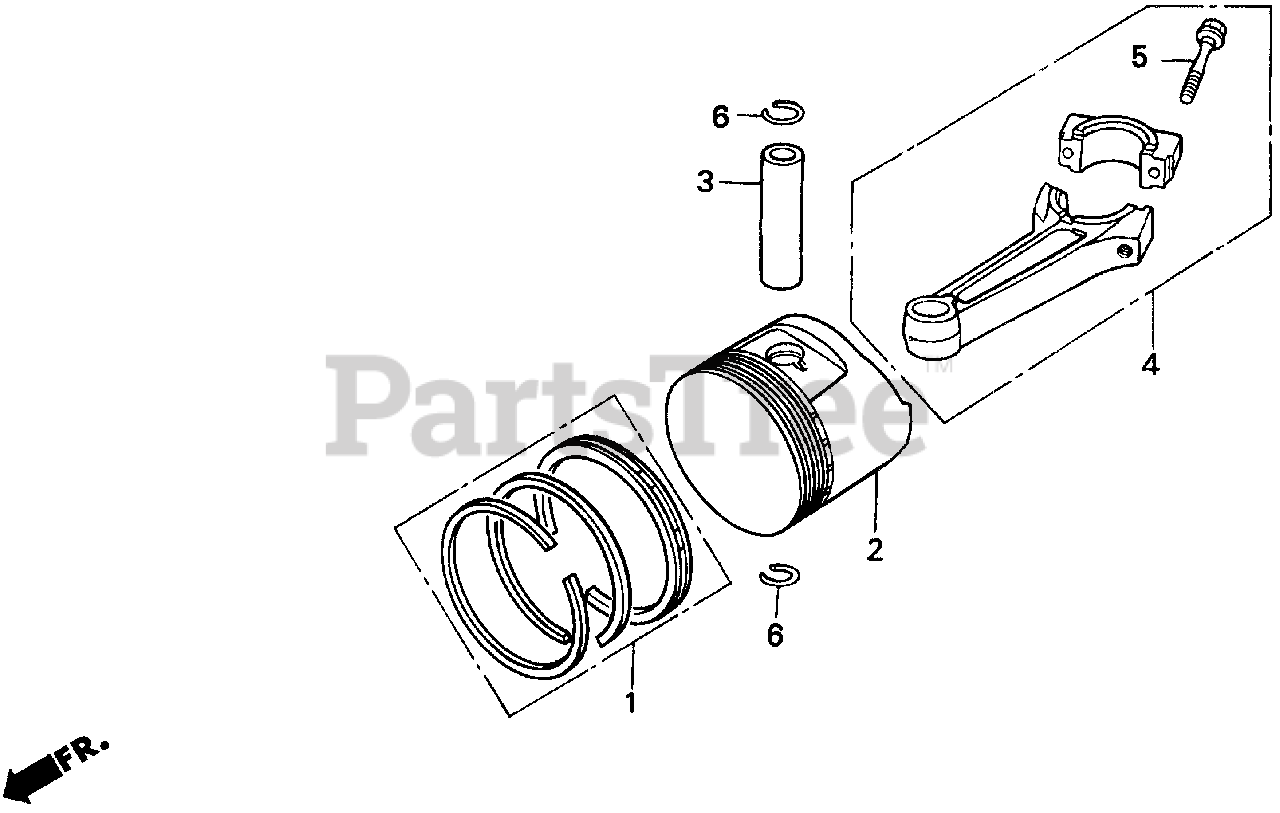

PISTON Parts Diagram

  • Title

1

Honda 13010-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

Note: (Honda Code 3134343).

$50.99

$

In Stock, Qty 5

0

1

Honda 13011-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

Note: (Optional). (Honda Code 3134368).

$81.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

Note: (Optional). (Honda Code 3134384).

$

$

Not available

1

Honda 13012-ZF6-005

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)

Note: (Optional). (Honda Code 3134392).

$79.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (NIPPON)

Note: (Optional). (Honda Code 3750759).

$81.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZF6-W00

PISTON (STD)

Note: (Honda Code 3713013).

$73.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZF6-W00

PISTON (OS 0.25)

Note: (Optional). (Honda Code 3713021).

$135.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZF6-W00

PISTON (OS 0.50)

Note: (Optional). (Honda Code 3713039).

$

$

Not available

2

Honda 13104-ZF6-W00

PISTON (0.75)

Note: (Optional). (Honda Code 3755204).

$

$

Not available

3

Honda 13111-ZF6-000

SEE PART DETAILS - PRI; PIN, PISTON

Note: (Honda Code 3134434).

$15.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE9-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-Z1E-000)

Note: (Honda Code 2879948).

$160.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE9-315

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (US 0.25)

Note: (Optional). (Honda Code 2953107).

$

$

Not available

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

Note: (Honda Code 2160489).

$4.99

$

In Stock, only 1 left!

0

6

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM)

Note: (Honda Code 2108579).

$2.49

$

In Stock, only 3 left!

0
