GXV390 K1 DNE3 (GJAA) - Honda Engine, Made in USA (SN: GJAA-6000001 - GJAA-9999999) STARTER MOTOR Parts Diagram

Engine, Made in USA

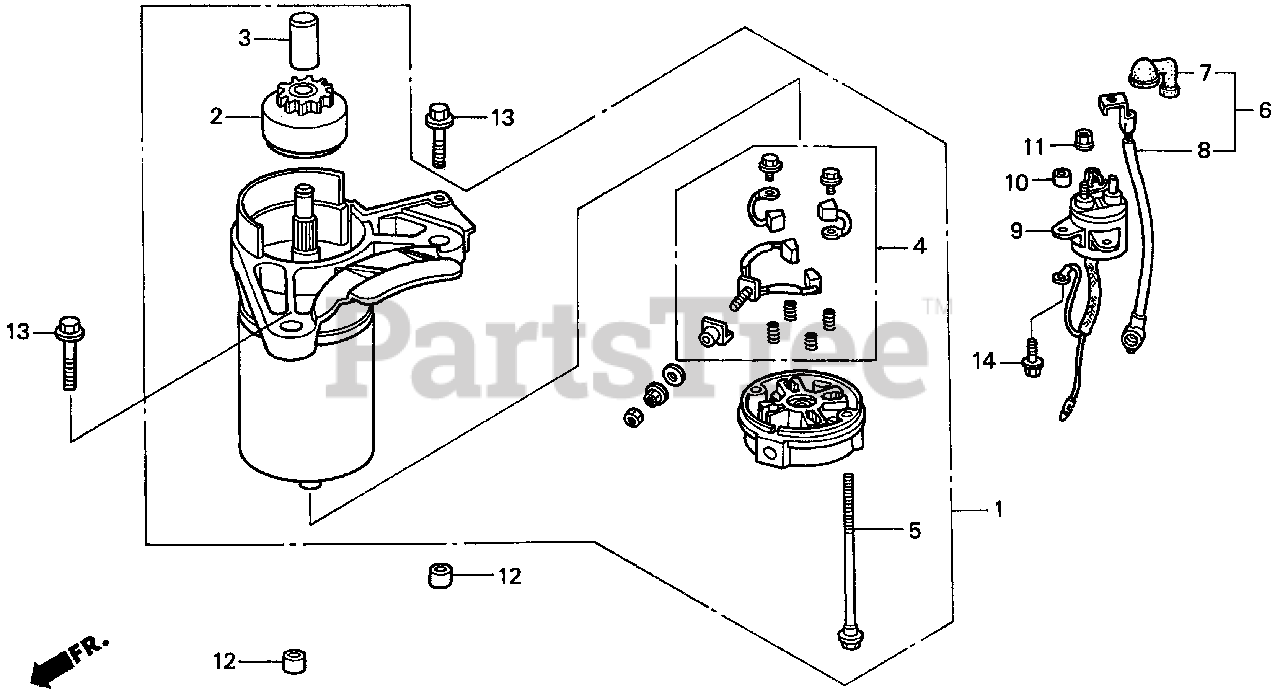

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31200-ZF5-L32

SEE PART DETAILS - PRI; MOTOR ASSY., STARTER

Note: (Honda Code 4982245).

$218.99

$

Usually ships in 3-6 days

0

2

Honda 31206-ZF5-L31

DRIVE ASSY.

Note: (Honda Code 4982252).

$126.99

$

Usually ships in 3-6 days

0

3

Honda 31225-ZF5-L31

STOPPER SET, PINION

Note: (Honda Code 4907309).

$83.99

$

Usually ships in 3-6 days

0

4

Honda 31226-ZJ1-004

SEE PART DETAILS - PRI; BRUSH SET
(Superseded to 31226-ZF5-L31)

Note: (Honda Code 4210142).

$23.99

$

Usually ships in 3-6 days

0

5

Honda 31261-ZJ1-004

BOLT, THROUGH

Note: (Honda Code 4210209).

$3.99

$

Usually ships in 3-6 days

0

6

Honda 32402-ZF5-V00

WIRE, MAGNET SWITCH

Note: (Honda Code 4949863).

$28.99

$

Usually ships in 3-6 days

0

7

Honda 32411-ZV4-811

COVER, STARTER TERMINAL

Note: (Honda Code 2797009).

$7.99

$

Usually ships in 3-6 days

0

8

Honda 32412-ZV4-811

COVER, MAGNETIC SWITCH TERMINAL

Note: (Honda Code 2797017).

$7.99

$

Usually ships in 3-6 days

0

9

Honda 35850-ZF5-V01

SWITCH ASSY., STARTER MAGNETIC

Note: (Honda Code 4949889).

$107.99

$

In Stock, only 1 left!

0

10

Honda 91504-ZF5-V00

COLLAR, DISTANCE

Note: (Honda Code 4949954).

$

$

Not available

11

Honda 94070-06080

NUT-WASHER (6MM)

Note: (Honda Code 0660795).

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94301-10120

PIN, DOWEL (10X12)

Note: (Honda Code 2028900).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

Note: (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0

14

Honda 96001-06025-00

BOLT, FLANGE (6X25)

Note: (Honda Code 2105989).

$2.99

$

Usually ships in 3-6 days

0
