GXV390 K1 DEP3 (GEAD) - Honda Engine, Made in USA (SN: GEAD-6000001 - GEAD-9999999) RECOIL STARTER Parts Diagram

Engine, Made in USA

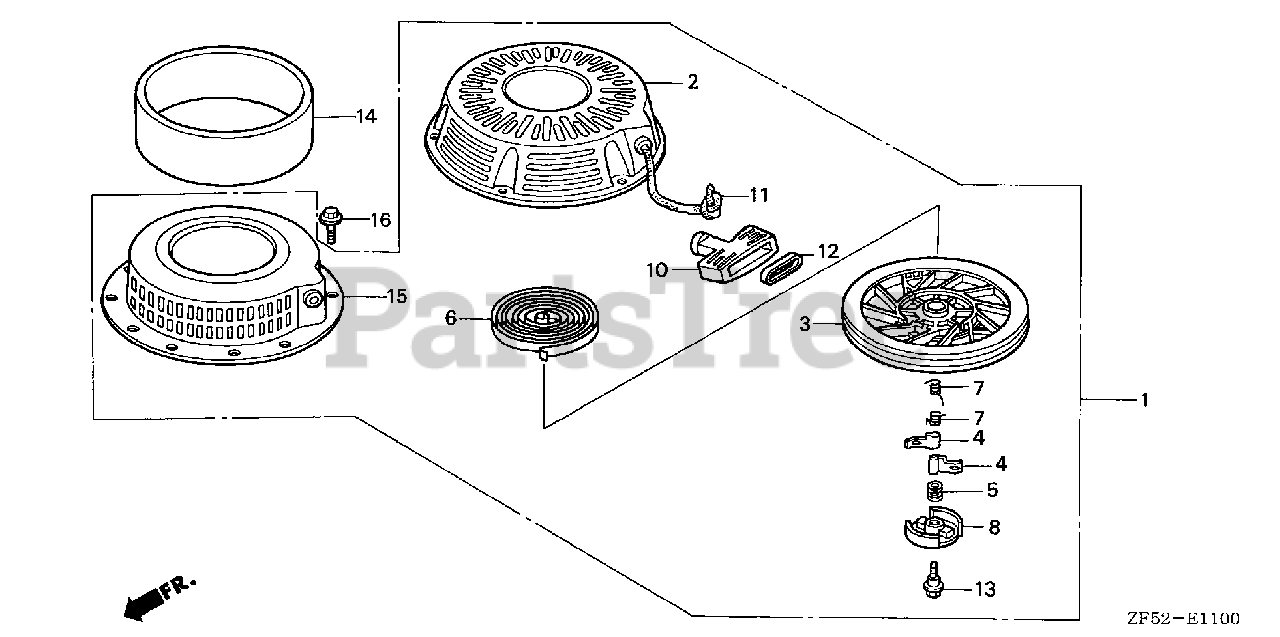

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE8-821ZC

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-ZE8-822ZC)

$123.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE8-821

PULLEY, RECOIL STARTER

$48.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$18.99

$

Usually ships in 3-6 days

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

$7.99

$

Usually ships in 3-6 days

0

11

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER

$12.99

$

In Stock, only 2 left!

0

12

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT

$6.99

$

In Stock, only 1 left!

0

13

Honda 90004-ZE2-W01

SCREW, CENTER

$4.49

$

In Stock, Qty 10

0

14

Honda 17219-ZE8-900

FILTER, AIR

$12.99

$

In Stock, only 2 left!

0

15

Honda 28410-ZE8-821ZC

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

$167.99

$

Usually ships in 3-6 days

0

16

Honda 96001-06010-00

BOLT, FLANGE (6X10)

$2.49

$

Usually ships in 3-6 days

0
